Digitus DS-11110 User Manual

KVM
SWITCH
(DS-13110)
(DS-13111)
USER MANUAL
DS-11110 / DS-12110
DS-11310 / DS-12310
DS-13110 / DS-13111
Package Contents –

1 KVM Switch

1 User Manual

1 DC 9V 300mA power adapter (DS-11310,
DS-12310, DS-13110, DS-13111)
Please contact your vendor if anything is missed.
Features

Controls PCs with one PS/2 keyboard, PS/2 mouse and
monitor respectively

Supports the standard PS/2 mouse, Microsoft IntelliMouse
(PS/2 compatible/Optical/Explorer 3.0), WheelMouse
Optical, Trackball (Optical 1.0/Explorer 1.0) & Logitech
TrackMan (Marble/Marble FX/ Marble+), Cordless
MouseMan (Wheel/Optical), Cordless TrackMan (FX/Live)
mouse, Cordless Optical TrackMan, MX300 Optical mouse.
MX300 Optical mouse

Fully supports the Microsoft IntelliPoint 5.0 mouse driver &
Logitech Mouse Ware driver

Supports the Window 95/98/98SE/Me/NT4.0/2000/XP, DOS,
Linux, Novell Netware, FreeBSD

Superior video quality - Up to 1920 x 1440, DDC, DDC2,
DDC2B, DDC2AB, 200MHz

Supports selecting PC by mouse clicking

Real mouse identification function

3 ways for PC selection -- Push-button switch, hot key or
mouse clicking

Easy to install--No software required

Hot Pluggable

Integral keyboard and mouse emulation for PC booting error
free

Auto scan function to monitor PCs

Auto skips over the power-off PC

Beep sound and multi selection ways on/off option for port
selection

Supports speaker & microphone (DS-11310 and DS-12310)

1U rack design (DS-13110 and DS-13111)
V1.0
Hardware Requirements
One highest resolution VGA, SVGA or Multisync monitor
Console One PS/2 mouse
One PS/2 keyboard
One VGA, SVGA or Multisync card
PC One 6-pin mini-DIN (PS/2) mouse port
One 6-pin mini-DIN (PS/2) keyboard port
Cable KVM switch custom cables or equivalent
Required specifications
-1-
Appearance
Front View

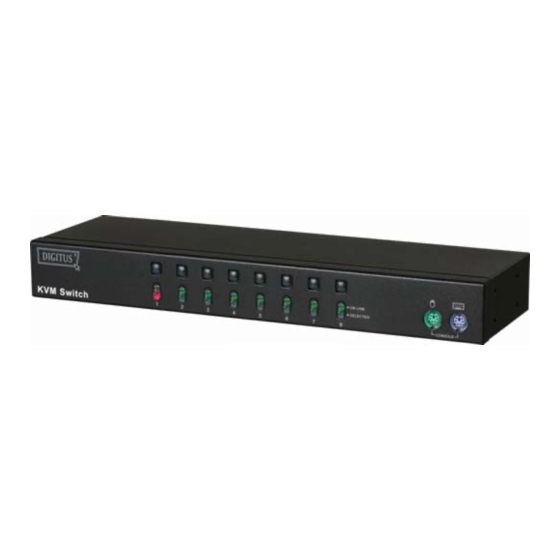

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Keyboard and Mouse Ports
Rear View
1. Console Monitor Connector
2. CPU Port Connectors
-2-
