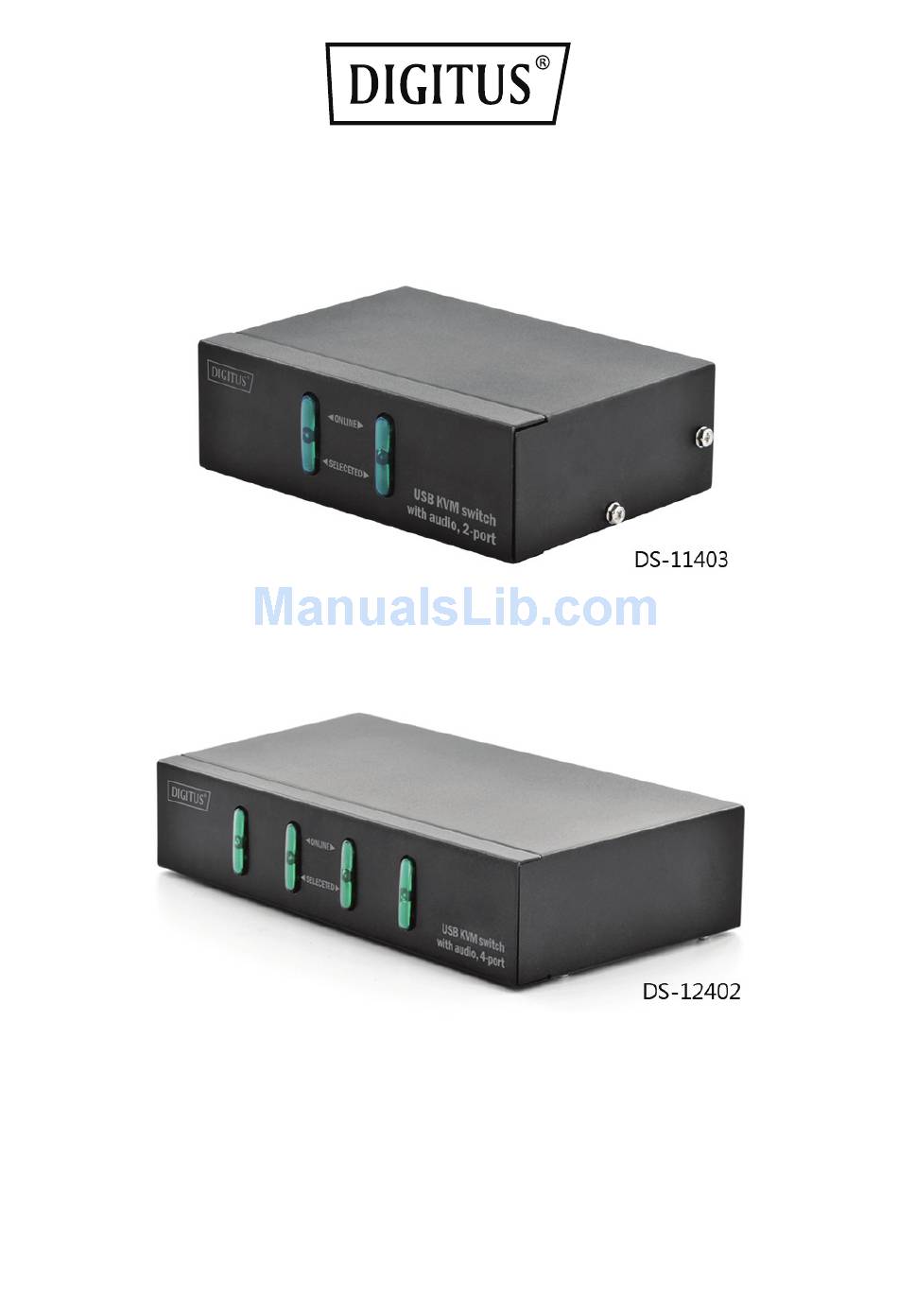

- Page 1 USB KVM Switch USB KVM switch with audio, 2-Port USB KVM switch with audio, 4-Port Manual DS-11403 (2-Port) • DS-12402 (4-Port)
-
Page 2: Packing List
Consult the dealer or an experienced radio/television technician for help. PACKING LIST The complete DS-11403 (2 ports) / DS-12402 (4 ports) USB package consists of: USB KVM switch KVM connection cable 2 pcs (DS-11403) or 4 pcs (DS-12402) ... - Page 3 They allow users to access and control up to 2 (DS-11403) or 4 (DS-12402) computers via a single USB keyboard, USB mouse, and VGA monitor. The setup is easy and there is no software to configure. Simply plug and play.
- Page 4 INSTALLATION All the connectors are on the rear panel. The rear panel is shown as following: DS-11403 DS-12402 Mouse interface Keyboard interface Monitor interface Speaker interface Host signal interface Microphone interfacep Before installing, please make sure that all the devices are power off, and then do the following: 1.
- Page 5 Panel Control KVM switching and port status indication can be done on the front panel. The front panel is shown as following: DS-11403 DS-12402 Buttons on panel are selection buttons. Just press one button and then you can select the corresponding port.
-
Page 6: Specifications
SPECIFICATIONS Type DS-11403 DS-12402 Computer connections Computer port selection Front panel switches/Hot key Console Keyboard 1 x USB female connector Mouse 1 x USB female Video 1 x HDB-15 female Speaker 1 x 3.5mm (Green) Mic. 1 x 3.5mm (Pink) - Page 7 SAFE GUIDE Please follow the directions below when installing, using and maintaining the device in order to guarantee the normal operation of the device. When installing and operating the device, please make sure all devices are powered on, and then do other operations after it is initialized.
