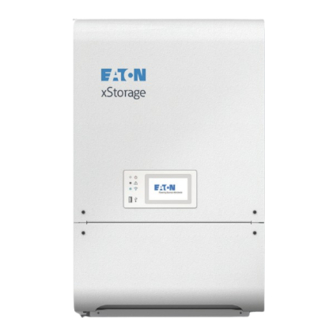

xStorage Home 3P energy storage system
xStorage Home 3P
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xStorage Home 3P and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton xStorage Home 3P

Summary of Contents for Eaton xStorage Home 3P

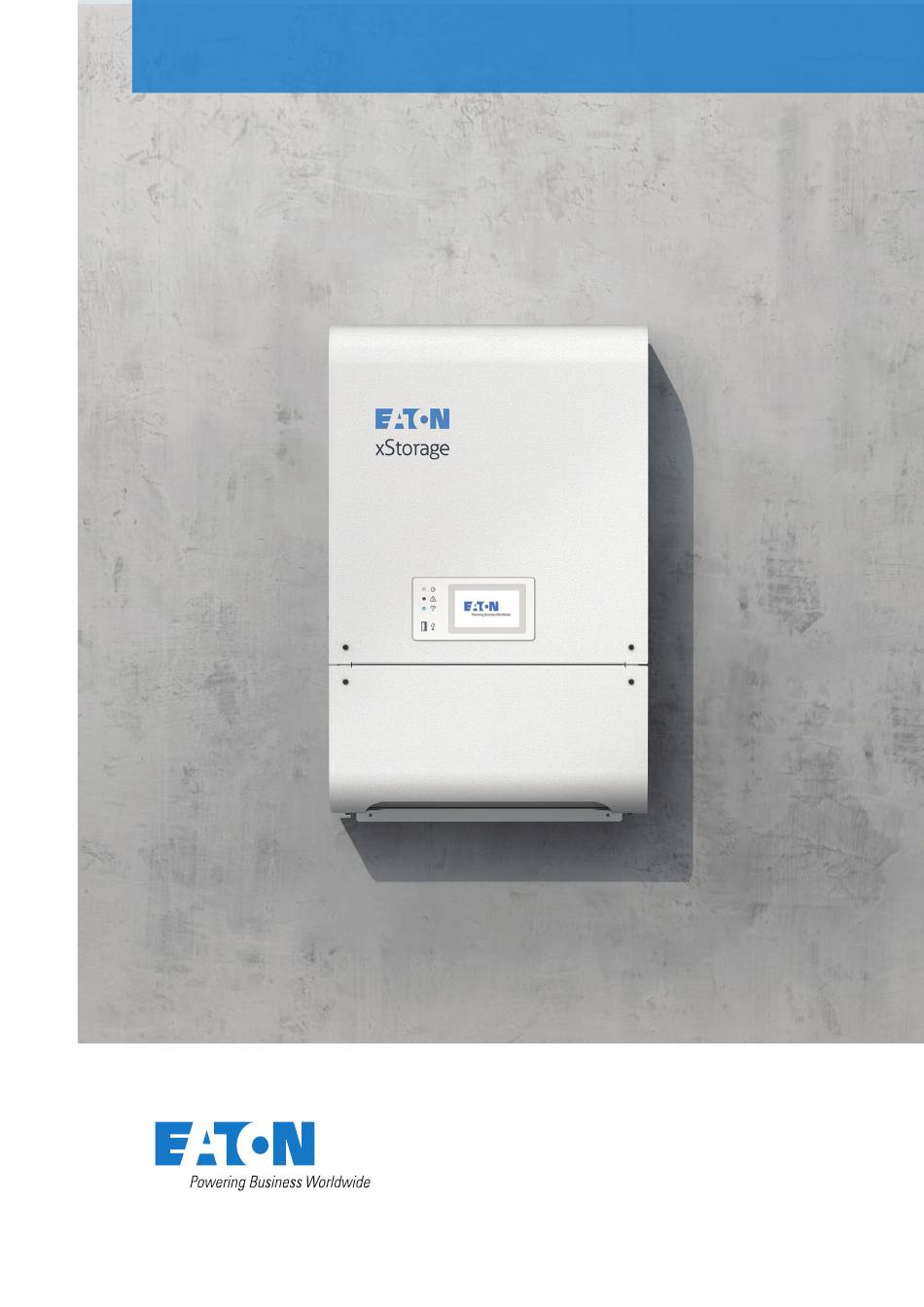

  • Page 1 Home 3P energy storage system xStorage Home 3P User manual...

  • Page 2: Table Of Contents

    9.1 General information ............................51 9.2 Disposal ................................51 TROUBLESHOOTING ..........................52 TECHNICAL DATA ..........................57 9.1 Rating plate ..............................57 9.2 Technical datasheet ............................57 CONTACT SUPPORT INFORMATION ....................57 WARRANTY ............................57 XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...

  • Page 3: Introduction

    Home 3P system. All instructions must be read before installing and operating the equipment. This manual should be retained for future reference. Please note that the xStorage Home 3P system must only be installed by Eaton certified personnel, i.e. an Eaton technical support representative or an Eaton certified installer. There are no user serviceable parts inside the xStorage Home 3P system.

  • Page 4: Field Of Applications

    Read the instructions. These instructions are intended for Eaton certified installers. The Eaton certified installer must be an expert in the field and must therefore be responsible for commissioning the system according to the manufacturer’s instructions and local legislation.

  • Page 5: Conventions Used In This Document

    1.3 Conventions used in this document This manual adopts the following type conventions and acronyms to refer to Eaton xStorage Home system or its parts: Screen type represents information that appears on the screen or LCD display (used to indicate screen content inside the text).

  • Page 6: Figures And Specifications

    Figure 1. Simplified xStorage Home 3P system installation xStorage Description PV1 string PV2 string Battery Emergency power supply (EPS) Interlock system Privileged loads or critical loads Public grid Energy meter Home loads or non-critical loads XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 7 Figure 2. Network connection illustration xStorage Description Wi-Fi dongle Router Cloud XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 8 Figure 3. Rating plates on xStorage Home 3P Description Rating plate location Rating plate example XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 9 Max output fault current 25 A Efficiency Maximum efficiency 97.6 % Weighted efficiency (Euro) 97 % Battery typical efficiency 96 % Protective devices DC polarity reversal As standard XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 10 Yes, with Printed Circuit Board (PCB) 1 dry contact 4 A 250 Vac (*) The specified range may vary according to the connection standards in place in the country of installation. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...

  • Page 11: Cautions

    Operating range limits: The xStorage Home 3P system can only be used with photovoltaic modules that do not require the earthing of one of the poles. xStorage Home 3P can only be used with photovoltaic modules that meet the specific requirements of class A in accordance with the indications of the IEC 61730 standard.

  • Page 12: Protection From Electric Shock

    106 kPa. The xStorage Home 3P system must be used at a maximum altitude above sea level of 3000 m (9750 feet). For altitudes above 2000 m, due to the rarefaction of the air, specific conditions may occur which must be considered when choosing the place of installation.

  • Page 13: General Description

    4.1 xStorage Home 3P high voltage hybrid inverter The xStorage Home 3P High Voltage (HV) hybrid inverter (see Figure 1) is a DC - AC solar inverter, designed for use in indoor environments. It has been designed to be used in combination with PV panels and connected to the electricity grid and a high voltage (HV) storage battery to optimize self-consumption.
  • Page 14 This operating mode is mainly indicated in installations where local regulations require a limitation on the energy that is injected in to the grid. Figure 6. Eaton xStorage Home 3P feed in control mode during the day xStorage 1. Pmax In the presence of sunshine, the energy from the photovoltaic system is used primarily to supply the domestic loads and secondly to charge the battery.
  • Page 15 Figure 8. Eaton xStorage Home 3P battery manager mode during the day xStorage In the presence of sunshine, the energy from the photovoltaic system is used primarily to supply the domestic loads and secondly to charge the battery starting from the set charge start time.
  • Page 16 The total power of the loads connected to the EPS output must be within the range specified in the technical data. If the total load is higher, the xStorage Home 3P will enter in protection mode, disabling the output power and signaling the overload event.

  • Page 17: Hv Lithium-Ion Battery

    Based on the state of health of the battery and to get an accurate and reliable state of charge (SoC) indication, the control module integrated in the battery (BMS) cyclically requests the xStorage Home 3P hybrid inverter to carry out a calibration and to charge up to 100 %.

  • Page 18: Touch-Screen Control Panel

    WARNING: The maintenance charge is a safety function of the battery to avoid damages. For this reason, the xStorage Home 3P hybrid inverter can activate grid charging if the available photovoltaic energy is not enough.

  • Page 19: Electrical Connections

    3P system is high enough to allow a stable connection. For this purpose, during the configuration of the network parameters, the scanning and selection of the Wi-Fi network carried out by the xStorage Home 3P reports the signal strength of the wireless network to which you intend to connect: select a network with signal strength S >...

  • Page 20: Control Panel

    LED off: the xStorage Home 3P is not powered. • 2. General alarm LED on: the xStorage Home 3P has detected a fault. The LCD display activates the corresponding alarm • icon and shows the information related to the alarm occurred on the status bar (See the “Troubleshooting”...

  • Page 21: Ip Protection Class Rating

    “GENERAL ALARM” icon “USB/Wi-Fi” icon The dashboard screen displays and analyzes in real time all parts of the xStorage Home 3P system. All the power sources supplied to meet the demand of the domestic needs and their operating parameters are constantly monitored and displayed in real time.
  • Page 22 “GENERAL ALARM” icon. If this icon is on, the system has detected a fault. The code of the alarm detected by the system is displayed on the system status bar. Please refer to the troubleshooting section of xStorage Home 3P installation manual.

  • Page 23: System Programming

    Many of the information and settings available from the menu are relevant for maintenance, diagnostics and installation. Due to continuous improvement it is possible that changes will be implemented in the future. Figure 14. The overall structure of the menu available from the xStorage Home 3P display CHARTS...

  • Page 24: Main Menu

    7.2 Main menu Figure 15. The main menu page from the xStorage Home 3P display The main menu is composed by: Number Description “DASHBOARD” key. By pressing this key, the dashboard screen is displayed. “BACK” key. By pressing this key, the previous page is reloaded.

  • Page 25: Login/Logout Menu

    Figure 16. Login page for Eaton certified installers available from the xStorage Home 3P display The login page for Eaton certified installers that provides access to advanced installer settings, is composed by: Number Description Numeric keypad to enter the ID password.

  • Page 26: Charts Menu

    7.4 Charts menu The charts menu enables the Eaton certified installer and end-users to access the data stored in the local memory and user interface. The information and settings available from the menu are also relevant for maintenance and diagnostics.
  • Page 27 “24h” Chart Figure 18. Day chart from the xStorage Home 3P display The 24 hours chart available from the xStorage Home 3P display is composed by: Number Description “CHART SELECTION” key. Press this key to select the different charts (24 hours 7 days 12 months).
  • Page 28 “12m” Chart Figure 20. Year chart from the xStorage Home 3P display The 12 months chart available from the xStorage Home 3P display is composed by: Number Description “CHART SELECTION” key. Press this key to select the different charts (24 hours 7 days 12 months).

  • Page 29: Info Menu

    7.5 Info menu The “INFO” menu provides access to general information about the xStorage Home 3P. The data available from the menu are relevant for maintenance and diagnostics. Due to continuous improvement it is possible that changes will be implemented in the future.
  • Page 30 SSID Wi-Fi network ID accessed by the inverter IP Address IP address assigned to the inverter within the local network WLAN Netmask Network Subnet mask Gateway Network Gateway XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...

  • Page 31: Export Menu

    Connect the external USB memory stick before performing the export procedure. The external USB memory stick must be large enough and must have at least 128 Mb of free space. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...

  • Page 32: Setting Menu

    7.7 Setting menu The “SETTINGS” menu provides access to all settings relevant to the installation of the xStorage Home 3P. The data and and settings available from the menu are relevant for maintenance and installation. Due to continuous improvement it is possible that changes will be implemented in the future.
  • Page 33 7.7.1 General menu The “GENERAL ” settings menu provides access to all settings relevant to the installation of the xStorage Home 3P . Figure 24. The structure of the general settings menu page Italian English Date/Time French Language German Dutch...
  • Page 34 Feed-In Control P Limit Please refer to the xStorage Home 3P installation manual for the electrical connections and wiring. Please note that Figure 25 is only an example and it does not represent the current status of the menu. New functionalities will be added in the future.
  • Page 35 12. “FEED-IN CONTROL”. This page allows to enable / disable the FEED-IN CONTROL mode to limit the injection of the energy produced into the network and to set the limit value. Please refer to the xStorage Home 3P installation manual for further details.
  • Page 36 LD - Day LD - Start Time HOME AUTOMATION LD - StopTime Battery Manager Sel. Batt. Disch. -Start Time Battery Manager Batt. Disch. -Stop Time Batt. Ch. -Start Time XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 37 “SMART LD” . This page enables to set the SMART LOAD operating mode for the load controlled by the isolated change over contact (4 A – 250 Vac max) available in the xStorage Home 3P . Through contact, it is possible to enable secondary storage systems and / or domestic loads based on the status and energy balance of the system.
  • Page 38 The “BATTERY” menu enables to configure the type, the brand and the model of the lithium-ion battery among those supported by the xStorage Home 3P system. Also, it allows to perform further settings of the usage parameters. Those settings are only accessible through the “INSTALLER” profile which requires a password to be logged in.
  • Page 39 To ensure optimal Wi-Fi connectivity, make sure that the Wi-Fi signal available near the installation of the xStorage Home 3P system is high enough to allow a stable connection. For this purpose, during the configuration of the network parameters, the scanning and selection of the Wi-Fi network carried out by the xStorage Home 3P reports the signal strength of the wireless network to which the end user intends to connect.
  • Page 40 See the “LOGIN” menu section. WARNING – The settings of the GRID CODE can be accessed only by Eaton certified installers. Changing the parameters using the installer profile and not being an Eaton certified installer can affect the correct functioning of the system and relieves the manufacturer from all liabilities and invalidates the warranty and/or guarantee.

  • Page 41: System Update

    STAND-BY mode. Make sure you have connected an external USB memory stick where the “ xStorage Home 3P “ update file has been uploaded. The external USB memory stick must be large enough and must have at least 128 Mb of free space.

  • Page 42: Monitoring System

    Registered xStorage Home 3P systems send operating data at regular intervals which are collected and organized by the local user interface and the Eaton cloud portal in order to provide system status in a simple and immediate way.
  • Page 43 Wait for the connection to be established: blue LED (3) on and icon highlighted on the screen (5). The xStorage Home 3P system is now connected to the Wi-Fi network of the selected router. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 44 MENU  SETTINGS  NETWORKING  WLAN  NETWORK MENU  SETTINGS  NETWORKING  LAN  NETWORK Figure 31. The IP network settings available from the display of xStorage Home 3P The next sessions detail how to configure the static or DHCP address.
  • Page 45 This functionality can be helpful if there is a need to make direct remote access to the xStorage Home 3P system by using a smartphone / tablet / PC device from a browser and the selected IP address.

  • Page 46: Eaton Web Portal Access

    Registered xStorage Home 3P systems send operating data at regular intervals which are collected and organized by the local user interface and the Eaton cloud portal in order to provide system status in a simple and immediate way. You can access the web portal at https://xstoragehome3p.eaton.com...
  • Page 47 (see Figure 34). Otherwise, you will need to create a new user account. To create an account, proceed according the following steps: Access the Eaton web portal via a smartphone, tablet, or personal computer (PC) by pointing your browser to: https://xstoragehome3p.eaton.com/login Figure 34.
  • Page 48 If you cannot find the activation message from the xStorage Home portal in your Inbox, check the Spam/ Junk/Trash folders in your email client, as some clients consider automated messages spam. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 49 In case you have forgotten your password, you can reset it by clicking the “Forgot Password” hyperlink. If you navigate away from the login page, you can always access it from your browser at: https://xstoragehome3p.eaton.com/login XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 50 Click the LOGIN button to log in to the xStorage Home 3P portal. The portal displays the home page with the main menu, from where you can monitor various parameters of the plant and connected devices. Figure 38. xStorage Home 3P portal...

  • Page 51: Maintenance

    If the operator does not comply with what is described, the manufacturer declines all responsibility. 9.2 Disposal When the xStorage Home system reaches the end of its service life, the end user should contact an Eaton certified installer for disposal instructions.

  • Page 52: Troubleshooting

    10. Troubleshooting This section contains information and procedures for solving possible problems with xStorage Home 3P inverters. Check the warnings or error messages on the system control panel or the error codes on the inverter information panel and act as indicated in Table 4.
  • Page 53 If the direct current fed into the grid it is within the allowed range, but the alarm persists, contact the technical support service. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 54 Converter control system fault. Switch off and restart the system. Refer to the sections “System switching off” and “System switching on” Should the problem persist, contact our technical support service. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 55 Possible damage to the battery charger stage. Switch off and restart the system. Refer to the sections “System switching off” and “System switching on” Should the problem persist, contact our technical support service. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 56 Check the battery voltage and make sure it is within the limits allowed for operation. Refer to the section “Electrical connections”. If the problem persists, contact the technical support service. XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...

  • Page 57: Technical Data

    The latest version of the technical datasheet is available for download from the web page www.eaton.com/xstoragehome3p. Power derating In order to allow the xStorage Home 3P system to operate in both thermal and electrical safety conditions, the unit automatically reduces the value of the managed power.
  • Page 58 XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 59 XSTORAGE HOME 3P ENERGY STORAGE SYSTEM USER MANUAL MN700011EN May 2023 www.eaton.com...
  • Page 60 Eaton Eaton Industries Manufacturing GmbH Place de la Gare 2 1345 Le Lieu, Switzerland eaton.com/xstoragehome3p © 2023 Eaton Eaton is a registered trademark. All Rights Reserved Publication No. MN700011EN All other trademarks are property May 2023 of their respective owners.
