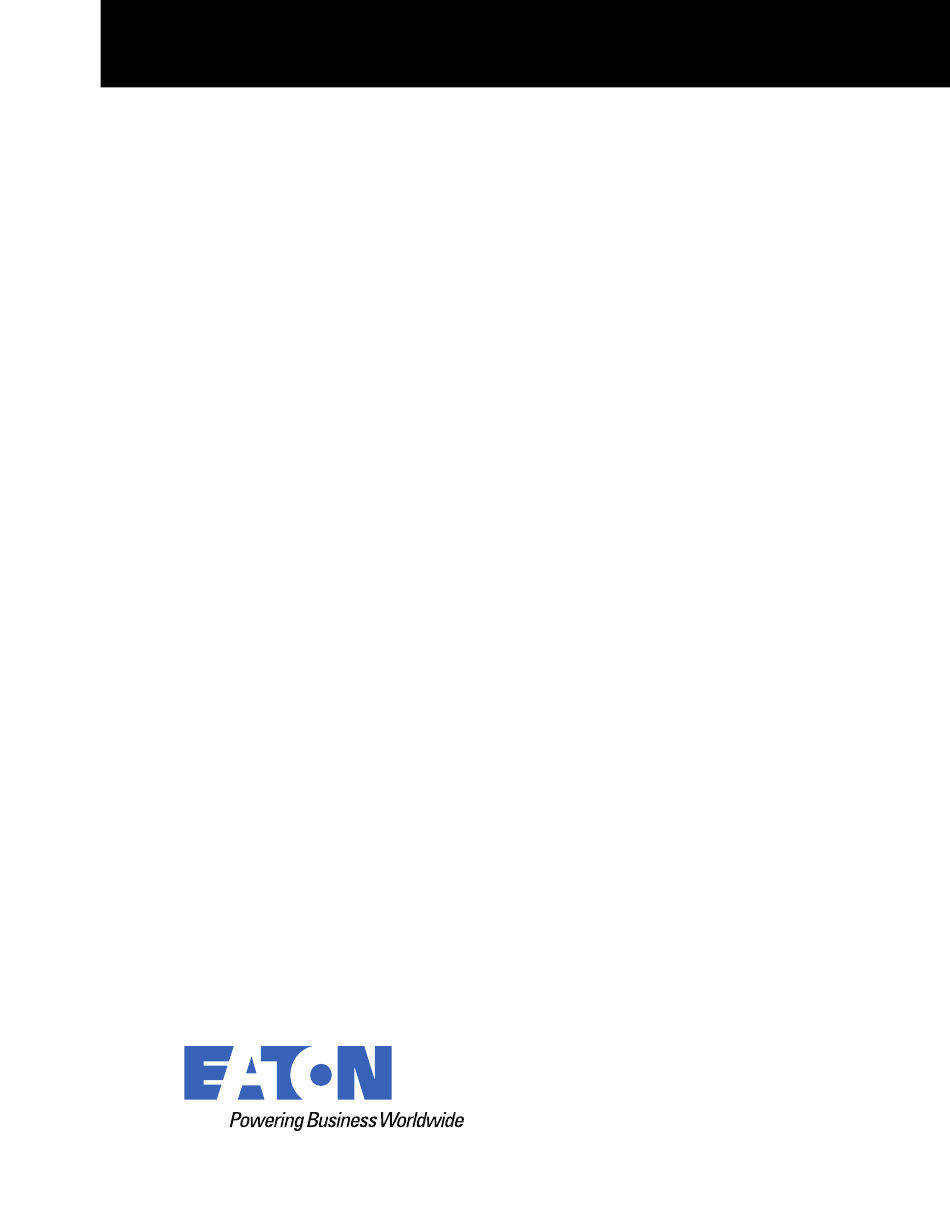

Eaton
xStorage 400
® ®
400 kW Battery Energy Storage System
Installation and Operation Manual
p/n: P-164001032
Revision 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xStorage 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eaton xStorage 400

Summary of Contents for Eaton xStorage 400

  • Page 1 Eaton xStorage 400 ® ® 400 kW Battery Energy Storage System Installation and Operation Manual p/n: P-164001032 Revision 01...
  • Page 2 Hilti AG, Schaan. All other trademarks are property of their respective companies. ©Copyright 2022 Eaton, Raleigh, NC, USA. All rights reserved. No part of this document may be reproduced in any way without the express written approval of Eaton.

  • Page 3: Table Of Contents

    4 4 I I n n s s t t a a l l l l a a t t i i o o n n ..........................................................2 2 3 3 4.1 Preliminary Installation Information....................... 23 4.2 Unloading and Placement of the Eaton xStorage 400..................23 4.3 Battery System Installation ......................... 26 4.4 Two-Hole Barrel Lug Terminations to Bus Bar Installation..................
  • Page 4 10.6 Battery Characteristics ..........................60 10.7 Eaton Corporation End User License Agreement for the xStorage 400 ............... 61 1 1 1 1 W W a a r r r r a a n n t t y y ............................................................7 7 5 5 11.1 Warranty ...............................
  • Page 5 Table of Contents 12.1 Battery Safety Data Sheets ........................77 Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 6 Table of Contents Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 7 400 Clearances — Right Side View..................14 Figure 9. xStorage 400 Center of Gravity —Front View ..................15 Figure 10. xStorage 400 Center of Gravity — Right Side View ................16 Figure 11. xStorage 400 Center of Gravity — Top View..................17 Figure 12.
  • Page 8 List of Figures viii Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 9 Table 6. Control and Monitoring Panel Interface Wiring ..................32 Table 7. Device Communication Protocol Detail....................51 Table 8. Demand Response Configurable Options ................... 52 Table 9. Maintenance Schedule ........................57 Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 10 List of Tables Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 11 The xStorage 400 is protected by a weathertight cabinet. The cabinet has been tested to IP24 standards as part of its UL listing and is designed to meet 3R requirements. Constructed primarily of aluminum, the cabinet is designed for corrosion resistance.

  • Page 12: System Description

    This section also contains control and monitoring hardware to connect to Eaton’s PredictPulse dashboard and provide energy service control. 1 1 . . 1 1 . . 2 2 B B a a t t t t e e r r y y S S y y s s t t e e m m Electrical energy storage is provided by the Samsung ®...

  • Page 13: Using This Manual

    Hydrogen gas can ignite if allowed to build to the lower flammability limit. To preclude this, the xStorage 400 is equipped with a hydrogen venting system that continuously monitors the cabinet atmosphere for hydrogen concentration. If hydrogen is detected, the xStorage 400 will automatically shut down and the two dampers will open to ventilate the enclosure.

  • Page 14: Symbols, Controls, And Indicators

    Special Symbols electric shock symbol. The following are examples of symbols used on the xStorage 400 or accessories to alert you to important The following are examples of symbols used on the UPS or accessories to alert you to important...
  • Page 15 Eaton xStorage 400 system. Read all instructions before operating the equipment and save this manual for future reference. The Eaton xStorage 400 system is designed for outdoor usage, and contains safety shields behind the door and front panels. However, the system is a sophisticated power system and should be handled with appropriate care.

  • Page 16: Safety Warnings

    • Observe all DANGER, CAUTION, and WARNING notices affixed to the inside and outside of the equipment. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 17 The xStorage 400 shall not be installed in a location where it is exposed to floodwater. • The xStorage 400 shall not be installed in a location where it is exposed to saltwater spray or marine environment. 3 3 . . 2 2 . . 2 2 I I n n s s t t a a l l l l a a t t i i o o n n C C o o n n s s i i d d e e r r a a t t i i o o n n s s The xStorage 400 must be installed on a level concrete pad suitable for the weight of the system.

  • Page 18: Preparing The Site

    Preparing the Site Figure 2. xStorage 400 Cabinet Dimensions (Front View) 3132.5 [123.33] 2524.8 [99.40] 2390.8 [94.12] 849.3 [33.44] 45.4 [1.79] (2X) 537.8 [21.17] 1744.0 [68.66] 1427.8 [56.21] Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 19 Preparing the Site Figure 3. xStorage 400 Cabinet Dimensions (Right Side View) FRONT REAR 3132.5 [123.33] 2555.0 [100.59] 203.2 [8.00] 135.8 [5.35] 601.0 [23.66] 415.0 [16.34] 1702.5 [67.03] Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 20 Preparing the Site Figure 4. xStorage 400 Cabinet Dimensions (Top View) REAR 3432.0 [135.12] 659.3 [25.96] 664.2 [26.15] 1315.1 [51.77] 1705.0 [67.12] 2606.6 [102.62] FRONT Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 21 1244.6 [49.00] 775.4 [30.53] (2X) (2X) FLOOR MOUNT 334.8 [13.18] LOCATION (8X) (2X) CONDUIT LANDING 1016.0 [40.00] (2X) 413.7 [16.29] 654.6 [25.77] 2073.5 [81.63] 1061.5 [41.79] REAR Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 22 Preparing the Site The xStorage 400 uses forced air cooling to regulate inverter internal temperature. Air inlets are in the front of the cabinet and outlets are in the top. Allow clearance in front of and above each cabinet for proper air circulation.
  • Page 23 Figure 7. xStorage 400 Clearances — Front View 304.8 [12.00] EXHAUST PLENUM EXHAUST CLEARANCE 163.9 [6.45] FILTERED AIR INLETS (8X) UPPER GAS VENTILATION LOWER GAS VENTILATION 1193.8 [47.00] 406.4 [16.00] 838.2 [33.00] Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 24 EXHAUST PLENUM CLEARANCE 520.3 [20.48] FRONT REAR 2593.4 [102.10] Dimensions are in millimeters [inches] Figure Figure 10, and Figure 11 detail the Eaton xStorage 400 kW cabinet’s center of gravity measurements. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 25 Preparing the Site Figure 9. xStorage 400 Center of Gravity —Front View FRONT VIEW 1248.3 [49.14] FLOOR MOUNT LOCATION 1/2-13 RIVNUT TYP. 50.8 [2.00] 50.8 [2.00] 50.8 [2.00] 132.1 [5.20] 132.1 [5.20] 1536.7 [60.50] Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 26 Preparing the Site Figure 10. xStorage 400 Center of Gravity — Right Side View FRONT REAR 1248.3 [49.14] 800.1 [31.50] 865.9 [34.09] 901.7 [35.50] Dimensions are in millimeters [inches] Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 27 Preparing the Site Figure 11. xStorage 400 Center of Gravity — Top View TOP VIEW 865.9 [34.09] 1536.7 [60.50] Dimensions are in millimeters [inches] 3 3 . . 2 2 . . 2 2 . . 1 1 S S y y s s t t e e m m A A n n c c h h o o r r i i n n g g P P r r e e p p a a r r a a t t i i o o n n •...
  • Page 28 Preparing the Site Figure 12. xStorage 400 Floor Anchoring — Concrete Pad Installation NOTE: 7 ANCHOR POINT INSTALLATION SHOWN REAR OF UNIT 12 7/16” EQUIPMENT OUTLINE 67 1/8” 40” 7 3/4” x 3 3/4” MIN. EFF. EMBED. HILTI KB-TZ2 W/ 4 3/4” MIN. HOLE DEPTH &...
  • Page 29 Wye source) for proper equipment operation. The Eaton xStorage 400 unit is designed for operation on a grounded-wye source of supply. There is no additional connection point for a neutral conductor. The output of the xStorage 400 will not directly support phase to neutral loads.
  • Page 30 • All interface wiring and conduit is to be supplied by the installer. • When installing external interface wiring to the xStorage 400 interface terminals, weatherproof conduit must be installed between each device and the xStorage 400 enclosure. • Install the interface wiring in separate weatherproof conduit from the power wiring.
  • Page 31 Inspect the contents for any evidence of physical damage, and compare each item with the Bill of Lading. If damage has occurred or shortages are evident, contact an Eaton service representative immediately to determine the extent of the damage and its impact on further installation.
  • Page 32 Inspecting and Unpacking Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 33 Crane may be used to locate unit onto the concrete pad ONLY if a sling system is implemented on forklift points. To prevent damage to the xStorage 400 base when lifting or moving the cabinet: • Verify that the forklift forks are in a horizontal position before inserting them into the forklift slots.

  • Page 34: 3.2.2.1 System Anchoring Preparation

    Ensure the exposed conduit location is in the proper location relative to the conduit opening in the bottom of the xStorage 400. If the conduit is installed in the incorrect location, the power cabling can be rerouted and installed using a side entrance kit.
  • Page 35 Unloading and Placement of the Eaton xStorage 400 Figure 14. Forklift Opening Cover Plate Installation Lock Washer (4x) 10/32 5/8” Torx Screw (4x) Floor Anchor Location Forklift Opening Cover Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 36: Battery System Installation

    A battery lift must be used when maneuvering batteries into and out of the xStorage 400 cabinet. The batteries used in the xStorage 400 weigh more than 100 lbs. Serious injury will result if a battery lift system is not used.

  • Page 37: Two-Hole Barrel Lug Terminations To Bus Bar Installation

    Figure 15. Typical Bus Bar Barrel Lug Mounting – Hardware Assembly Sequence Bolt Head Conical Washer Flat Washer Bus Bar Threaded Clinch Nut Single Lug Installation Bolt Head Conical Washer Flat Washer Bus Bar Threaded Clinch Nut Double Lug Installation Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 38: External Ac Power Wiring Installation

    Carefully, remove the panel from the system. Retain the hardware for later use. Figure 16 for panel location. Figure 16. xStorage Dead Front Location Power Terminal Dead Front Panel Note: xStorage 400 shown without doors to show detail. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 39 Ground Terminals Note: xStorage 400 shown without doors to show detail. Ground the xStorage 400 according to local and/or national electrical wiring codes by routing and connecting the ground wire to the input ground lug. Figure 17 for ground terminal location.

  • Page 40: Installing Interface Wiring Connections

    For a detailed view of the AC terminals, see Figure Figure 18. AC Power Terminal Detail Phase C - (E11) Phase B - (E10) Phase A - (E9) Proceed to paragraph 4.6 Installing Interface Wiring Connections. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 41 I I n n s s t t a a l l l l i i n n g g I I n n t t e e r r f f a a c c e e W W i i r r i i n n g g C C o o n n n n e e c c t t i i o o n n s s Interface connections on the xStorage 400 are primarily related to the Control and Monitoring Panel wiring.
  • Page 42 The control cable conduit will enter through the bottom conduit entrance (similar to power cabling). • Cables will then have to route to the terminal block, service port, EAC, and Aux Box. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 43: Initial Startup

    All internal safety shields are installed. o HVAC equipment is installed. o The area around the xStorage 400 system is clean and free of packing material and debris. o Adequate workspace exists around the xStorage 400. o Startup and operational checks are performed by an authorized Eaton Customer Service Engineer.

  • Page 44: Completing The Installation Checklist

    Completing the Installation Checklist Notes: _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ _________________________________________________________________________ Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 45 (4X, 1 PER DOOR) BATTERY DISCONNECT (2X) INPUT FUSE ASM. AUXILIARY BREAKERS (2X) ECM INTAKE BLOWER ASM. BATTERY RACKS (4X) ECONOMIZER INLET (IF INSTALLED) REMOTE BREAKER HANDLE (2X) CONTROL TRANSFORMER (2X) Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 46: System Subassemblies And Component Locations

    Figure 21. Inside of Door Components and Locations UPPER HYDROGEN DOOR AJAR SENSOR LOUVER (4X, 1 PER DOOR) ECM INLET HVAC CONTROL UNIT FILTERS (8X) LOWER HYDROGEN LOUVER CROSS SECTION VIEW INSIDE DOOR SURFACE Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 47: Eaton Xstorage 400 Overview

    E E a a t t o o n n x x S S t t o o r r a a g g e e 4 4 0 0 0 0 O O v v e e r r v v i i e e w w The Eaton xStorage 400 is a continuous-duty, solid-state, transformerless, three-phase system that provides advanced energy storage capabilities.

  • Page 48: Charging Mode

    C C h h a a r r g g i i n n g g M M o o d d e e When select programmable conditions are met, the xStorage 400 will charge its internal batteries. Three- phase, 480 VAC electrical current flows into the xStorage 400 from the utility and is converted to DC current by the EnergyAware Inverters.

  • Page 49: Discharging Mode

    D D i i s s c c h h a a r r g g i i n n g g M M o o d d e e When select programmable conditions are met, the xStorage 400 will discharge its internal batteries. The current path is the reverse path described in Chapter 5.2.

  • Page 50: Standby Mode

    S S t t a a n n d d b b y y M M o o d d e e When the batteries are charged and no external load is placed on the xStorage 400, the system will operate in Standby mode.
  • Page 51 6 6 . . 1 1 . . 1 1 C C o o n n t t r r o o l l a a n n d d M M o o n n i i t t o o r r i i n n g g P P a a n n e e l l The control and monitoring panel for the xStorage 400 system is external to the main enclosure and can be found in the vicinity of the cabinet.

  • Page 52: Emergency Power Off (Epo)

    EPO can be wired into the xStorage 400 by authorized personnel. If an EPO is triggered, the xStorage 400 will go into shutdown mode, shunt trip internal battery breakers, and shunt trip the upstream breaker feeding the xStorage 400, separating it from the load bus. This will cut all power to and from the xStorage 400, meaning all auxiliary loads such as remote connectivity, heating, and cooling will be shut down.

  • Page 53: Shutdown And Decommissioning

    The Eaton xStorage 400 stores electric energy in lithium-ion battery modules and internally transmits DC power up to 850 V and AC power up to 480 V. Therefore, the xStorage 400 is susceptible to Class B and Class C fires.

  • Page 54: Hydrogen Mitigation Procedure

    4789910728, prepared by UL LLC and issued May 6, 2021. The xStorage 400 is further protected by a hydrogen detector that continually monitors the hydrogen content of the air within the cabinet. If 25% of the LFL of hydrogen is detected (approximately 1% by volume), the xStorage 400 will isolate itself from utility power and shutdown.
  • Page 55 Water spray. The system is safe to turn over to the owner for repair or disposal once the temperature of the deranged battery does not increase above ambient when cooling is paused. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 56 Hydrogen Mitigation Procedure Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 57 O O n n e e l l i i n n e e s s a a n n d d S S c c h h e e m m a a t t i i c c s s The system oneline drawings in this section show the simplified internal structure of the Eaton xStorage 400.

  • Page 58: Onelines And Schematics

    12 VDC 4/C #12 BESSB BREAKER AUX CONTACT BESSD: AUX CONTACT BESSB: AUX CONTACT 12 VDC 4/C #12 IOM: TB2-1, TB2-2 BESSB BREAKER SHUNT TRIP BESSB: SHUNT TRIP 48 VDC 4/C #12 Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 59 Demand Response feature. The communication to Eaton allows the customer to monitor system status and current telemetry or alter energy service participation parameters. Reading and writing of parameters can be performed through the associated Eaton PredictPulse dashboard or PredictPulse API.

  • Page 60: Communication

    Communication Figure 30. Wireless Communications Antenna Location WIRELESS COMMUNICATIONS ANTENNA RIGHT SIDE REAR Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 61: Demand Response

    Demand response programs offered by utility companies provide an opportunity to reduce financial burden by shifting electricity usage during peak periods and limiting peak demand charges. The xStorage 400 can discharge the Lithium Ion batteries as needed to decrease the load seen by the utility at a specific time. The Eaton xStorage 400 EnergyAware Controller can be configured to provide demand response and peak shaving functionality.
  • Page 62 Manually set the participation into the Demand Response program. Setting this value to ON instructs the xStorage 400 to start the participation in the Demand Response program. Setting the value to OFF instructs the xStorage 400 to stop the participation in the Demand Response program.

  • Page 63: Predict Pulse Dashboard

    PredictPulse provides proactive monitoring technologies that automatically analyze the status, state, and health of the xStorage 400 system. Telemetry data gathered from the unit, current and historical, is analyzed at the Eaton Customer Reliability Center (CRC). Anomalies are escalated to a Software and Monitoring analyst or Technical Support specialist.

  • Page 64: Predictpulse Dashboard

    • Real-time access to the key performance information and alarms for your xStorage 400 system via the PredictPulse online dashboard and APIs. PredictPulse aggregates all subscribed devices and provides detailed information about voltages, loads, energy service participation, attached batteries, and system availability.
  • Page 65 Predict Pulse Dashboard Figure 31. PredictPulse Dashboard — At A Glance Page Figure 32. PredictPulse Dashboard — Fleet View Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 66 Predict Pulse Dashboard Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 67 9 9 . . 1 1 . . 1 1 I I m m p p o o r r t t a a n n t t S S a a f f e e t t y y I I n n s s t t r r u u c c t t i i o o n n s s Due to the presence of batteries, the xStorage 400 interior is unsafe until the DC power source is disconnected, and the electrolytic capacitors are discharged.

  • Page 68: Preventive Maintenance Schedule

    Preventive Maintenance Schedule Table 9. Maintenance Schedule (Continued) Periodicity Activity Details Battery system • Torque check battery system components. • Review battery data. • Perform battery system functional checks. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...

  • Page 69: Models

    • Battery Characteristics 1 1 0 0 . . 2 2 M M o o d d e e l l s s The Eaton xStorage 400 is available in a single power rating model. Battery Energy Storage Description System Eaton xStorage 400 Provides energy for up to 30 minutes at rated power.

  • Page 70: Environmental Specifications

    Battery Energy 222 kWh Max SOC Limit Operating Temperature 23°C (73°F) target temperature +/- 5°C (9°F) variation Operating Altitude Maximum 2000 m (6560 ft) above sea level Relative Humidity Max 80%, non-condensing Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 71 Software is expressly conditioned on acceptance of this Agreement. INFORMATION ABOUT US Eaton Corporation is registered in the United States of America and has its address at 1000 Eaton Boulevard Cleveland, OH 44122 (the “Contracting Entity”). If you have any questions about this Agreement, the Privacy Statement or any other terms or conditions in connection with the Product Software, please contact us at dataprotection@eaton.com.

  • Page 72: Eaton Corporation End User License Agreement For The Xstorage 400

    GRANT AND SCOPE OF LICENSE In consideration of you agreeing to abide by the terms of this Agreement, Eaton hereby grants to you, a limited, non- exclusive, non-transferable, non-sub-licensable, and revocable license to access and use the Product Software with the Eaton Hardware, which is provided to you for your own internal business purposes, solely for your use as permitted in these terms.
  • Page 73 NECESSARY EQUIPMENT Full use of the Product Software is dependent upon your use of a device with Internet access and the purchase of Eaton Hardware in which it is installed or to which the Product Software pertains as described in the Documentation.
  • Page 74 Software without the prior written consent of Eaton. You may transfer the Product Software directly to a Third-Party only in connection with the sale of the Eaton product in which it is installed or to which the Product Software pertains as described by Eaton in the Documentation. In the...
  • Page 75 Product Software (if any). Any attempt to do so is a violation of the rights of Eaton; (vii) not access or view Product Software in order to build a similar or competitive product or service to the Product Software;...
  • Page 76 Licensors contained in the Product Software. To the extent there are any conflicts between the terms of this Agreement and any license arrangement between Eaton and any such Third-Party Licensor corresponding to Third-Party Licensor components or additional obligations by such Third-Party Licensors that are not set forth in this Agreement, the terms of the license arrangement between Eaton and any such Third-Party Licensor or the corresponding open source license will prevail.
  • Page 77 11.1 Where applicable, Eaton may charge you fees for access to the Product Software, as provided in Appendix 2. You agree to pay all fees and charges, within the agreed upon billing period, including taxes, incurred through your account at the...
  • Page 78 15.2 Eaton and its affiliates reserve the right to assume the exclusive defense and control of any claims or actions subject to indemnification by you and all negotiations for its settlement or compromise, and you agree to fully cooperate with Eaton and its affiliates upon request by Eaton.
  • Page 79 18.1 Eaton are not obligated to monitor the access or use of the Product Software, but Eaton reserves the right to do so for the purpose of operating the Product Software, to ensure compliance with these terms, and to comply with applicable law or other legal requirements.
  • Page 80 Except for personally identifiable information/personal data, the use and disclosure of which is addressed in the Privacy Statement for the Product Software, any and all information and content provided by you to Eaton is provided on a non- proprietary and non-confidential basis, regardless of whether the information or content is marked or otherwise identified as confidential or proprietary.
  • Page 81 (together, “Third-Party Links and Ads”). Such Third-Party Links and Ads are not under Eaton’s control. Eaton disclaims all liability and responsibility for any Third-Party Links and Ads and you acknowledge and agree that Eaton is not responsible or liable for: (a) the availability or accuracy of such Third-Party Links and Ads; or (b) the contents, products or services on or available from such Third-Party Links and Ads.
  • Page 82 Agreement will bind and ensure to the benefit of the parties, their successors and permitted assigns. Eaton’s failure to enforce a term of this Agreement is not a waiver of its right to do so later. No failure or delay by Eaton or its affiliates to exercise any right or enforce any obligation shall impair or be construed as a waiver or ongoing waiver of that or any other right or power.
  • Page 83 If access to any services has to be limited, suspended or terminated due to applicable Export Laws. 27.3 Eaton may terminate this Agreement with thirty (30) days’ prior written notice if Eaton may not deliver or grant access to the Product Software, Documentation and Materials to you due to an embargo or other comparable trade sanction, which is expected to be in place for six (6) months or longer.
  • Page 84 Eaton Corporation End User License Agreement for the xStorage 400 CONTACT US Any questions regarding this Agreement should be directed to Eaton at: Eaton Attn: IP Law Group 1000 Eaton Boulevard Mail Code 4N Cleveland, OH 44122 Eaton Attn: Global Data Protection and Privacy Office...
  • Page 85 1 1 1 1 . . 1 1 W W a a r r r r a a n n t t y y To view the Eaton xStorage 400 warranty please click on the link or copy the address to download from the...

  • Page 86: Warranty

    Warranty Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 87 Responsible for the safety data sheet: junseo.yun@samsung.com Further Information Battery-System: Lithium-Ion (Li-ion) Voltage: 3,7V Anode (negative electrode): based on intercalation graphite Cathode (positive electrode): based on lithiated metal oxide (Cobalt, Nickel, Manganese) Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 88 2 - 10 % 231-159-6 7440-50-8 Copper foil 2 - 10 % Aluminium and inert materials 5 - 10 % Full text of each relevant R phrase can be found in heading 16. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 89 If possible, remove cell(s) from fire fighting area. If heated above 130°C, cell(s) can vent. If heated above 160°C, cell(s) can explode. Cell is not flammable but internal organic material will burn if the cell is incinerated. 6. Accidental Release Measures USA, EU Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 90 Occupational exposure controls No specific precautions necessary. Protective and hygiene measures When using do not eat, drink or smoke. Wash hands before breaks and after work. Respiratory protection No specific precautions necessary. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 91 In case of open cells, there is the possibility of hydrofluoric acid and carbon monoxide release. Possibility of Hazardous Reactions Will not occur Additional information No decomposition if stored and applied as directed. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 92 Hazard label: ADR/RID packing group: Limited quantity: LQ 0 Tunnel restriction code: Description of the goods Lithium-ion batteries Other applicable information (land) LQ 0: No exemption under the conditions of 3.4.2. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 93 To the best of our knowledge this product contains no toxic chemicals subject to the supplier notification requirements of Section 313 of the Superfund Amendments and Reauthorization Act (SARA/EPCRA) and the requirements of 40 CFR Part 372. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 94 "(n.a. = not applicable; n.d. = not determined)" The data for the hazardous ingredients were taken respectively from the last version of the sub-contractor’s safety data sheet. Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 95 Battery Safety Data Sheets Eaton xStorage 400 Installation and Operation Manual P-164001032—Rev 01...
  • Page 96 P-16400103201 P-164001032 01...
