Eaton C-632X Assembly Instructions

Eaton C-632X Cabinet Assembly Instructions
C-632X Cabinet

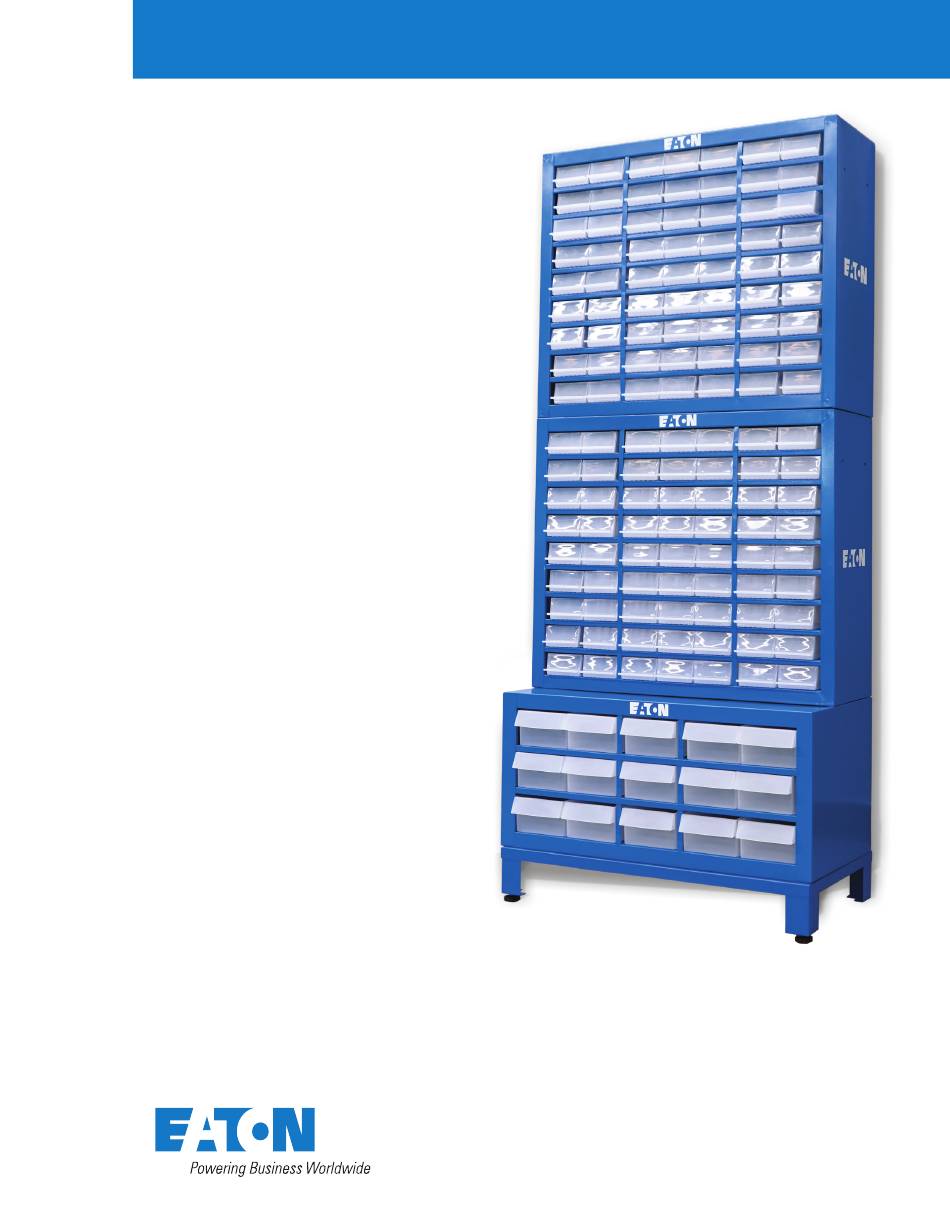

The C-632X consists of the CB-63X cabinet base,
the C-15X cabinet, and two C-63X cabinets. This
cabinet is a space saving, efficient addition to the
modern store with a lobby type sales area. It requires
a minimum amount of space, but does a maximum
job merchandising a wide variety of products in 126
clear drawers. An additional 15 large, high impact
drawers located in the bottom section provide ample
space for large or heavy items.
Dimensions: 68-1/2"H x 30" W; 15" Deep. Weight: 167 lbs.

Materials List:

(1) CB-63X cabinet base
(1) C-15X cabinet assembly
(contains 15 drawers and 30 dividers)
(2) C-63X cabinet assemblies
(each cabinet contains 63 drawers
and 189 dividers)
(12) M5 x 0.8 wing nuts
(2) M6 x 1 plastic knobs
(24) Washers
(8) M5 x 0.8 bolts, 45mm length
(4) M5 x 0.8 bolts, 60mm length

Tools Required:

• 8 mm wrench
Assembly Instructions on reverse
