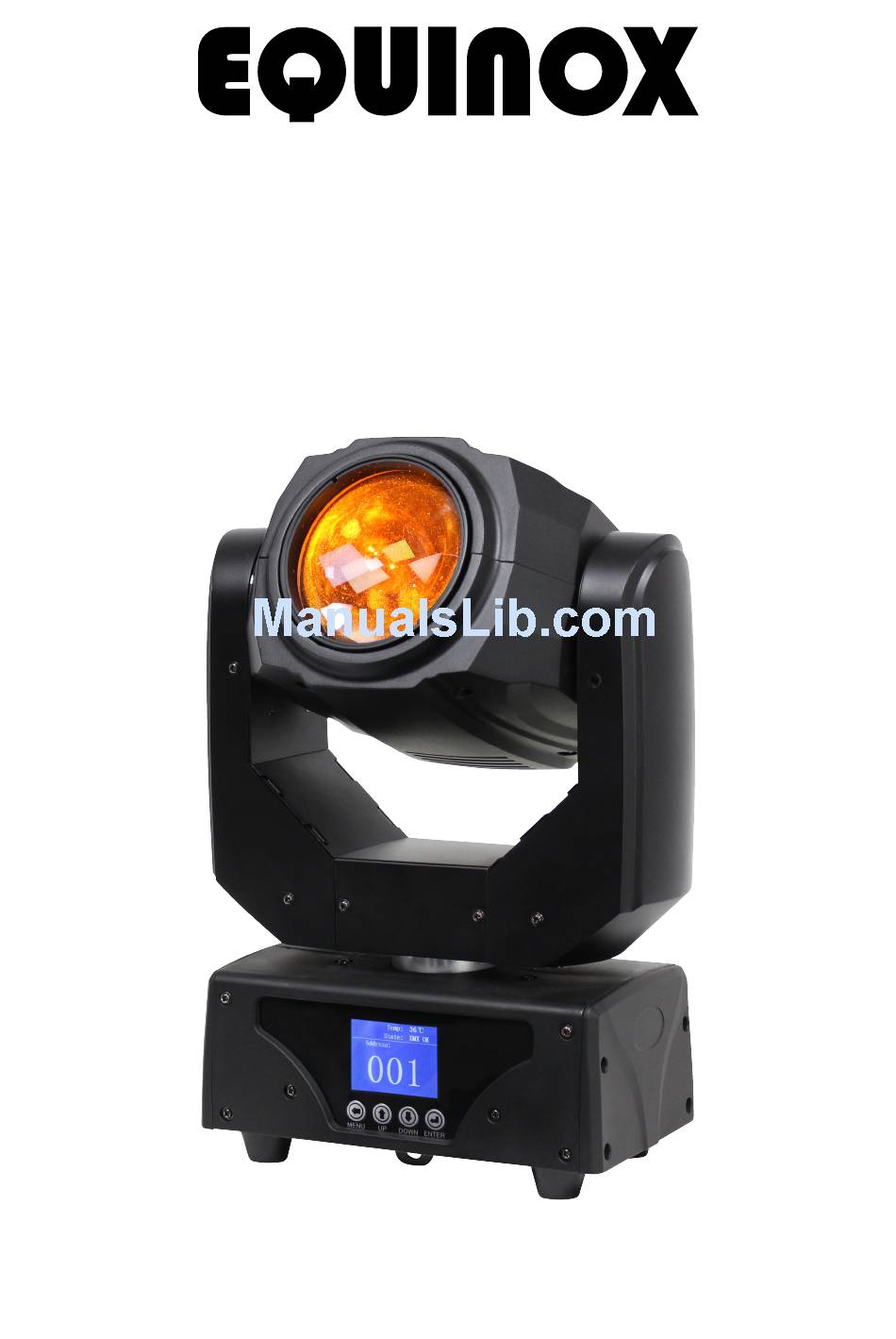

- Page 1 Triton Beam User Manual Order code: EQLED071...
-
Page 2: Safety Advice

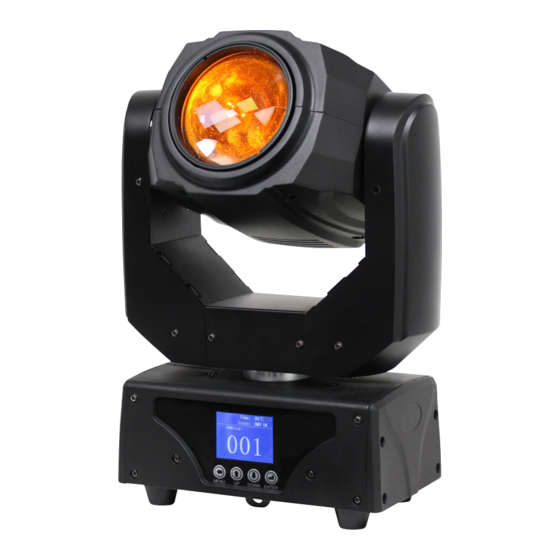

Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Triton Beam This compact moving head creates sharp beams of light and features 9 colours plus open and 14 gobos plus open. A frost filter is also included to further bolster this units arsenal of features. Also on-board is a 3 facet rotating prism for multi beam effects and motorised focus. Loaded with a powerful 30W LED, the Equinox Triton Beam outputs a massive 106,000 Lux @ 2m with a tight 2° beam angle. The superb optics allow this fixtures beams to be seen over 50m away. • 1 x 30W white LED • Pan: 540° or 630° selectable, Tilt: 270° • Beam angle: 2° • Pan/tilt auto correction • 106,000 Lux @ 2m • 0-100% dimming and • Motorised focus variable strobe • 3 facet rotating prism • Supplied with quick release • Frost filter omega clamp • 14 static gobos + open • 4 push button menu with 2.5” LCD • 9 dichroic colours + open display with invert function Specifications • DMX channels: 11 or • IEC power input/output Power consumption 14 selectable • 3-Pin XLR input/output Power supply 100~240V, 50/60Hz • Auto, sound active and • Fan cooled master/slave modes Fuse...
-
Page 4: Technical Specifications
Technical specifications POWER CONSUMPTION: 85W FUSE: F2A 250V 01 - LCD display In the box: 1 x fixture, 02 - Function buttons 06 - IEC power input socket 1 x power cable, 03 - On/off switch 07 - IEC power output socket 1 x omega clamp, 04 - DMX input socket 08 - Fuse F2A 250V & 1 x user manual 05 - DMX output socket 09 - Safety eye Gobos: Open Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 Gobo 6 Gobo 7 Gobo 8... -
Page 5: Operating Instructions
Operating instructions Main Menu Sub Menu Options/Values Description Address Address Setting 001-512 DMX Address Setting 11-CH (11 channel mode) Channel CH-Mode DMX Channel Setting 14-CH (14 channel mode) Auto Music No Signal Mode Functions when no DMX signal Black Hold Master Master/Slave Mode Master/Slave Mode Slaver Mode Auto Scene Auto Mode 00% (Low sensitivity) Sound Sensitivity Sound Sensitivity 99% (High sensitivity) English Language Language Setting 中文 (Chinese) Display Inverse No/Yes Display Inverse General... - Page 6 Operating instructions Operating instructions 11 channel mode: Channel Value Function 000-015 Open 000-255 Pan adjustment 0-630° 016-027 000-255 Tilt adjustment 0-270° 028-039 Green 000-255 Pan/Tilt speed (fast-slow) 040-051 Blue 000-255 Master dimmer (0-100%) 052-063 Yellow 000-015 Strobe off 064-075 Orange 016-095 Strobe (1Hz-25Hz slow-fast) 076-087 Magenta 096-175 Strobe (1Hz slow-fast) 088-099 Light Green 176-255 Random strobe 100-111 Purple...
- Page 7 14 channel mode: Channel Value Function Channel Value Function 000-255 Pan adjustment 0-630° 123-128 Gobo 9 Shaking (fast-slow) 000-255 Pan fine 129-134 Gobo 10 Shaking (fast-slow) 000-255 Tilt adjustment 0-270° 135-140 Gobo 11 Shaking (fast-slow) 000-255 Tilt fine 141-146 Gobo 12 Shaking (fast-slow) CH8 cont. 000-255 Pan/Tilt speed (fast-slow) 147-152 Gobo 13 Shaking (fast-slow) White LED Master dimmer (0- 153-128 Gobo 14 Shaking (fast-slow) 000-255 100%) 159-203 Gobo Wheel CCW (fast-slow) 000-015 Strobe off 204-211 Open 016-095...
-
Page 8: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. - Page 9 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. it is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
-
Page 10: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Triton Beam User Manual... - Page 11 Operating instructions Operating instructions www.prolight.co.uk Triton Beam User Manual...
- Page 12 www.prolight.co.uk Triton Beam User Manual...
