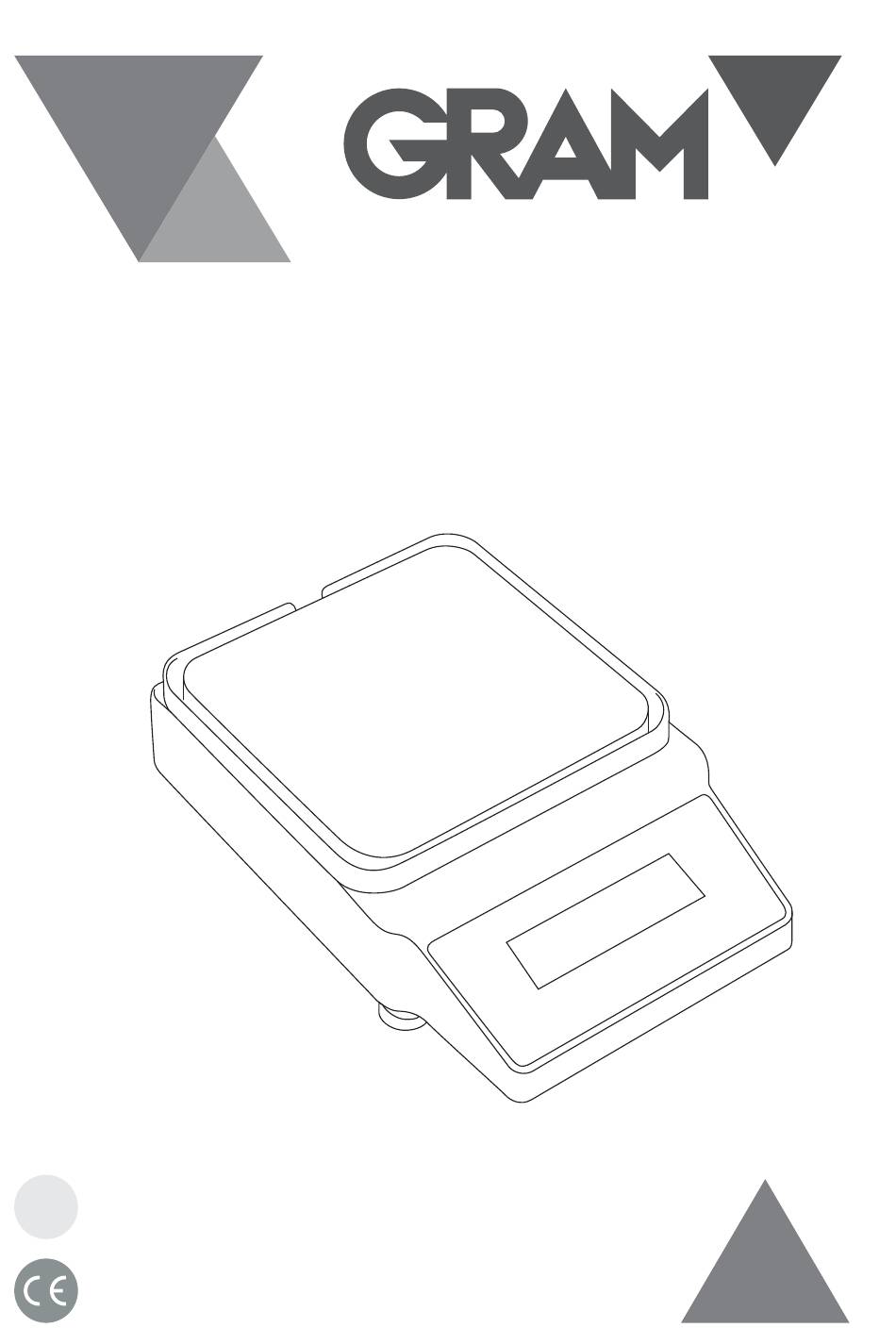

- Page 1 Serie USER'S MANUAL...
- Page 2 This manual should be available for all users of these equipments. To get the best results and a higher duration of this equipment, it is advisable to read carefully this manual and follow the processes of use.
- Page 3 Thank you for choosing this equipment. We sincerely wish that you enjoy your MK series electronic balance. We highly recommend looking after this equipment according to what is stated in this manual. We develop our products according to the CE marking regulations as well as emphasizing the ergonomics and security for its user.
- Page 4 INDEX OF CONTENTS 1. SPECIFICATIONS..............3 2. INSTRUCTION ..............4 3. OPERATION OF THE BALANCE ..........5 4. FAILURES AND SOLUTIONS ..........9...
-
Page 5: Specifications

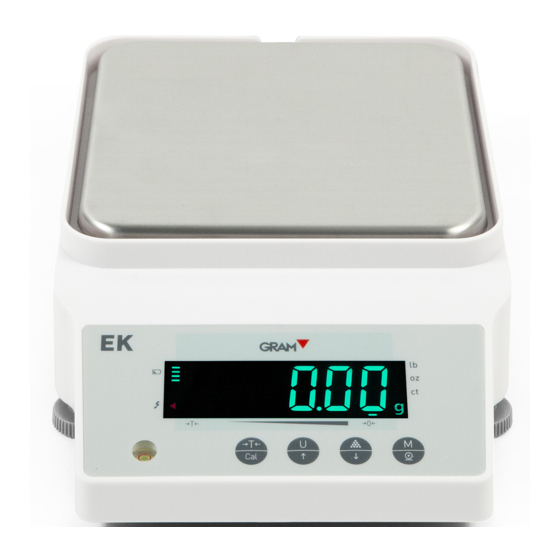

1. SPECIFICATION The appearance and the structure EK series precision balance work on high precision strain gauge load cell which implements high speed stabilization and high reliability. Model No. EK-800 EK-2000 EK-5000 EK-6000 EK-10K Max. Capacity (g) 2000 5000 6000... -
Page 6: Instruction
2. OPERATION OF THE BALANCE Symbol Instruction Weighing mode by “g”unitnn The balance is on Zero mode Weighing mode by “lb” unit The balance is on tare mode Weighing mode by “oz” unit When the bubble is on the middle, the balance is on horizontality. - Page 7 3. OPERATION OF THE BALANCE Choosing the Installation Site The measuring performance of the balance is greatly influenced by the environment where it is installed. Observe the following points to ensure safe and accurate weighing. Precautions on Use Avoid locations where the balance will be exposed to any of the following. ¤Air flow from an air conditioner, ventilator, door or window ¤Extreme temperature changes ¤Vibration from surroundings or nearby equipment...
- Page 8 ¤Direct sunlight ¤Dust, electromagnetic waves or a magnetic field Install the balance on a strong and stable flat table or floor. Placing the balance in an unstable site could lead to injury or trouble with the balance. When selecting the installation site, take into account the combined weight of the balance and the item to be weighed.
-
Page 9: Failures And Solutions
Turning the Power On 1 Insert the plug of the Power Cord of the balance. (And please pay attention of the voltage 110V or 220V). 2 Connect the Power Cord to the power outlet. 3 Press “ON”. The display will automatically go through the changes indicated below. * If it can not enter above display, please contact with your distributor or your transportation agent so that they can make the claims in the correct time limit. - Page 10 shows the calibrate value, like [1000.00] , then put the corresponding weight on the pan softly. (This balance is intelligent calibration, it supports any integer point calibration. If there is no corresponding value weight, it can be replaced by any integer value weight within the range of no less than 1 / 10 of the maximum range.
- Page 11 Counting Counting mode is piece counting. Short press “TARE/CAL” to zero the balance as [0.00] (if extra device is needed to be placed, zero the balance after placing the extra device), and prepare the samples quantity as 10pcs, or 20pcs, or 50pcs, or 100pcs. Take the sample quantity 10pcs as an example: put 10pcs sample on the plate, short press “COU”, the balance will display: ( [ 10] à...
- Page 12 4. Failures and Solutions No display no power supply plug in power cord ● damaged AC/DC adaptor ● change fuse ● fuse broken ● replace adaptor ● Broken again after ● changing, be repaired in the maintenance dept. work ● Unstable weighing value improve the work ●...
- Page 14 002/15062021 Gram Precision S.L. Travesía Industrial, 11 · 08907 Hospitalet de Llobregat · Barcelona (Spain) Tel. +34 902 208 000 · +34 93 300 33 32 Fax +34 93 300 66 98 gram.es comercial www.gram-group.com...
