Summary of Contents for National Instruments PXIe-5693
- Page 1 PXIe-1075...
-
Page 2: Table Of Contents

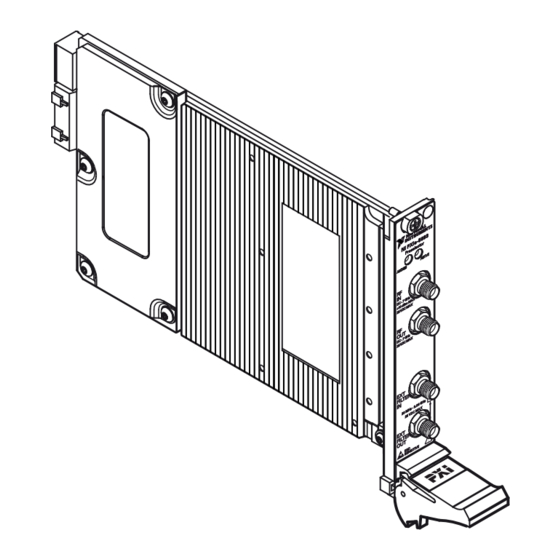

Before you begin, install and configure your chassis and controller. Note This document explains how to install, configure, and test the NI PXIe-5693 (NI 5693). The NI 5693 is an RF preselector module that adds preselection and preamplification capability to a spectrum analyzer. -
Page 3: Electromagnetic Compatibility Guidelines
Furthermore, any modifications to the product not expressly approved by National Instruments could void your authority to operate it under your local regulatory rules. -
Page 4: Verifying The Kit Contents
Clean the hardware with a soft, nonmetallic brush. Make sure that the Caution hardware is completely dry and free from contaminants before returning it to service. Refer to the NI PXIe-5693 Specifications at ni.com/manuals for complete Note specifications. NI PXIe-5693 Getting Started Guide | © National Instruments | 3... -
Page 5: Installing The Software
2. PXI Peripheral Slot 5. PXI Express Peripheral Slot 3. PXI Express Hybrid Peripheral Slot The NI 5693 module can be placed in PXI Express peripheral slots or PXI Express Hybrid peripheral slots. 4 | ni.com | NI PXIe-5693 Getting Started Guide... -
Page 6: Direct Connections To The Ni 5693
The NI 5693 is a precision RF instrument that is sensitive to ESD and transients. Ensure you take the following precautions when making direct connections to the NI 5693 to avoid damaging the device. NI PXIe-5693 Getting Started Guide | © National Instruments | 5... -
Page 7: Ni 5693 Front Panel
Figure 3. NI 5693 RF Preselector Module Front Panel NI PXIe-5693 Preselector ACCESS ACTIVE DC - 7 GHz +10 dBm MAX 25 VDC MAX DC - 7 GHz 25 VDC MAX FILTER 25 VDC MAX FILTER SENSITIVE 6 | ni.com | NI PXIe-5693 Getting Started Guide... - Page 8 EXT FILTER OUT Connects to the custom external filter input connector. This connector is the output terminal for an external preselector filter in the 20 MHz to 3 GHz frequency range. NI PXIe-5693 Getting Started Guide | © National Instruments | 7...
-
Page 9: Configuring The Ni 5693 In Max
NI technical support. Configuring the NI 5693 in MAX Use Measurement & Automation Explorer (MAX) to configure your National Instruments hardware. MAX informs other programs about which devices reside in the system and how they are configured. MAX is automatically installed with NI-RFSA. -
Page 10: Troubleshooting
NI 5693 appears in MAX. If the ACCESS LED fails to light after you power on the chassis, a problem may exist with the chassis power rails, a hardware module, or the LED. NI PXIe-5693 Getting Started Guide | © National Instruments | 9... -
Page 11: What Should I Do If The Ni 5693 Doesn't Appear In Max
Select Start»Control Panel»System»Hardware»Device Manager. If you are using a PXI controller, verify that a National Instruments entry appears in the system device list. Reinstall NI-RFSA and the device if error conditions appear in the list. If you are using an MXI controller, right-click PCI-to-PCI Bridge, and select Properties from the shortcut menu to verify that the bridge is enabled. -
Page 12: Where To Go Next
NI-RFSA. Worldwide Support and Services ni.com/ The National Instruments website is your complete resource for technical support. At support, you have access to everything from troubleshooting and application development self-help resources to email and phone assistance from NI Application Engineers. - Page 13 NI product. Refer to the Export Compliance Information at the National Instruments global trade compliance policy and how to obtain relevant HTS codes, ECCNs, and other import/export data. NI MAKES NO EXPRESS OR IMPLIED WARRANTIES AS TO THE ACCURACY OF THE INFORMATION CONTAINED HEREIN AND SHALL NOT BE LIABLE FOR ANY ERRORS.
