Summary of Contents for Jack JK-SHIRLEYIIE

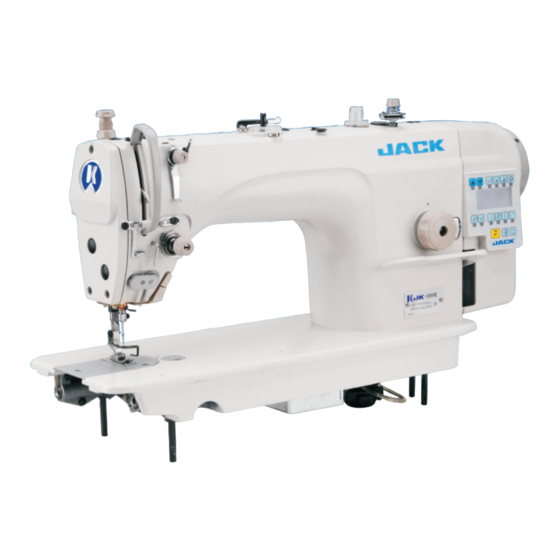

- Page 1 JK-SHIRLEYIIE Operation and Daily Service Manual www.chinajack.com Edited by Customer Service Center Translated by International Trade Department...
-
Page 2: Table Of Contents
Adjustment of Presser foot lifter Thread-Trimming Standard method of adjustment of trimming Introduction of System Operation Factory reset Common fault treatment（1-7） Daily maintenance JK-SHIRLEYIIE Ordinary computerized computerized machine machine Attachment (1) Attachment 2 (Common sewing fault) Common problems and solutions of Shirley IIE (Powermax) Email:Sales@jackgroup.com.cn... - Page 3 JK-SHIRLEYIIE With powermax control box Presser foot PK Simple Beautiful Efficient Saving energy Stable Low noise...
-
Page 4: Preparation Before Trial Sewing
Technical parameter Preparation before sewing (Threading) JK-SHIRLEYIIE Turn the needle to the top side Integrated computerized lockstitch Model Fabric Thin ,medium Threading guide Needle size DBX1, 14# Assemble Assemble the needle the needle Maximum needle gauge Thread tension of the thread... -
Page 5: Instruction Of Pedal Control
Instruction of Pedal Control Mechanical adjustments Original state The first tension device adjustment Turn on the power, machine will be up needle position ,the pedal will be as original state Control the length on the needle after automatic trimming and the thread length around 4-4.5 cm is the best. Adjusting the knob in clockwise way, thread will be short;... -
Page 6: Selection Of Mode
Selection of Sewing Mode Intelligent sewing Intelligent sewing simple operation simple operation Press this key, the machine enters into “free sewing mode”, the sewing length can be controlled by the operator, that is why we called this function as“free sewing model”. It’s often used for lap seam and bar- tacking sewing. -
Page 7: Speed
Speed Keeping press then press , will be displayed “Pd-0000”, press enter “P62-2101”, press to confirm. Parameter Parameter Adjusting instruction Default code definition Beginning sewing speed Limit the maximum beginning speed Sewing speed Limit the maximum sewing speed 3500 Fixed-length Limit the maximum fixed-length 3000 sewing speed... -
Page 8: Application Of Needle Position
Thread tension device Application of needle position Press and it can open or close small thread tension device easily If indicator light is off If indicator light is on it means needle up it means needle down 1.After the user press the ,and it press the at the same time,it will enter into system The pedal is in the... -
Page 9: Adjustment Of Feed Dog
Adjustment of feed dog Adjustment of the presser foot lifter Change the presser footer: loose the footer screw then can change Height adjustment for feed dog the presser footer. Adjust the footer and needle: Unscrew the braces screw When the needle is not in the middle of the For light fabric, appropriately presser footer ,or the feed dog is in low adjust feed dog lower... -
Page 10: Thread-Trimming
Adjust method: Thread trimming Before adjusting the trimming time, we must adjust the height of needle bar, the time of hook drawing thread and needle position. Press the button can turn on or turn off the When the hook scattering thread point is about 5mm away from the thread trimming function. -
Page 11: Factory Reset
Factory Reset Common fault treatment(2) -06) REASON: Solenoid circuit fault The way to check: 1.check the DC resistance of each solenoid is normal or not with a multimeter (you can Press button first, then press compare with the normal machine) 2. - Page 12 Common fault treatment(4) Common fault treatment(6) (Err-08) Err- 12/13/15) REASON: Motor blocked REASON: Motor initial rotor position fault The way to check: The way to check: 1.Check if there is any other mechanical fault from machine in running condition. 1.Check if connection between motor encoder and control box is in good condition or not. 2.Recheck motor angle.
-
Page 13: Daily Maintenance
Daily Maintenance Attachment 1 Machine maintenance knowledge Keep the machine surface clean Daily maintenance: After work-off, turn off the power first. Clean the dust on the machine and machine head, table, thread holder, and make sure the oil are clear of oil tank. Keep the oil in the oil reservoir not lower than the scale Weekly maintenance:... -
Page 14: Attachment 2
Attachment 2 Whether the presser foot pressure is too weak the fabric not flat enough Common sewing fault To adjust the pressure of presser foot High-low about the feed dog , whether not flatness upper thread is not tight The tension of upper thread is weak, or the tension To adjust the feed dog height and parallelism enough of bottom thread is too strong. - Page 15 4.Q: Presser foot can’t be controlled well when half reverse tread, and trim mistakenly. Attachment 3 This phenomenon is caused by unreasonable parameter settings of trimming position and Presser Foot Lift position.（the method of getting into The technician parameters as The common problems and solutions of JK-SHIRLEY IIE above）Increase the value of P35 appropriately.
- Page 16 15 Q: Will the electromagnet be short circuit or electricity leakage with inner-equipped unnecessary to raise presser foot. when machine is bone only operator only need to pull with presser foot lifter, where is so oily? hand before sewing, and it is absolutely unnecessary to raise presser foot. on the contrary, Answer: we adopt custom- made electromagnet, which is completely enclosed.
- Page 17 MEMO into the “ parameter mode of system operator”P42. You can modify the upper stop position through adjusting the parameter value of P42,and modify the under stop position through adjusting the value “P43”.After finishing adjustment, press “P” to store it. 22 Q:How to adjust the speed? Answer: Press the two triangle keys on the top left corner of the panel to adjust the stitching speed within the max rotating speed as the system presets.
- Page 18 MEMO MEMO...
Need help?
Do you have a question about the JK-SHIRLEYIIE and is the answer not in the manual?
Questions and answers

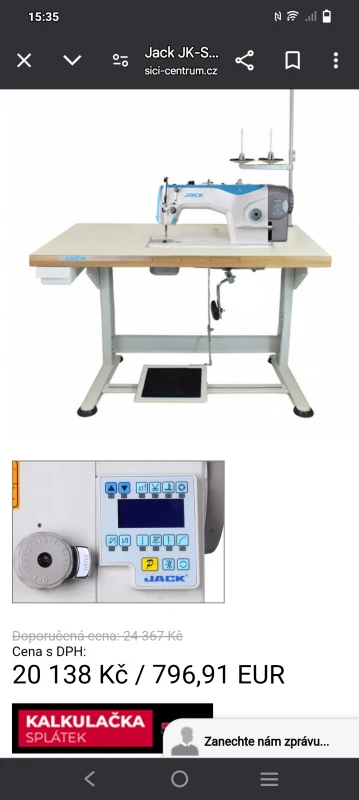

Dobrý den chtěla jsem se zeptat potřebovala bych na šicím stroji nastavit aby mi to na začátku zapošilo ušilo 5 cm a zase zapošilo jak to mám nastavit děkuji
To set the Jack JK-SHIRLEYIIE sewing machine to sew a 5 cm backstitch at the beginning and end, follow these steps:
1. Turn on the Machine – Ensure the machine is powered on and in the original state.
2. Use the Operator Panel – Press the *Start & End Back Tacking Key* to activate backstitching.
3. Set Backstitch Length – Adjust the stitch length to achieve 5 cm of backstitching.
4. Use the Backstitch Wrench or Electronic Backstitch Key – These controls allow you to perform backstitching manually or automatically.
5. Confirm Settings – Test on a fabric sample to ensure the backstitch length is correct.
This setup will ensure a 5 cm backstitch at the beginning and end of the stitch.
