the screws.

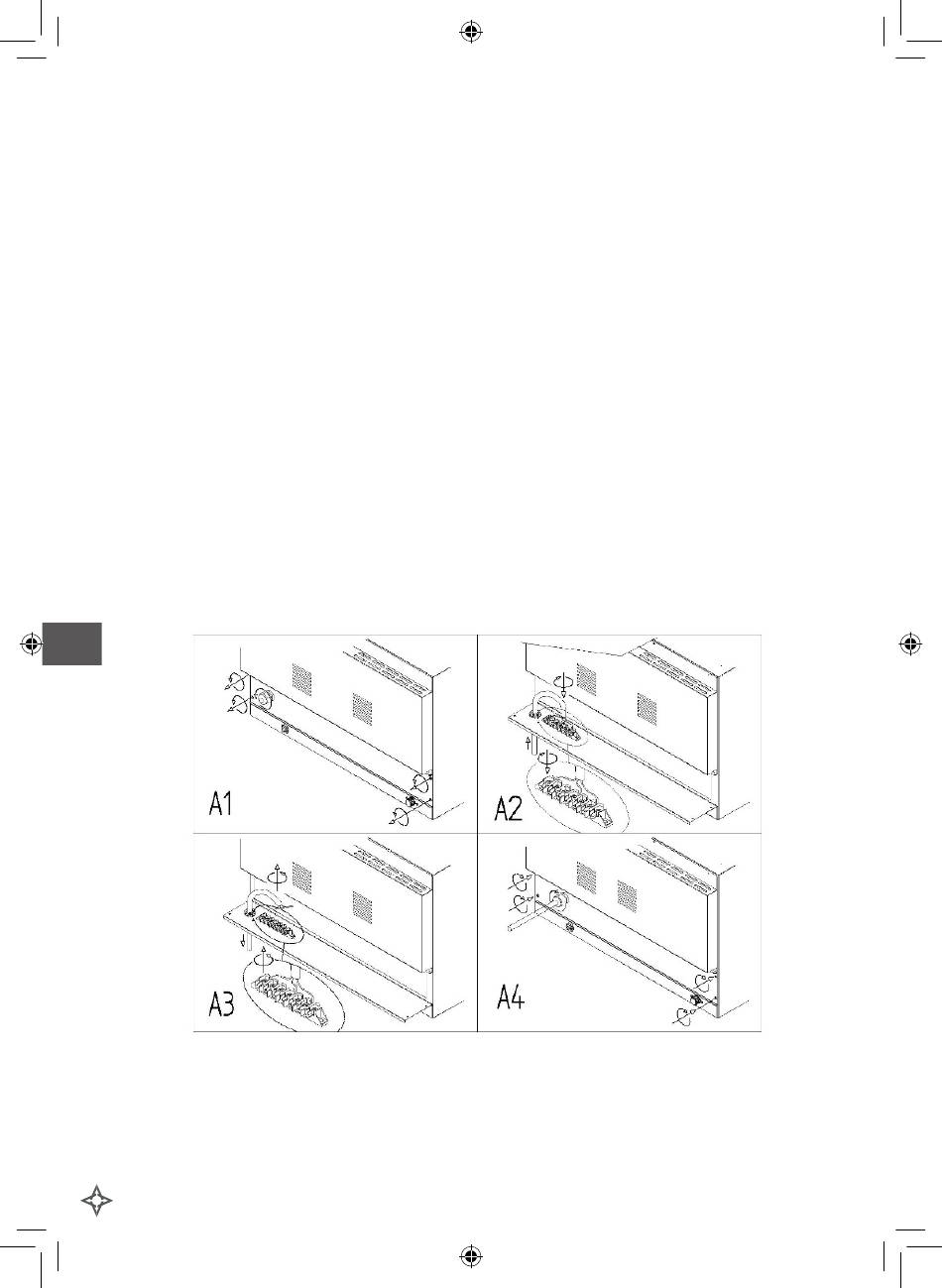

• ( A2 ) Feed the new cable through the cable gland. Connect the cable voltage to the terminal strips following
the connection diagram on the label on the back of the appliance. Only connect what is indicated inserting the
copper bridge and the electricity cable together under the screws, in the tightening direction, so the cable and
the bridge are tightly fixed by tightening the screw. The type of cable to be used (HO7RN-F) is indicated on the
label for each connection and the voltage sections in mm².
• ( A4 ) Close the bottom part of the back of the appliance by tightening the screws and fit the cable by tight-
ening the cable gland top.
Erroneous connection could lead to overheating of the terminal board which could lead to blowout and electric
shock.
Check that all the connections are tight before connecting the oven to the mains.
PE = Yellow/Green: "EARTH" protection conductor.
N = Blue: neutral conductor.
L1, L2, L3 = Brown, Grey, Black: live conductors
Check there is no static discharge between live and earth. Check the limit switch continuity between the ex-
ternal casing and the earth wire of the mains. It is advised to use a multi tester to carry out these operations.
