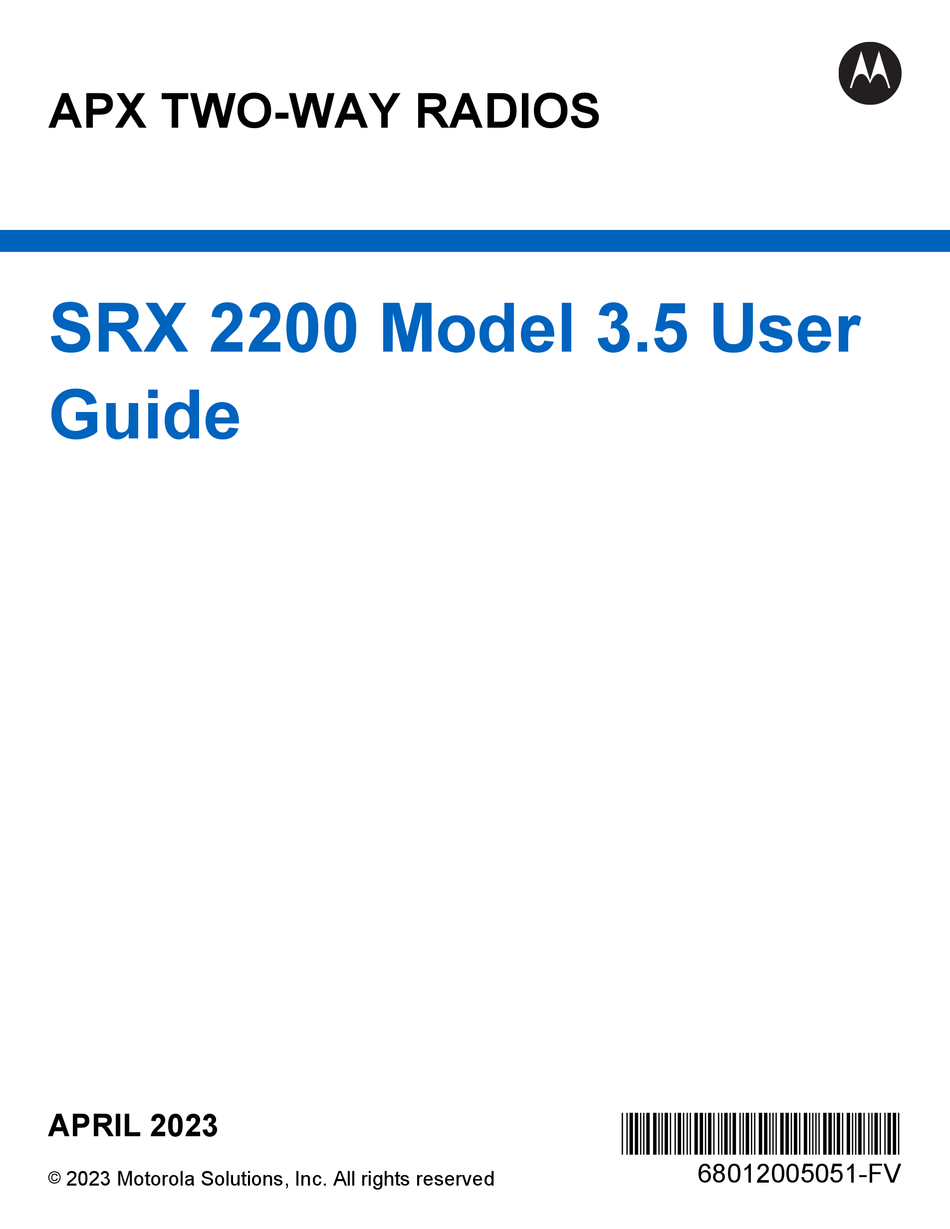

APX TWO-WAY RADIOS
SRX 2200 Model 3.5 User
Guide
APRIL 2023
*68012005051*
68012005051-FV
©
2023 Motorola Solutions, Inc. All rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRX 2200 3.5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Motorola solutions SRX 2200 3.5

  • Page 1 APX TWO-WAY RADIOS SRX 2200 Model 3.5 User Guide APRIL 2023 *68012005051* 68012005051-FV © 2023 Motorola Solutions, Inc. All rights reserved...
  • Page 2: Intellectual Property And Regulatory Notices

    License Rights The purchase of Motorola Solutions products shall not be deemed to grant either directly or by implication, estoppel or otherwise, any license under the copyrights, patents or patent applications of Motorola Solutions, except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a product.
  • Page 3: Table Of Contents

    68012005051-FV Contents Contents Intellectual Property and Regulatory Notices............2 List of Tables......................12 Software Version.......................13 Chapter 1: Read Me First..................14 1.1 Notations Used in This Manual....................14 1.2 Radio Care..........................14 1.2.1 Materials for Radio Washing..................16 1.2.1.1 Washing The Radio..................16 1.2.1.2 Washing the Battery...................18 1.2.1.3 Washing the Universal Connector Cover...........
  • Page 4 68012005051-FV Contents 4.4 TMS Status Icons........................37 4.5 Call Type Icons........................38 4.6 Intelligent Lighting Indicators ....................38 4.7 Alert Tones ........................... 39 4.8 Phone Call Displays and Alerts..................... 41 4.9 Display Color Change On Channel..................42 Chapter 5: General Radio Operation..............43 5.1 Selecting a Zone........................43 5.2 Selecting a Radio Channel....................
  • Page 5 68012005051-FV Contents 7.1.1.2 Making a Selective Call................53 7.1.2 Talkgroup Call Feature (Conventional Only)............54 7.1.2.1 Selecting a Talkgroup................54 7.1.3 Sending a Status Call....................54 7.1.4 Making Priority Dispatch Calls................. 55 7.1.5 Dynamic Regrouping (Trunking Only) ..............55 7.1.5.1 Classification of Regrouped Radios............56 7.1.5.2 Requesting a Reprogram (Trunking Only)..........
  • Page 6 68012005051-FV Contents 7.6.1 Receiving a Call Alert Page..................68 7.6.2 Sending a Call Alert Page..................68 7.7 Recent Calls.......................... 69 7.7.1 Viewing Recent Calls....................69 7.7.2 Instant Recall......................70 7.7.2.1 Saving and Playback Calls.................70 7.8 In-Call User Alert........................71 7.9 Quik Call II..........................71 7.9.1 Initiating Quick Call II Transmissions...............
  • Page 7 68012005051-FV Contents 7.14.1 Accessing the Messaging Features............... 83 7.14.2 Composing and Sending a New Text Message.............84 7.14.3 Sending a Quick Text Message................84 7.14.4 Priority Status and Request Reply for New Text Messages........86 7.14.4.1 Appending a Priority Status to a Text Message........86 7.14.4.2 Removing a Priority Status from a Text Message........86 7.14.4.3 Appending a Request Reply to a Text Message........86 7.14.4.4 Removing a Request Reply from a Text Message........86...
  • Page 8 68012005051-FV Contents 7.17.3 Changing the Tactical Inhibit Password...............100 7.18 Radio Stun and Kill......................101 7.18.1 Radio Stun......................101 7.18.1.1 Using Radio Stun................... 101 7.18.2 Radio Kill ......................102 7.18.2.1 Using Remote Kill to Kill Another Radio..........102 7.18.2.2 Using Direct Kill to Kill Your Own Radio..........103 7.19 Radio Inhibit........................103 7.20 Location ..........................
  • Page 9 68012005051-FV Contents 7.23.2 PIN Authentication in Pairing................115 7.23.2.1 Pairing the Authentication PIN when Receiving a Pairing Request..115 7.23.2.2 Pairing the Authentication PIN with the Generated Numeric PIN..116 7.23.3 Viewing and Clearing the Bluetooth Device Information........117 7.23.4 Editing the Bluetooth Friendly Name..............118 7.23.5 Responder Alert Sensors..................118 7.23.5.1 Holster Sensor..................
  • Page 10 68012005051-FV Contents 7.28.11 Turning Voice Mute On or Off................132 7.28.12 Using the Time-Out Timer..................133 7.28.13 Time and Date Setup..................133 7.28.13.1 Editing the Time and Date..............133 7.28.14 Conventional Squelch Operation............... 134 7.28.14.1 Using Conventional Squelch Operation Features........ 134 7.28.15 Using the PL Defeat Feature................135 7.28.16 Digital PTT ID Support ..................
  • Page 11 68012005051-FV Contents MOTOROLA SOLUTIONS COMMUNICATION PRODUCTS........... 151 I. WHAT THIS WARRANTY COVERS AND FOR HOW LONG:..........151 II. GENERAL PROVISIONS:..................... 152 III. STATE LAW RIGHTS:......................152 IV. HOW TO GET WARRANTY SERVICE:................152 V. WHAT THIS WARRANTY DOES NOT COVER:..............152 VI. PATENT AND SOFTWARE PROVISIONS:.................153 VII.
  • Page 12: List Of Tables

    68012005051-FV List of Tables List of Tables Table 1: Text Entry Modes........................26 Table 2: Keypad Characters........................26 Table 3: LED Indications........................33 Table 4: TMS Status Icons........................37 Table 5: Call Type Icons.........................38 Table 6: Emergency Operation Scenarios....................73 Table 7: Parameter Editing Keys......................141 Table 8: VHF Marine Channel List.......................
  • Page 13: Software Version

    68012005051-FV Software Version Software Version All the features described in the following sections are supported by the software version R30.00.00 or later. Accessing the Radio Information on page 137 to determine the software version of your radio. Contact your system administrator for more details of all the supported features.
  • Page 14: Chapter 1: Read Me First

    68012005051-FV Chapter 1 : Read Me First Chapter 1 Read Me First This User Guide covers the basic operation of the radio. However, your dealer or system administrator may have customized your radio for your specific needs. Check with your dealer or system administrator for more information.
  • Page 15 Elastomer seals used in portable radios age with time and environmental exposure. To ensure the waterseal integrity of the radio, Motorola Solutions recommends that radios be checked annually as a preventive measure. The disassembly, test, and reassembly procedures along with necessary test equipment are available in the Service Manual.
  • Page 16: Materials For Radio Washing

    68012005051-FV Chapter 1 : Read Me First 1.2.1 Materials for Radio Washing Procedure: • Prepare the following material, apparatus, or equipment before you begin washing the radio and its parts. A bucket of tap water (water height must be at least 2 inches higher than radio height). A bucket of 0.5% liquid detergent solution (1 teaspoon of recommended liquid detergent to 1 gallon of water or 1 part of recommended liquid detergent to 200 parts water;...
  • Page 17 68012005051-FV Chapter 1 : Read Me First 3 Dip the radio completely into the detergent solution and repeat turning action for both knobs, 3-Position A/B/C and the Secure Switch. 4 Lightly scrub the plastic area (front, back, bottom, top and side planes) of the radio with the small brush.Take extra care around the Speaker Grill and Microphone port openings.
  • Page 18: Washing The Battery

    68012005051-FV Chapter 1 : Read Me First 8 Shake off excess water and pat dry the radio with a dry towel. Take extra care to tap/shake out any trapped water from the speaker grill area. 1.2.1.2 Washing the Battery Procedure: 1 Rinse the battery under running water to remove any excess debris.
  • Page 19: Washing The Universal Connector Cover

    68012005051-FV Chapter 1 : Read Me First 1.2.1.3 Washing the Universal Connector Cover Procedure: 1 Dip the universal connector cover into tap water followed by the detergent solution. 2 Use your thumb or finger to lightly rub clean the rubber seal. 3 Use the toothbrush to scrub off any dirt or foreign matter from the niches of the top catch and thumb screw.
  • Page 20: Radio Service And Repair

    Radio Service and Repair Proper repair and maintenance procedures ensure efficient operation and long-life of this radio. A Motorola Solutions maintenance agreement provides expert service to keep the radio and all other communication equipment in perfect operating condition. A nationwide service organization is provided by Motorola Solutions to support maintenance services.
  • Page 21: Chapter 2: Getting Started

    NOTE: When charging a battery attached to a radio, the radio must be turned off. Procedure: To charge the battery, place the battery (with or without the radio) in a Motorola Solutions- approved charger. The LED on the charger indicates the charging progress. For more information, see the Charger User Guide.
  • Page 22: Attaching The Antenna

    68012005051-FV Chapter 2 : Getting Started Attaching the Antenna Prerequisites: Ensure the radio is turned off before attaching the antenna. Procedure: 1 Set the antenna in the receptacle. 2 Turn the antenna clockwise to attach to the radio. 3 To remove the antenna, turn the antenna counterclockwise. NOTE: When removing the antenna, ensure that the radio is turned off.
  • Page 23: Turning On The Radio

    68012005051-FV Chapter 2 : Getting Started Turning On the Radio Procedure: 1 Rotate the On/Off/Volume Control Knob clockwise until you hear a click. • If the power-up test is successful, you see a splash screen on the radio display, followed by the Home screen and the Codeplug Alias.
  • Page 24: Chapter 3: Radio Controls

    68012005051-FV Chapter 3 : Radio Controls Chapter 3 Radio Controls This chapter explains the buttons and functions to control the radio. Radio Parts and Controls Antenna LED Indicator...
  • Page 25 68012005051-FV Chapter 3 : Radio Controls Top (Orange) Button This button is usually programmed as the Emergency button. Microphone Accessory Connector Home Button Press to return to the Home screen. 4-Way Navigation Buttons Use these buttons for list scrolling and navigating around the menu hierarchy. Battery Latch Keypad Use the keypad to enter alphanumeric characters for dialing, contact entries, and text...
  • Page 26: Text Entry Icons

    68012005051-FV Chapter 3 : Radio Controls Main Speaker Microphone Top Display 16-Position Select Knob This knob is usually programmed for channel selection. Text Entry Icons This feature only supports Model 3.5. Your radio uses icons to indicate the selected text entry mode. Table 1: Text Entry Modes Icon Description...
  • Page 27: Programmable Features

    68012005051-FV Chapter 3 : Radio Controls Mode Output Hexadecimal 3 D E F 4 key Numeric Uppercase G H I Lowercase g h i 5 key Numeric Uppercase J K L Lowercase j k l 6 key Numeric Uppercase M N O Lowercase m n o 7 key...
  • Page 28 68012005051-FV Chapter 3 : Radio Controls Bluetooth Audio Reroute Toggles the audio route between the radio speaker or the Remote Speaker Microphone and the Bluetooth headset. Bluetooth Headset PTT Keys up the Bluetooth Headset microphone. Bluetooth Data Devices Pairs your radio with other data devices for data transfer. Bluetooth Clear All Pairing Clears all Bluetooth pairing information on your radio.
  • Page 29 68012005051-FV Chapter 3 : Radio Controls Mode Select Long press – Assigns the current zone and channel to a programmable button. Short press – Changes to the preset Mode Select zone and channel. Monitor (Conventional Only) Monitors a selected channel for all radio traffic until the function is disabled. Multiple Private Line (Conventional Only) Allows you to access the Multiple Private Line lists.
  • Page 30: Assignable Settings Or Utility Functions

    68012005051-FV Chapter 3 : Radio Controls Site Display/Search (Trunking Only) Short press – Displays the current site ID and Received Signal Strength Indicator (RSSI) value. Long press – Performs site search for Automatic Multiple Site Select (AMSS) or SmartZone operation (long press). Site Lock/Unlock (Trunking Only) Allows your radio to lock onto a specific site.
  • Page 31: Chapter 4: Status Indicators

    68012005051-FV Status Indicators Chapter 4 Status Indicators This section explains the status indicators of the radio. Battery Charge Status Your radio indicates the battery charge status through LED, sounds, and the battery icon on the display. You can also check the battery charge status by using the menu entry. Battery Protection is activated when the battery is low or operating in extremely low temperatures to extend radio communication.
  • Page 32: Accessing The Battery Info Screen

    68012005051-FV Chapter 4 : Status Indicators Gauge Battery Charge 11% to 25% Top Display: 10% or less (The gauge begins blinking at 10%) Top Display: 4.1.2 Accessing the Battery Info screen This feature displays the current capacity and charges cycles of your battery when an IMPRES battery is powering your radio.
  • Page 33: Led Indications

    68012005051-FV Chapter 4 : Status Indicators This feature is enabled through CPS configuration. Check with your dealer or system administrator for more information. LED Indications The LED indications represent the operational status of your radio. A qualified technician can permanently disable the LED indication by programming it. Table 3: LED Indications Indication Status...
  • Page 34 68012005051-FV Chapter 4 : Status Indicators Icon Description Top Display: The radio received an Individual Call. For IMPRES battery operation only – the icon shown indicates the charge remaining in the battery. For all battery operation – the icon blinks when the battery is low. Top Display: The number of bars represents the received signal strength of the current site in trunking mode.
  • Page 35 68012005051-FV Chapter 4 : Status Indicators Icon Description Blinking dot The radio detects activity on the designated Priority-One channel. Top Display: Steady dot The radio detects activity on the designated Priority-Two channel. Top Display: On steady The radio is in View mode Blinking The radio is in Program mode.
  • Page 36 68012005051-FV Chapter 4 : Status Indicators Icon Description Blinking Receiving an encrypted voice call. The radio is operating in an Advanced Encryption Standard (AES) secure channel. The AES operation is cleared. Blinking The radio is receiving an AES-encrypted voice call. The Global Position System (GPS) feature is enabled, and the signal is available.
  • Page 37: Tms Status Icons

    68012005051-FV Chapter 4 : Status Indicators Icon Description The radio is receiving and transmitting the broadband signal. The ARS user logged on successfully with the broadband system. The radio is receiving a broadband signal with the ARS user logged on. The radio is transmitting a broadband signal with the ARS user logged on.
  • Page 38: Call Type Icons

    68012005051-FV Chapter 4 : Status Indicators Icon Description The index of the current message that you are viewing. Call Type Icons This feature only supports Model 3.5 and Model 2.5. Call icons appear on the radio display when you make or receive a call, or view selected call lists. The call icons indicate the call types associated with an alias or ID.
  • Page 39: Alert Tones

    68012005051-FV Chapter 4 : Status Indicators Backlight and Notification When Bar Color The radio initiates the Fall Alert (Man Down) Post-Alert timer. The radio initiates Fireground Evacuation alarm. Orange Emergency Alerts The radio initiates an emergency alarm or call. The radio receives an emergency alarm or call. The radio initiates the Fall Alert (Man Down) Post-Alert timer.
  • Page 40 68012005051-FV Chapter 4 : Status Indicators You Hear Tone Name Heard A Group of Busy When system is busy. Low-Pitch- ed Tones Short, Me- Valid Key-Press When a correct key is pressed. dium-Pitch- Radio Self Test Pass When radio passes its power-up self test. ed Tone Clear Voice At beginning of a non-coded communication.
  • Page 41: Phone Call Displays And Alerts

    68012005051-FV Chapter 4 : Status Indicators You Hear Tone Name Heard Unique, Priority Status When a priority message is received. High-Pitch- ed Chirp Incremen- Bluetooth Paired When Bluetooth accessory is paired with the radio. tal- Pitched Bluetooth Connected When Bluetooth accessory is connected to the radio. Tone Decremen- Bluetooth Unpaired...
  • Page 42: Display Color Change On Channel

    68012005051-FV Chapter 4 : Status Indicators You Hear You See When Notes A High- – When you release the The radio indicates to the landline par- Pitched PTT button. ty that the caller may begin talking. Tone NOTE: You have the option of sending additional digits (overdial), such as an extension number, credit card, or PIN numbers to the phone system.
  • Page 43: Chapter 5: General Radio Operation

    68012005051-FV General Radio Operation Chapter 5 General Radio Operation This chapter explains the general operations of your radio. Selecting a Zone When and where to use: A zone is a group of channels. Do one of the following to select a radio channel.
  • Page 44: Selecting A Channel By Using Channel Search Button

    68012005051-FV Chapter 5 : General Radio Operation b. Press the Menu Select button directly below Chan . to the required channel or use the keypad to enter the channel number. If the channel number entered is unprogrammed, the display shows Invalid entry. Repeat this step.
  • Page 45: Saving A Zone And A Channel To A Softkey

    68012005051-FV Chapter 5 : General Radio Operation 5.4.1 Saving a Zone and a Channel to a Softkey When and where to use: Five softkeys are available for you to save the frequently used zone and channel. Procedure: 1 Toggle from your current zone and channel to the required zone and channel. or to MS1, MS2 ...
  • Page 46: Receiving And Responding To A Private Call (Trunking Only)

    68012005051-FV Chapter 5 : General Radio Operation • For Trunking system, the display shows the caller alias or ID. Procedure: 1 Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from your mouth. 2 Press the PTT button to respond to the call. The LED lights up solid red.
  • Page 47: Making A Talkgroup Call

    68012005051-FV Chapter 5 : General Radio Operation • The preprogrammed Zone switch. • The 16-Position Select Channel Knob. • A preprogrammed button. • The Contacts list (see Viewing Details of a Contact on page 64). 5.6.1 Making a Talkgroup Call Procedure: 1 Turn the 16-Position Select Channel Knob to select the channel with the desired talkgroup.
  • Page 48: Making An Enhanced Private Call (Trunking Only)

    68012005051-FV Chapter 5 : General Radio Operation If no acknowledgment is received, the display shows No acknowledge. 5 Press and hold the PTT button to talk. Release the PTT button to listen. 6 Press to return to the Home screen. 5.6.3 Making an Enhanced Private Call (Trunking Only) Prerequisites: Your radio must be preprogrammed to allow you to use this feature.
  • Page 49: Switching Between Repeater Or Direct Operation Button

    68012005051-FV Chapter 5 : General Radio Operation • or to Phon, and press the Menu Select button directly below Phon. The display shows the last transmitted or received ID. 2 To select the required ID, perform one of the following actions: •...
  • Page 50: Monitoring Conventional Mode

    68012005051-FV Chapter 5 : General Radio Operation c. Adjust the Volume Control Knob if necessary. d. Release the Volume Set button. e. Press and hold the PTT button to transmit. The LED lights up solid red. f. Release the PTT button to receive (listen). •...
  • Page 51: Chapter 6: Additional Performance Enhancement

    68012005051-FV Additional Performance Enhancement Chapter 6 Additional Performance Enhancement The following performance enhancements are some of the latest creations designed to enhance the security, quality, and efficiency of the radios. ASTRO 25 Enhanced Data ASTRO 25 Enhanced Data is optimized to handle different message sizes and variable update rates from different applications of the radio.
  • Page 52: P25 Digital Vehicular Repeater System

    P25 Digital Vehicular Repeater System Motorola Solutions offers an MSI Certified APX compatible, third party, P25 Digital Vehicular Repeater System (DVRS). This provides low-cost portable radio coverage in areas where only mobile radio coverage is available.
  • Page 53: Chapter 7: Advanced Features

    68012005051-FV Advanced Features Chapter 7 Advanced Features This chapter explains the operations of the features available in your radio. Advanced Call Features This chapter explains the operations of the call features available in your radio. 7.1.1 Selective Call (ASTRO Conventional Only) A Selective Call is a call from an individual radio to another individual radio with privacy.
  • Page 54: Talkgroup Call Feature (Conventional Only)

    68012005051-FV Chapter 7 : Advanced Features 3 Hold the radio vertically 1 to 2 inches (2.5 to 5.0 cm) from your mouth. 4 Press and hold the PTT button to start the Selective Call. The display shows the ID of the target radio. 5 Release the PTT button to listen.
  • Page 55: Making Priority Dispatch Calls

    68012005051-FV Chapter 7 : Advanced Features • or to Sts and press the Menu Select button directly below Sts. The display shows the last acknowledged status call, or the first status in the list. 2 Perform one of the following actions: •...
  • Page 56: Classification Of Regrouped Radios

    68012005051-FV Chapter 7 : Advanced Features If you access a zone or channel that has been reserved as a dynamically regrouped mode for other users, you hear an invalid tone. 7.1.5.1 Classification of Regrouped Radios The dispatcher can classify regrouped radios into Select Enabled or Select Disabled categories. Select Enabled Select-enabled radios are free to change to any available channel, including the dynamic- regrouping channel, once you have selected the dynamic-regrouping position.
  • Page 57: Saving A Channel In The Dynamic Zone From List Selection

    68012005051-FV Chapter 7 : Advanced Features to <# Dynamic Zone Channels>. 3 Perform one of the following actions: • Press the Menu Select button below Sel to select. • Press the Menu Select button below Exit to exit. If you have selected one of the Dynamic Zone Channels list, the display returns to Home screen with the selected <# Dynamic Zone Channels>...
  • Page 58: Deleting A Channel In The Dynamic Zone

    68012005051-FV Chapter 7 : Advanced Features 4 Use the keypad to type or edit the channel name. 5 Press the Menu Select button directly below Srch once the entry is done to initiate searching. You can cancel this operation at this step by pressing the Menu Select button directly below Cncl to return to Search Options screen.
  • Page 59: Remote Monitor

    68012005051-FV Chapter 7 : Advanced Features • If the radio is compatible, the radio displays Target radio connected. Proceed to step • If the radio is not compatible, the radio displays Target radio incompatible. Press the Menu Select button directly below Ok and the radio returns to the previous screen. Once connected, the zone clone status is displayed on the right.
  • Page 60: Making A Private Call From Contacts

    68012005051-FV Chapter 7 : Advanced Features • Private Call • Selective Call • Call Alert Each entry within Contacts contains the following information: • Call Alias (Name) • Call ID (Number) • Call Type (Icon) • WACN ID (ASTRO 25 Trunking IDs only) •...
  • Page 61: Adding A New Contact Entry

    68012005051-FV Chapter 7 : Advanced Features 7.3.2 Adding a New Contact Entry Procedure: or to Cnts and press the Menu Select button directly below Cnts . The entries are alphabetically sorted. to [New Contact] and press the Menu Select button directly below Sel . to Name and press the Menu Select button directly below Edit.
  • Page 62: Adding A Contact To A Call List

    68012005051-FV Chapter 7 : Advanced Features 4 Select the Menu Select button directly below Yes to delete the entry, or No to cancel and return to the main screen of Contacts. The display shows <Entry> deleted and the radio returns to the main screen of Contacts. 7.3.4 Adding a Contact to a Call List Procedure:...
  • Page 63: Editing An Entry Alias

    68012005051-FV Chapter 7 : Advanced Features 7.3.6.1 Editing an Entry Alias Procedure: or to Cnts and press the Menu Select button directly below Cnts . The entries are alphabetically sorted. to the entry you want to edit and press the Menu Select button directly below Optn . to Edit and press the Menu Select button directly below Sel .
  • Page 64: Viewing Details Of A Contact

    68012005051-FV Chapter 7 : Advanced Features to Type and press the Menu Select button directly below Edit . to choose from the list of call types given and press the Menu Select button directly below Ok . The display returns to the Edit Contact screen. 6 Press the Menu Select button directly below Done to save your changes and return to the main screen of Contacts.
  • Page 65: Editing The Scan List

    68012005051-FV Chapter 7 : Advanced Features 7.4.3 Editing the Scan List When and where to use: This feature allows you to change scan list members and priorities. Procedure: 1 Perform one of the following actions: • Long press the preprogrammed Scan List Programming button (side button). •...
  • Page 66: Viewing And Changing The Priority Status

    68012005051-FV Chapter 7 : Advanced Features 4 Perform one of the following actions: • to select more list members whose scan status you want to change. • Use the keypad to go directly to that scan list member. • Use the 16-Position Select knob to select another scan list member. 5 Move the Scan List Programming switch out of programming position.
  • Page 67: Making A Dynamic Priority Change (Conventional Scan Only)

    68012005051-FV Chapter 7 : Advanced Features If the scan is disabled, the display shows Scan Off. The radio returns to the Home screen. 7.5.2 Making a Dynamic Priority Change (Conventional Scan Only) When and where to use: While the radio is scanning, the dynamic priority change feature allows you to temporarily change any channel in a scan list (except for the Priority-One channel) to the Priority-Two channel.
  • Page 68: Receiving A Call Alert Page

    68012005051-FV Chapter 7 : Advanced Features Depending on how your radio is programmed, if there is no answer after the maximum ring time or when you press the PTT button for an Enhanced Private Call, the radio automatically sends a call alert page.
  • Page 69: Recent Calls

    68012005051-FV Chapter 7 : Advanced Features If the call alert page is not acknowledged, you hear a low tone and the display shows No acknowledge. Press the Menu Select button directly below Ok to return to the main screen of Contacts. •...
  • Page 70: Instant Recall

    68012005051-FV Chapter 7 : Advanced Features d. To return to the Home screen, press the Menu Select button directly below Exit, press or the PTT button. • Viewing recent calls using the radio menu: or to Rcnt. b. Press the Menu Select button directly below Rcnt to access the Recent Calls feature screen.
  • Page 71: In-Call User Alert

    68012005051-FV Chapter 7 : Advanced Features to the required call and press the Menu Select button directly below Play. Radio playback the selected call and auto playback the saved calls in chronological order. d. Press the Menu Select button directly below Stop to stop the radio playback. e.
  • Page 72: Initiating Quick Call Ii Transmissions

    68012005051-FV Chapter 7 : Advanced Features The broadcasting dispatcher or radio user can select this programmed Quik Call II tone transmission to be sent to an individual talkgroup or over the entire system. Each tone is distinctive to indicate different situation or different broadcaster.
  • Page 73: Special Considerations For Emergency Operation

    68012005051-FV Chapter 7 : Advanced Features Fall Alert (Man Down) is an alternate way to activate the Emergency feature. For more information, see Man Down (Fall Alert) on page For more information, contact your system administrator. 7.10.1 Special Considerations for Emergency Operation The following scenarios apply during Emergency operation: Table 6: Emergency Operation Scenarios Scenario...
  • Page 74: Remote Emergency

    68012005051-FV Chapter 7 : Advanced Features Procedure: 1 Perform one of the following actions: If… Then… If the emergency mode is initi- press and hold the Side Button 1 and press the Emer- ated by other radios, gency button. If the emergency mode is initi- Perform one of the following actions: ated by the Supervisor, •...
  • Page 75: Sending Remote Emergency By Entering The User Id

    68012005051-FV Chapter 7 : Advanced Features If your radio does not receive acknowledgment from the target radio, your radio displays a negative notification. 7.10.5.2 Sending Remote Emergency by Entering the User ID Procedure: 1 Press the programmed Remote Emergency button. 2 Press any digit key.
  • Page 76: Sending An Emergency Alarm

    68012005051-FV Chapter 7 : Advanced Features 7.10.6 Sending an Emergency Alarm When and where to use: This feature allows you to send a data transmission, which identifies the radio sending the emergency, to the dispatcher. NOTE: The default timer of Emergency button press to activate Emergency is 50 milliseconds. This timer is programmable from 50–6200 milliseconds by a qualified technician.
  • Page 77: Sending An Emergency Alarm With Emergency Call

    68012005051-FV Chapter 7 : Advanced Features Your radio microphone is automatically activated, allowing you to communicate with the group of radios without pressing the PTT button. This activated microphone state is also known as hot mic. The hot mic applies to the first voice transmission from your radio during the Emergency call. For subsequent transmissions in the same Emergency call, you must press the PTT button.
  • Page 78: Sending An Emergency Alarm And Call With Hot Mic

    68012005051-FV Chapter 7 : Advanced Features 7.10.10 Sending An Emergency Alarm and Call with Hot Mic This feature allows you to send an Emergency Alarm and Call with hot mic to a group of radios. When and where to use: Your radio must be programmed for this type of operation. When indirect PTT such as Hot Mic is activated, the audio transmission can be configured in CPS to route the audio to the radio internal microphone, wired RSM microphone, or Bluetooth wireless microphone.
  • Page 79: Receiving Emergency Beacons

    68012005051-FV Chapter 7 : Advanced Features For more information, contact your system administrator. 7.10.12.1 Receiving Emergency Beacons When and where to use: The receiving radio displays Beacon Received, the transmitting radio Contact ID, or alias. The following methods are options on how to receive the beacon. Procedure: 1 Perform one of the following: •...
  • Page 80: Radio Alerts When Fall Alert Is Triggered

    68012005051-FV Chapter 7 : Advanced Features 7.12.1 Radio Alerts When Fall Alert is Triggered When Fall Alert is triggered, your radio plays an alert tone, and the display shows Fall-Alert. NOTE: If the radio is programmed for Surveillance Mode, the radio inhibits all tones and lights including the Fall Alert tones.
  • Page 81: Automatic Registration Service

    68012005051-FV Chapter 7 : Advanced Features • If motion sensitivity is enabled, shake the radio. 7.13 Automatic Registration Service Automatic Registration Service (ARS) provides an automated data application registration for your radio. When you turn on the radio, the device automatically registers with the server. Data applications within the fixed network determine the presence of a device on the system and send data to the device.
  • Page 82: Logging In As A User

    68012005051-FV Chapter 7 : Advanced Features 7.13.2.1 Logging In as a User Procedure: 1 Perform one of the following actions: • Press the preprogrammed User Login button. • or to User and press the Menu Select button directly below User. The display shows the User Login screen.
  • Page 83: Text Messaging Service

    68012005051-FV Chapter 7 : Advanced Features When and where to use: NOTE: Private data refers to all messages in the text messaging Inbox, Draft, and Sent folder. The next user is able to access the Inbox, Draft, and Sent messages if private data is not deleted.
  • Page 84: Composing And Sending A New Text Message

    68012005051-FV Chapter 7 : Advanced Features 7.14.2 Composing and Sending a New Text Message Procedure: or to TMS. 2 Press the Menu Select button directly below TMS to access the TMS feature screen. 3 Perform one of the following actions: •...
  • Page 85 68012005051-FV Chapter 7 : Advanced Features Each Quick Text message or Query has a maximum length of 50 characters. You can select the required text from the Quick Text or Query. Procedure: 1 Perform one of the following actions: • To access this feature using the preprogrammed button, press the preprogrammed Quick Text button and proceed to step...
  • Page 86: Priority Status And Request Reply For New Text Messages

    68012005051-FV Chapter 7 : Advanced Features 7.14.4 Priority Status and Request Reply for New Text Messages Before sending your message, you can add a priority status, request reply, or both to your message. 7.14.4.1 Appending a Priority Status to a Text Message Prerequisites: Ensure that an outgoing message is composed to allow you to perform this procedure.
  • Page 87: Appending A Priority Status And A Reply Request To A Text Message

    68012005051-FV Chapter 7 : Advanced Features Procedure: 1 Press the Menu Select button directly below Optn . to No Req Reply and press the Menu Select button directly below Sel to remove the priority status from the message. The display shows the normal message icon on the label bar. 7.14.4.5 Appending a Priority Status and a Reply Request to a Text Message Prerequisites: Ensure that an outgoing message is composed to allow you to perform this procedure.
  • Page 88: Viewing A Text Message From The Inbox

    68012005051-FV Chapter 7 : Advanced Features When the new message icon appears and the display shows momentary New msg, press the Menu Select button directly below TMS to access the Inbox. The display shows a list of aliases or IDs, with the sender of the latest received message on top. 7.14.4.8 Viewing a Text Message from the Inbox When and where to use: The Inbox can hold up to 30 messages.
  • Page 89: Accessing The Drafts Folder

    68012005051-FV Chapter 7 : Advanced Features • to Quick Text and press the Menu Select button directly below Sel for a predefined message. • to scroll through the list of predefined messages and press the Menu Select button directly below Sel to select the required message. One of the following scenarios occurs: •...
  • Page 90 68012005051-FV Chapter 7 : Advanced Features 7.14.4.11.1 Viewing a Sent Text Message Procedure: 1 Perform one of the following actions: • Press the preprogrammed Data Feature button or the TMS Feature button to access the TMS feature screen. • to TMS and press the Menu Select button directly below TMS to access the TMS feature screen.
  • Page 91: Deleting A Text Message

    ASTRO 25 Advanced Messaging Solution The ASTRO 25 Advanced Messaging Solution allows you to quickly send and receive messages and run database queries directly from your data-enabled Motorola Solutions two-way radios. Federal mandate requires Two-Factor Authentication when querying Federal and State databases.
  • Page 92: Logging In Using The Two-Factor Authentication

    68012005051-FV Chapter 7 : Advanced Features Your user name, unit ID, and password must be provisioned in PremierOne ™ . Your user account in PremierOne must be linked to an ARS account specifying a token to be used with the Two-Factor passcode.
  • Page 93: Logging Out Of Two-Factor Authentication

    68012005051-FV Chapter 7 : Advanced Features 7 Press the Menu Select button directly below Logn. The display shows In progress. If the login fails, the display shows momentary 2F pscd failed. Press the Menu Select button directly below Pscd to re-enter passcode. If successful, the display shows User Login screen with 2F logged in status to indicate Two-Factor Authentication complete.
  • Page 94: Receiving A Query

    68012005051-FV Chapter 7 : Advanced Features 3 Perform one of the following actions: • to Compose and press the Menu Select button directly below Sel. • Press the Menu Select button directly below Exit to return to the Home screen. to Query and press the Menu Select button directly below Sel for a predefined message.
  • Page 95: Selecting Secure Transmissions

    68012005051-FV Chapter 7 : Advanced Features 7.16.1 Selecting Secure Transmissions Procedure: Turn the preprogrammed Secure/Clear switch to the secure position. • If the selected channel is preprogrammed for clear-only operation, when you press the PTT button, you hear an invalid mode tone and the display shows Clear TX only. •...
  • Page 96: Multikey Feature

    68012005051-FV Chapter 7 : Advanced Features The display shows Keyloading and all other radio functions, except for power down, backlight, and volume, are locked out. NOTE: If the Multi-system Over-the-Air Rekeying feature is in use, the ASTRO profile name is displayed below Keyloading.
  • Page 97: Selecting Keysets

    68012005051-FV Chapter 7 : Advanced Features 7.16.3.4 Selecting Keysets When and where to use: This feature allows you to select one or more groups of several encryption keys from among the available keys stored in the radio. For example, you could have a group of three keys structured to one keyset, and another group of three different keys structured to another keyset;...
  • Page 98: Requesting An Over-The-Air Rekey

    68012005051-FV Chapter 7 : Advanced Features • Erasing the single key in radios with the single-key option and erasing all keys in radios with the multikey option by using the preprogrammed Top Side (Select) button and Top (Orange) button: a. Press and hold the Top Side (Select) button. b.
  • Page 99: Infinite Ukek Retention

    68012005051-FV Chapter 7 : Advanced Features 7.16.3.8 Infinite UKEK Retention This feature enables Unique Key Encryption Key (UKEK) to be permanently stored in the radio even when all the encryption keys are erased. Without this UKEK key, the radio cannot be rekeyed over the air.
  • Page 100: Enabling Or Disabling Radio Lock (Secure Radios Only)

    68012005051-FV Chapter 7 : Advanced Features 7.17.1 Enabling or Disabling Radio Lock (Secure Radios Only) Procedure: or to Logf. 2 Press the Menu Select button directly below Logf. One of the following results occur: • The display shows Pswd enabled, indicating that the radio lock feature is enabled. •...
  • Page 101: Radio Stun And Kill

    68012005051-FV Chapter 7 : Advanced Features 4 Press the Menu Select button directly below Sel . 5 Enter the old password. 6 Press the Menu Select button directly below Ok . 7 Enter the new password. 8 Press the Menu Select button directly below Ok . 9 Re-enter the new password.
  • Page 102: Radio Kill

    68012005051-FV Chapter 7 : Advanced Features If the receiving radio does not have encryption key to decrypt the received encrypted command, your radio display shows Decrypt failed. If the receiving radio is powered off or already killed, your radio display shows No Acknowledgment.
  • Page 103: Using Direct Kill To Kill Your Own Radio

    68012005051-FV Chapter 7 : Advanced Features 7.18.2.2 Using Direct Kill to Kill Your Own Radio When and where to use: Direct Kill allows you to make your own radio inoperable. Procedure: Press and hold the Top Side button then press the Orange button until the display turns blank and becomes inoperable.
  • Page 104: Location Format

    68012005051-FV Chapter 7 : Advanced Features The radio also stores four programmed waypoints. These coordinates cannot be deleted. The following table shows the differences between programmable waypoints and programmed waypoints. Programmable Waypoints Programmed Waypoints User-configurable location coordinates. Fixed location coordinates: •...
  • Page 105: Selecting Location Format

    68012005051-FV Chapter 7 : Advanced Features Press the preprogrammed GPS button to toggle the Outdoor Location feature to on or follow the following procedure to access this feature using the radio menu. Procedure: or to Loc. 2 Press the Menu Select button directly below Loc. The display shows Location off.
  • Page 106: Viewing A Saved Waypoint

    68012005051-FV Chapter 7 : Advanced Features Procedure: 1 Press the Menu Select button directly below Optn. 2 Perform one of the following actions: • to Save as Waypt and press the Menu Select button directly below Sel. • to Save as Home and press the Menu Select button directly below Sel and proceed to step •...
  • Page 107: Editing The Coordinates Of A Waypoint

    68012005051-FV Chapter 7 : Advanced Features Procedure: 1 Press the Menu Select button directly below Optn. to Waypoints and press the Menu Select button directly below Sel . The display shows a list of waypoints. to the required saved waypoint, and press the Menu Select button directly below Optn. to Edit name and press the Menu Select button directly below Sel .
  • Page 108: Deleting A Single Saved Waypoint

    68012005051-FV Chapter 7 : Advanced Features 6 Utilize the following control buttons or menu to change the number/coordinates if required then press the Menu Select button directly below Ok once. • Press to move one space to the left. • Press to move one space to the right.
  • Page 109: Measuring The Distance And Bearing From A Saved Waypoint

    68012005051-FV Chapter 7 : Advanced Features to the required saved waypoint, and press the Menu Select button directly below Optn. to Delete All and press the Menu Select button directly below Sel . The display shows Delete All saved waypnts Confirm?. 5 Press the Menu Select button directly below Yes to delete all waypoints or press the Menu Select button directly below No to return to the Waypoints main screen.
  • Page 110: Mission Critical Geofence (Astro 25 Trunking)

    68012005051-FV Chapter 7 : Advanced Features • Longitude and latitude • Relative distance or direction Short location coordinates • PTT ID (optional) • Longitude and latitude NOTE: If the transmitting radio is stale at the location after a period of time, the receiving radio display shows the last known location.
  • Page 111: Mission Critical Geofence

    68012005051-FV Chapter 7 : Advanced Features The system sends a message to your radio. The radio display shows a direct text message content without any user operation. This message indicates that you are currently present in a Geofence area. This TMS remains open on the display until user presses exit/home to exit this screen. NOTE: If there is another incoming text message before you exit the previous message, the message screen is refreshed to show the latest message.
  • Page 112: Trunking System Controls

    68012005051-FV Chapter 7 : Advanced Features a preprogrammed VA tone. The radio displays the new channel and a message is received to indicate the changes. 7.22 Trunking System Controls This chapter explains the trunking system control features in your radio. 7.22.1 Operating in Failsoft System When and where to use:...
  • Page 113: Site Trunking Feature

    68012005051-FV Chapter 7 : Advanced Features • Motorola Solutions VML750 • Sierra Wireless MP70 • Sierra Wireless GX450 Your radio displays the SmartConnect capable icon on the SmartConnect enabled channel. While switching from LMR to SmartConnect, your radio displays Searching Site. When the device is connected to an available network, your radio displays the SmartConnect Connection icon.
  • Page 114: Viewing The Current Site

    This feature allows your radio to extend its functionality by connecting to external proprietary Motorola Solutions accessories. Use Motorola Solutions proprietary Mission Critical Wireless (MCW) devices with APX radios during Mission Critical operations. Other Bluetooth devices may or may not meet the mission critical standard.
  • Page 115: Pin Authentication In Pairing

    Obstacles that can cause an obstruction in the line-of-sight include trees, buildings, mountains, cars, and others. For high degree of reliability, Motorola Solutions recommends to NOT separate the radio and the accessory. At the fringe areas of reception, both voice and tone quality will start to sound "garbled" or "broken". To correct this problem, simply position the accessory and radio closer to each other (within the 10 meter defined range) to re-establish clear audio reception.
  • Page 116: Pairing The Authentication Pin With The Generated Numeric Pin

    68012005051-FV Chapter 7 : Advanced Features • To accept, press the Menu Select button below Ok. • To reject, press the Menu Select button below Cncl. Your radio only supports HSP, DUN, PAN, and SPP Bluetooth profiles. When the pairing timer expires, the display shows <Device Friendly Name> pair canceled and return to Home screen.
  • Page 117: Viewing And Clearing The Bluetooth Device Information

    68012005051-FV Chapter 7 : Advanced Features 2 Press Ok to continue pairing the radio and the device. The pairing process can be canceled by pressing the Menu Select button below Cncl. If successful, the display shows Pairing in progress,<Device Friendly Name>...
  • Page 118: Editing The Bluetooth Friendly Name

    68012005051-FV Chapter 7 : Advanced Features 7.23.4 Editing the Bluetooth Friendly Name Prerequisites: Your radio must be preprogrammed to allow you to use this feature. Procedure: or to BT. Press the Menu Select button directly below BT to access the Bluetooth feature screen.
  • Page 119: Vest Pierced Sensor

    68012005051-FV Chapter 7 : Advanced Features 7.23.5.3 Vest Pierced Sensor Vest Pierced sensor is located inside a bulletproof vest. The sensor reports an event to the radio when the vest is pierced due to various causes such as bullet shot or knife stabbing. This feature allows the radio to send an emergency message and Over-The-Air (OTA) notification when a vest piercing event occurs.
  • Page 120: Astro 25 (P25) Programming Over Project 25 (Pop25)

    68012005051-FV Chapter 7 : Advanced Features 7.23.5.5.2 Disabling the Sensor Permanently Procedure: 1 Long-press the preprogrammed Sensor button or the preprogrammed Menu Select button to permanently disable the sensors. A tone sounds and the radio displays Sensor Off. While in this state, no events is reported over-the-air (OTA), regardless of how many times the gun is drawn, re-inserted or weapon is fired.
  • Page 121: Voice Announcement

    68012005051-FV Chapter 7 : Advanced Features upgrade, the process only takes a few seconds. In the case of firmware upgrade, the installation takes several minutes. NOTE: The radio cannot be used while the upgrade is being installed. Therefore, make sure to only accept the upgrade at a convenient time when immediate radio use is not required.
  • Page 122: Sending Ssa Notification To Single Site By Manual Entry

    68012005051-FV Chapter 7 : Advanced Features to the desired Site Alias. Press the Menu Select button directly below Sel. The display shows the Select Alert screen. to select the desired Alert Alias and press the Menu Select button directly below Send. The display shows Sending req.
  • Page 123: Sending Ssa Notification To All Sites

    68012005051-FV Chapter 7 : Advanced Features 7.26.3 Sending SSA Notification to All Sites Procedure: or to SSA. 2 Press the Menu Select button directly below SSA. The display shows the Site Alert screen. to Start Alert and press the Menu Select button directly below Sel. The display shows the Select Site screen.
  • Page 124: Stopping Ssa Notification Of A Single Site

    68012005051-FV Chapter 7 : Advanced Features 6 To return to the Home screen, press the Menu Select button directly below Exit. If you are at the site designated to receive this alert, you can hear an alert tone repeated periodically. The display shows the <Alert Alias>...
  • Page 125: Stopping Ssa Notification Of All Sites

    68012005051-FV Chapter 7 : Advanced Features • If the request is successful, the display shows Req successful. • If the single site is not available, the display shows <Site ID> not available. • If the single site does not exist, the display shows <Site ID> does not exist. 6 To return to the Home screen, press the Menu Select button directly below Exit.
  • Page 126: Wi-Fi

    68012005051-FV Chapter 7 : Advanced Features 5 To return to the Home screen, press the Menu Select button directly below Exit. The SSA Alert for all available sites stop. 7.27 Wi-Fi You can connect your radio to a Wi-Fi network for wireless programming and SmartConnect features. Your service administrator programs the Wi-Fi Service Set Identifier (SSID) or network name that your radio can connect to.
  • Page 127: Checking The Wi-Fi Configuration And Status Of The Radio

    68012005051-FV Chapter 7 : Advanced Features 4 Press to scroll through the list and press Menu Select button directly below Sel to connect to the selected network. Radio displays the WiFi status, the selected network, and the signal strength. NOTE: The List and RfshRefreshRFSH buttons are not available when WiFi is searching or connecting to network.
  • Page 128: Selecting A Basic Zone Bank

    68012005051-FV Chapter 7 : Advanced Features 7.28.2 Selecting a Basic Zone Bank Prerequisites: The Basic Zone Select feature must be programmed to the 3-Position A/B/C Switch, while the Basic Zone Bank feature must be programmed to any side button or Top (Orange) button to use this feature.
  • Page 129: Selecting An Enhanced Zone Bank

    68012005051-FV Chapter 7 : Advanced Features Do one of the following to select a radio profile. You can use the options interchangeably depending on your preference and the programmed functions. Procedure: • Selecting a radio profile using the preprogrammed Profile button: a.
  • Page 130: Selecting The Audio Speaker

    68012005051-FV Chapter 7 : Advanced Features 7.28.6 Selecting the Audio Speaker Prerequisites: Your radio must be preprogrammed to allow you to use this feature. When and where to use: This feature allows you to select the speaker route for the radio's audio from either the main or the secondary speaker using the radio profile settings.
  • Page 131: Setting Up The Radio Display And Visual Indicators To Suit Night Vision Goggles

    68012005051-FV Chapter 7 : Advanced Features You can also maintain a minimum backlight level on the radio front display, depending on how your radio is programmed. NOTE: The backlight setting also affects the Menu Select buttons, the Navigation button, and the keypad backlighting accordingly.
  • Page 132: Locking And Unlocking The Keypad And Controls

    68012005051-FV Chapter 7 : Advanced Features d. To select the required radio profile, press the Menu Select button directly below Sel or to exit the screen without making any changes, press the Menu Select button directly below Exit. The radio returns to the Home screen with NVG display mode. The profile name on the Home screen indicates the current selected radio profile.
  • Page 133: Using The Time-Out Timer

    68012005051-FV Chapter 7 : Advanced Features b. Press the Menu Select button directly below VMut. The display shows Voice mute off, and you hear a short tone, indicating that the feature is disabled or the display shows Voice mute on, and you hear a short tone, indicating that the feature is enabled.
  • Page 134: Conventional Squelch Operation

    68012005051-FV Chapter 7 : Advanced Features • or one or more times to move to an item you wish to change. to change the selected item. • Press the Menu Select button directly below Exit to exit the screen without making any changes and return to the Home screen.
  • Page 135: Using The Pl Defeat Feature

    68012005051-FV Chapter 7 : Advanced Features 3 Perform one of the following actions: • Press the Menu Select button directly below “+” to increase the squelch volume. • Press the Menu Select button directly below “-” to decrease the squelch volume. 4 Press to return to the selected channel.
  • Page 136: Transmit Inhibit

    68012005051-FV Chapter 7 : Advanced Features Mode Description keying the radio (press PTT button twice within the programmed time limit). 7.28.18 Transmit Inhibit The Transmit Inhibit feature allows you to stop all transmission including voice and data. The radio can receive messages but is not able to reply the acknowledgment request of the received message.
  • Page 137: General Radio Information

    68012005051-FV Chapter 7 : Advanced Features 7.28.19 General Radio Information Use this menu item to view the general information of your radio. The available information is: • Radio Information • IP Display • Control Assignments • Soft ID (if enabled) 7.28.19.1 Accessing the Radio Information When and where to use: This feature displays the following radio information:...
  • Page 138: Viewing The Ip Information

    68012005051-FV Chapter 7 : Advanced Features • to scroll through the various information. • To return to the previous screen, press the Menu Select button directly below Back. • Press to return to the Home screen . 7.28.19.2 Viewing the IP Information When and where to use: This feature displays the device name, IP address, and status of your radio.
  • Page 139: Editing The Soft Id

    68012005051-FV Chapter 7 : Advanced Features 7.28.19.4 Editing the Soft ID Prerequisites: Your radio must be preprogrammed to allow you to use this feature. When and where to use: This feature allows you to change your username. Procedure: 1 Perform one of the following actions: •...
  • Page 140: Changing Password (Optional)

    The radio displays Radio Param and Zn/Ch Param. 7.28.20.2 Changing Password (Optional) Radios from the Motorola Solutions factory are provisioned with a blank password. Prerequisites: To access the protected channels, press OK when the Enter Old Password prompts you to change the password.
  • Page 141: Changing A Channel Parameter

    68012005051-FV Chapter 7 : Advanced Features 7.28.20.4 Changing a Channel Parameter Procedure: 1 Press or to FPP and press the Menu Select button directly below FPP. The radio displays the Enter password screen 2 Enter the password and press the Menu Select button directly below Ok. to scroll through the various information.
  • Page 142 68012005051-FV Chapter 7 : Advanced Features Parameter Editing Keys Value Use keypad to enter hexadecimal numbers: • Plus, multiple press 2 to scroll through A, B, C, 2. • Plus, multiple press 3 to scroll through D, E, F, 3. Rx Type Perform one of the following: ANALOG/...
  • Page 143: Chapter 8: Accessories

    68012005051-FV Accessories Chapter 8 Accessories Not all accessories are FCC certified to operate with all radio models, band splits, or both. See the radio price pages for a list of FCC certified accessories or contact your sales representative for accessory compatibility. https://www.motorolasolutions.com to know more about the accessories supported by this radio.
  • Page 144: Legal And Compliance Statements

    Furthermore, Motorola Solutions reserves the right to change any products to improve readability, function, or design. Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor the rights of others.
  • Page 145: Important Safety Information

    Before using the radio, read the RF Energy Exposure and Product Safety Guide for Portable Two-Way Radios which contains important operating instructions for safe usage and RF energy awareness and control for Compliance with applicable standards and Regulations. For a list of Motorola Solutions-approved antennas, batteries, and other accessories, visit the following website: https://www.motorolasolutions.com Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada.
  • Page 146: Fcc Licensing Information

    Applying for Canadian License The operation of your Motorola Solutions radio is subject to the Radio communications Act and must comply with rules and regulations of the Federal Government's department of Industry Canada. Industry Canada requires that all operators using Private Land Mobile frequencies obtain a radio license before operating their equipment.
  • Page 147: Maritime Radio Use In The Vhf Frequency Range

    68012005051-FV Maritime Radio Use in the VHF Frequency Range Maritime Radio Use in the VHF Frequency Range Special Channel Assignments Emergency Channel If you are in imminent and grave danger at sea and require emergency assistance, use VHF Channel 16 to send a distress call to nearby vessels and the United States Coast Guard. Transmit the following information, in this order: 1 “MAYDAY, MAYDAY, MAYDAY.”...
  • Page 148: Table 8: Vhf Marine Channel List

    68012005051-FV Maritime Radio Use in the VHF Frequency Range in the semiduplex mode on the two frequency channels specified in the table below. NOTE: Simplex channels 3, 21, 23, 61, 64, 81, 82, and 83 cannot be lawfully used by the general public in US waters.
  • Page 149 68012005051-FV Maritime Radio Use in the VHF Frequency Range 156.075 160.675 156.125 160.725 156.175 160.775 156.225 160.825 156.275 160.875 156.325 160.925 67** 156.375 156.375 156.425 156.425 156.475 156.475 156.575 156.575 156.625 – 156.675 156.675 156.725 156.725 77** 156.875 – 156.925 161.525 156.975 161.575...
  • Page 150: Declaration Of Compliance For The Use Of Distress And Safety Frequencies

    68012005051-FV Maritime Radio Use in the VHF Frequency Range Declaration of Compliance for the Use of Distress and Safety Frequencies The radio equipment does not employ a modulation other than the internationally adopted modulation for maritime use when it operates on the distress and safety frequencies specified in RSS-182 Section 7.3.
  • Page 151: Limited Warranty

    Product Accessories One (1) Year MOTOROLA SOLUTIONS, at its option, will at no charge either repair the Product (with new or reconditioned parts), replace it (with a new or reconditioned Product), or refund the purchase price of the Product during the warranty period provided it is returned in accordance with the terms of this warranty.
  • Page 152: Ii. General Provisions

    Repairs will be made only at the designated MOTOROLA SOLUTIONS repair depot. Local services are not included. MOTOROLA SOLUTIONS will pay for outbound shipping via MOTOROLA SOLUTIONS'S normal shipping methods.
  • Page 153: Vi. Patent And Software Provisions

    1 that MOTOROLA SOLUTIONS will be notified promptly in writing by such purchaser of any notice of such claim,...
  • Page 154: Vii. Governing Law

    You are also entitled to be compensated for any other reasonably foreseeable loss or damage from a failure in the goods or service. If you have any queries, please call Motorola Solutions Australia at 1800 457 439. You may also visit our website: https://www.motorolasolutions.com/en_xa/support.html...
  • Page 155: Glossary

    Automatic Registration Service ASTRO 25 Motorola Solutions standard for wireless digital trunked communications. ASTRO conventional Motorola Solutions standard for wireless analog or digital conventional communications. Autoscan A feature that allows the radio to automatically scan the members of a scan list. Bluetooth Bluetooth is an open wireless technology standard for exchanging data over short distances from fixed and mobile devices with high levels of security.
  • Page 156 68012005051-FV Glossary Channel A group of characteristics, such as transmit/receive frequency pairs, radio parameters, and encryption encoding. Control Channel In a trunking system, one of the channels that is used to provide a continuous, two-way/data- communications path between the central controller and all radios on the system. Conventional Typically refers to radio-to-radio communications, sometimes through a repeater.
  • Page 157 When this feature is triggered, the radio alerts the user with audio and visual alerts. It can also trigger Emergency Alarm the Post-Alert Timer is not cancelled. Mission Critical Wireless. Motorola Solutions Digital Communications. Menu Entry...
  • Page 158 68012005051-FV Glossary A software-activated feature shown at the bottom of the display. Selection of a feature is controlled by the programming of the buttons on the side of the radio. Monitor Check channel activity by pressing the Monitor button. If the channel is clear, you hear static. If the channel is in use, you hear conversation.
  • Page 159 68012005051-FV Glossary Private Line (PL) A sub-audible tone that is transmitted such that only receivers decoding the tone receives it. Programmable A radio control that can have a radio feature assigned to it. Push-to-Talk PTT-The switch or button usually located on the left side of the radio which, when pressed, causes the radio to transmit.
  • Page 160 68012005051-FV Glossary An organization or group of radio users who communicate with each other using the same communications path. Text Messaging Service. Trunking The automatic sharing of communications paths between a large number of users. Allows users to share a smaller number of frequencies because a repeater or communications path is assigned to a talkgroup for the duration of a conversation.

Table of Contents
