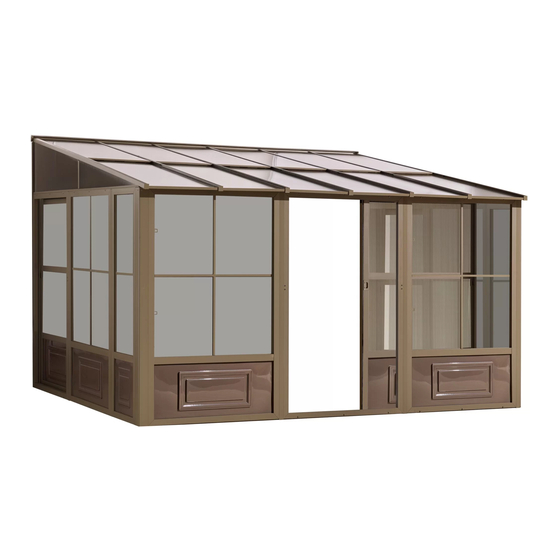

W1209 ½-32
10 X 12 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
Assembly by more than one person is suggested.
Requires 96" clearance at the wall
Base Dimensions 144''x 118'', Largest Dimensions 144''x122'' (see pg.13)
ZZZ-209.W1209-32.1129-17.GP.EN.HER
HER-HL
1
