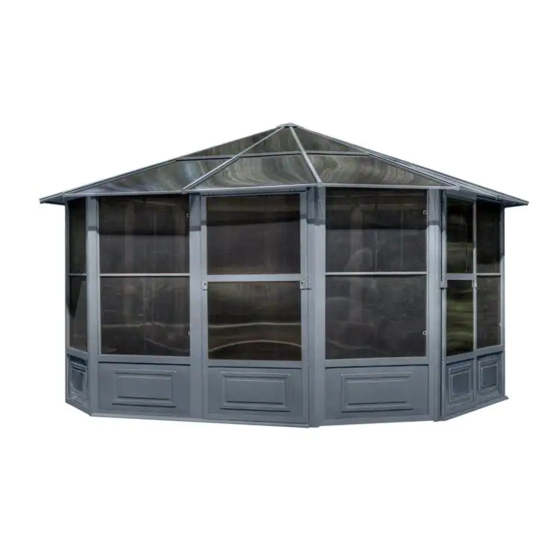

12 X 12 SOLARIUM

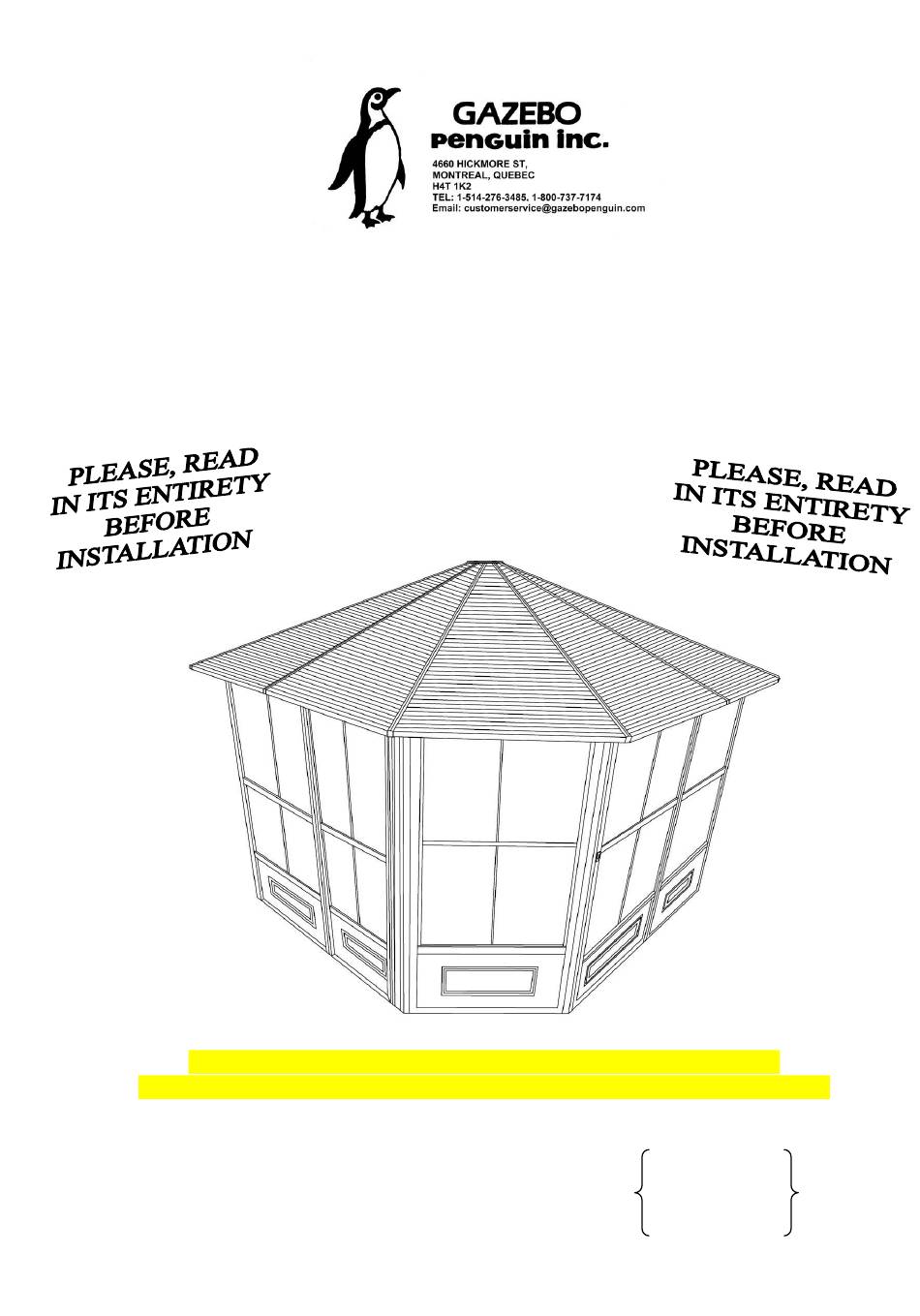

ASSEMBLY INSTRUCTIONS

DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED

PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS

Two or more adults required for assembly

Base Dimensions 12' ½" x 12' ½"

Largest Dimensions 12'10"x12'10"

APPROX.

Overall Height 110''

ZZZ-182.41212MR.1216-21.GP.EN.doc

WEB VERSION

Need help?

Do you have a question about the 41212MR-12 SAND and is the answer not in the manual?

Questions and answers

Summary of Contents for Gazebo penguin 41212MR-12 SAND

Page 1 41212MR-12 SAND 41212MR-32 SLATE 12 X 12 SOLARIUM ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Two or more adults required for assembly Base Dimensions 12’ ½” x 12’ ½” Largest Dimensions 12’10”x12’10”...
Page 2 Some jurisdictions may require permits for, or otherwise regulate, installation and use. For assistance with assembly, installation, parts, or customer service, contact Gazebo Penguin Customer Service Department at the numbers listed below (English & French, Mon-Fri 8:00 AM to 4:00 PM EST):...
Page 3 Carefully inspect the contents of the carton for missing or damaged components. Should you discover damaged or missing parts, do not return the product to the place of purchase, but contact Gazebo Penguin Customer Service Department at the numbers listed below:...
Page 4 41212 SAND (see page 7 for Slate parts) DRAWING DRAWING 08-129-12 08-132-12 REGULAR SLIDING FRAME DOOR FRAME 17-054 08-165-12 ROOF DOOR LATCH PANEL Dd-R 08-130-12 FRAME 08-169-12 NEXT TO DOOR LATCH DOORS Dd-L (extra holes) 08-158-12 08-133-12 SCREW CONNECTING M6*16 PIECE 08-131-12 08-167-12...
Page 5 DRAWING DRAWING 17-061 08-187-12 ROOF WASHER PANEL 08-138-12 17-044-12 DOOR RAFTER STOPPER 08-189-12 17-057 ACORN ROOF PANEL 08-139-12 08-143-12 CONNECTING Top Cap PIECE 08-193 17-058 PLASTIC ROOF PLUG PANEL 08-140-12 08-144-12 CENTRAL CONNECTING PIECE 08-134-12 17-055 UPPER ROOF DOOR PANEL RAIL END 17-049-12 17-043-12...
Page 6 DESCRIPTION DRAWING DESCRIPTION DRAWING 17-050-12 17-045-12 COVER FINISHING BAR FOR RAFTERS 08-135-12 17-071-12 SCREW FINISHING BAR 17-047-12 16-118-12 SOLIDIFYING SCREW M6X36 17-051-12 17-070-12 SOLIDIFYING COVER BAR 18-067-12 12-047-12 SOLIDIFYING BAR BRACKET SCREW M5X15 17-053-12 17-060 END CAP ROOF PANEL 17-046-12 08-156-12 FINISHING BAR SCREW...
Page 7 41212MR SLATE DRAWING DRAWING 08-129-32 08-132-32 REGULAR SLIDING FRAME DOOR FRAME 17-054 08-165-32 ROOF DOOR LATCH PANEL Dd-R 08-130-32 FRAME 08-169-32 NEXT TO DOOR LATCH DOORS Dd-L (extra holes) 08-158-32 08-133-32 SCREW CONNECTING M6*16 PIECE 08-131-32 08-167-32 SLIDING SCREW DOOR M6X63.5 08-161-32 08-136-32...
Page 8 DRAWING DRAWING 17-061 08-187 ROOF WASHER PANEL 08-138-32 17-044-32 DOOR RAFTER STOPPER 08-189-32 17-057 ROOF ACORN PANEL 08-139-32 08-143-32 CONNECTING Top Cap PIECE 08-193 17-058 PLASTIC ROOF PLUG PANEL 08-140-32 08-144-32 CENTRAL CONNECTING PIECE 08-134-32 17-055 UPPER ROOF DOOR PANEL RAIL END 17-049-32 17-043-32...
Page 9 DESCRIPTION DRAWING DESCRIPTION DRAWING 17-050-32 17-045-32 COVER FINISHING BAR FOR RAFTER 08-135-32 17-069-32 SCREW FINISHING BAR 17-047-32 16-118-32 SOLIDIFYING SCREW M6X36 17-051-32 17-070-32 SOLIDIFYING COVER BAR 18-067-32 12-047-32 SOLIDIFYING BAR BRACKET SCREW M5X15 17-053-32 17-060 END CAP ROOF PANEL 17-046-32 08-156-32 FINISHING BAR SCREW...
Page 10 Before you assemble the Solarium PLEASE DON'T DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED Tools needed:  Step Ladder 6’-8’  #2 Phillips, #2 Robertson Screwdriver (not supplied)  Rubber Mallet  Various Files  12” piece of wood Based on the location, decide where you would like to position the two (2) doors panels which can slide open to the left or the right, your choice.
Page 11 Assembly Instructions 12x12 Solarium Pre-assembled steel angle (Z1, Z2) to roof Rafters (K, L) respectively, using Bolts (Bb). To Be Assembled Before Packing 4 Steel Angles (Z1) to be attached to the right hole and remaining 4 to the left hole. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 12 Step 1: 1. Stand up two Frames (A), using two Connecting Pieces (I, J) slide from top to bottom and affix the panels together. Stand up a frame meant to be next to the Door (B) and a Door Frame (D), placing the door frame either on the left or right, then use two Connecting Pieces (E) slide from top to bottom to affix the Panel B and Door Frame D.
Page 13 Step 2: 1. Affix Gap Cover Bars (P) by sliding them on top of the exterior groove of the Frames (A, B, Step 3: ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 14 Slide Top Door Rail (F) into wheels of Sliding Door (C). Slide Lower Door Rail (G) into the plastic guide of the Sliding Door (C). Use Bolts (Bb) to affix the plastic Stoppers (H) one on each end of Top Door Rail (F). Using a Screw (Oo) affix the upper door rail End Caps (Nn) one on each end of Top Door Rail (F).
Page 15 Step 4: Please note the sliding door is suggested to be installed from the inside of the solarium 1. Place a Bolt (Ww) and Washer (Gg) through the Top Door Frame (D) and Door Top Rail (F), and place a Female Bolt (Cc-2) from the other side. Once all are inserted, tighten them all securely.
Page 16 Step 5: 1. Attach roof Rafters (K) to the Central Hub (N) using Bolts (Bb). 2. Use Screws (Z) to affix the Rafters (K) onto the top of panels going through the Metal Piece (Z1) attached to the Rafter (K). Note: Rafters must be affixed where panels connect to each other.
Page 17 Step 6: Follow the same procedure of Rafter (K) to assemble roof Rafters (L) onto the remaining panels. Note: Do not tighten the bolts right away as you may have to adjust the angle when inserting the roof panels. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 18 Step 7: Now secure the sides of the roof with Finishing Bar (S, U, and U1) with Bolts (Bb) and Brackets R. Place roof Finishing Bars (S, U, and U1) on the right of the Roof Finishing Bar (S, U, and U1) and align the holes in each bar one on top of the other.
Page 19 Step 8: From the inside of the solarium, install all the Brackets (Pp) using Bolts (Bb) on the Rafters L & K. From the inside of the solarium, install the Solidifying Bar (T, V, and V1) as illustrated using the Bolts (Bb). NOTE : Make sure all screws/ bolts are tight.
Page 20 Step 9: Install the bottom Roof Panels (Jj, Kk, and Mm) by sliding them onto Finishing Bar (S, U, U1). NOTE: 1. Please refer to the stickers on how to place the roof panels . 2. Make sure all screws/ bolts are tight. TOP VIEW ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 21 Step 10: Install the upper Roof Panel (Aa) by sliding them on top of roof Rafters (K). NOTE: Please refer to the stickers on how to place the roof panels. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 22 Step 11: Once installation of the Roof Panel (Aa) is complete, affix it using the Cover for Rafters(0) using the Screws (Oo1) on one side only, then place another roof panel and repeat step until last roof panel is installed using all Cover for Rafters (0 & 01). ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 23 ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 24 Step 12: Put Top Cap (M) on top of the Central Hub (N). ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 25 Step 13: Install the last Roof Panel (Aa). TOP VIEW ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 26 Step 14: Once the last roof panel is installed, screw last Cover for Rafters (O) to the Rafter (K) with bolts (Oo1). ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 27 Step 15: Use Acorn Nut (Hh) and Washer (Gg) to affix the Top Cap (M) to the Central Hub (N). ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 28 Step 16: Inside each of the frames panels, push two Plastic Plugs (Ii) into the ground, and secure the unit by using two Screws (Ee) for each panel or use any other type of anchoring suitable for the floor that you are using. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 29 Suggestions The below mentioned are only suggestions in order to permit drainage, these will vary depending on your flooring – material, flatness and slope. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 30 ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
Page 31 NOTE: The dimensions are approximate. ZZZ-182.41212MR.1216-21.GP.EN.doc WEB VERSION...
