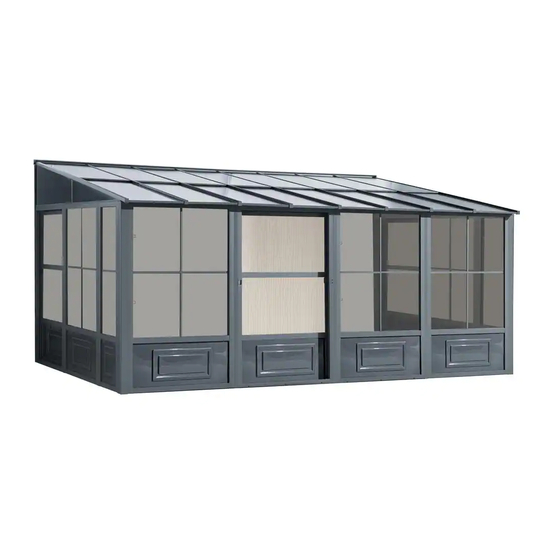

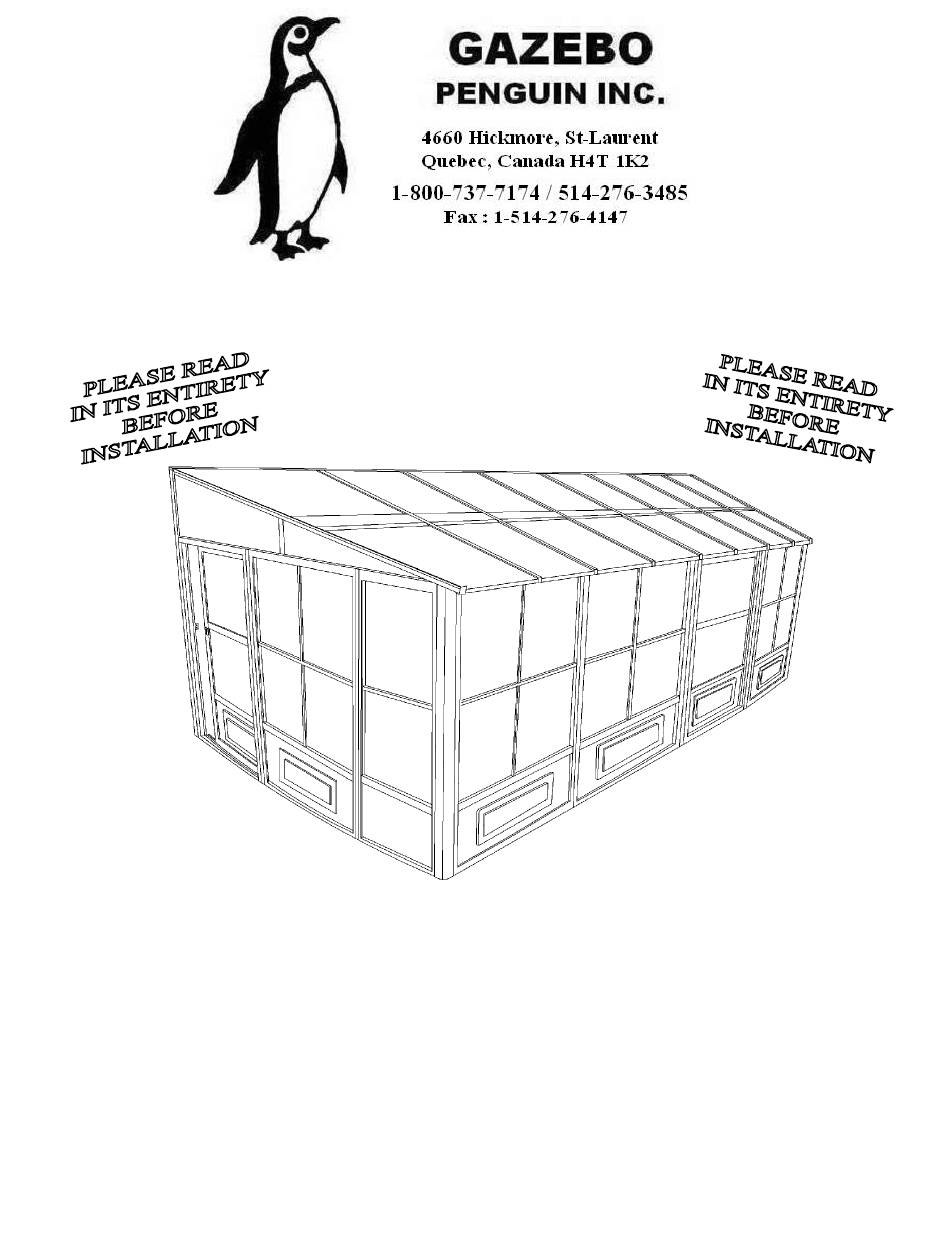

W1610 1/2 10 X 16 SOLARIUM ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED PLEASE VERIFY THE CONTENT OF EACH BOX AGAINST THE LIST OF PARTS Assembly by two or three adults is suggested. Requires 96” clearance at the wall Base Dimensions 190’’x 118’’, Largest Dimensions 190’’x122’’...
TOOLS REQUIRED: Screwdriver Knife File (smooth) Needle-nosed pliers Rubber mallet Step ladder (minmum 6' in height) Spatula Power drill Tube of silicon Drill bit 5/16" cement (according to surface) BEFORE STARTING: Ensure that you have a solid base, such as concrete or wooden deck, not slanted more than 1”...
Page 3
STEP #3 ASSEMBLE PIECES Assemble ML-3, N-3, O-3, and MR-3 as shown and BEFORE SCREWING position evenly above vertical guides, with the top fo THEM TO THE WALL the track at 96’’ from the ground. Secure wall track and vertical tracks to brick or cement wall by drilling through the aluminum and using screws Xx-3.
Page 4
STEP #5 Set right rafter T-3 over last bracket then secure it with Bb-3 screw and continue screwing through joint K-3 with the Bb-3 screw. Secure to Q-3 bracket with self-tapping screw (PQ-3). Repeat on left side with rafter S-3. STEP #6 Set U-3 rafters over the middle of each panel with Bb-3 screws at the top and...
Page 5
STEP #7 Remove protective film from two (2) sides of each panel and make sure the top side of the panel faces the sunlight. Insert and slide on the top groove of the rafters all the way to the end. Pp-3 should go first and last with the Qq-3 panels in between.
Page 6
STEP #9 Insert the second row of panels into the lower groove on the rafter. Slide panels until they reach the aluminum pieces between the panels and gently tap on the panel to guide it into the aluminum groove. Use a spatula if needed to make it fit.
Page 7
STEP #11 On the inside of the solarium under each rafter there are two rows of inserts with threads, and one crossbeam in two pieces. Start the upper row with a Jj-3 at either end and Kk-3 between panels, screwing them in place with Ff- 3.
Page 8
Sliding door should be Sliding door installed should be from the installed from inside of the the inside of solarium. the solarium. STEP #13 Lift up door and track inside of solarium then set it over the door opening by screwing at the top. First use bolts (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly.
STEP #14 Anchor the solarium to the deck or floor securely using screws and shields supplied. See diagram below. SPECIAL NOTES To remove a screen, remove the two (2) screws at the top of the frame then pull sideways to the opposite end of the handles to remove.
Page 10
W1610 1/2-12 SAND PARTS LIST PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 10-497-12 10-496-12 FRAME NEXT REGULAR TO DOOR FRAME B-3 (with extra holes) 10-498-12 12-141-12 SLIDING HALF FRAME DOOR A-3 1/2 10-499-12 11-544-12 SLIDING CONNECTING DOOR FRAME...
Page 11
PACKED PACKED DRAWING DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 10-509-12 12-146-12 ROOF LEFT SIDE RAFTER CAP RAFTER 12-147-12 12-148-12 RIGHT SIDE REGULAR RAFTER RAFTER 10-513-12 10-514-12 MIDDLE MIDDLE ROOF JOINT ROOF JOINT 10-515-12 10-516-12 EDGING EDGING 08-156-12 08-158-12 SCREW BOLT Bb-3 12-037-12...
Page 12
PACKED PACKED DRAWING DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 10-519-12 10-520-12 ROOF TOP ROOF TOP REINFORCE REINFORCE Ll-3 Mm-3 08-134-12 08-135-12 UPPER DOOR SCREW RAIL END CAP Oo-3 12-149 12-150 (63 ¼ x 24 ½”) (63 ¼ x 23”) LEFT+RIGHT REGULAR ROOF PANEL...
AVAILABLE REPLACEMENT PARTS DESCRIPTION DRAWING DESCRIPTION DRAWING 85-014 10-435-12 REPLACEMENT PVC WINDOW SCREENING (no (in frame) frame) 12-176-12 85-417-S PVC WINDOW for ROUND SPLINE FOR HALF FRAME A-3 SCREENING 10-493 11-824-12 PVC WINDOW BOTTOM PLASTIC (replacement PANEL (for wall material only) panels) 85-417-P 11-825-12...
Page 14
W1610 1/2-32 SLATE PARTS LIST PACKED PACKED DESCRIPTION DRAWING DESCRIPTION DRAWING IN BOX IN BOX 10-497-32 10-496-32 FRAME NEXT REGULAR TO DOOR FRAME B-3 (with extra holes) 10-498-32 12-141-32 SLIDING HALF FRAME DOOR A-3 1/2 10-499-32 11-544-32 SLIDING CONNECTING DOOR FRAME...
Page 15
PACKED PACKED DRAWING DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 10-509-32 12-146-32 ROOF LEFT SIDE RAFTER CAP RAFTER 12-147-32 12-148-32 RIGHT SIDE REGULAR RAFTER RAFTER 10-513-32 10-514-32 MIDDLE MIDDLE ROOF JOINT ROOF JOINT 10-515-32 10-516-32 EDGING EDGING 08-156-32 08-158-32 SCREW BOLT Bb-3 12-037-32...
Page 16
PACKED PACKED DRAWING DRAWING DESCRIPTION DESCRIPTION IN BOX IN BOX 10-519-32 10-520-32 ROOF TOP ROOF TOP REINFORCE REINFORCE Ll-3 Mm-3 08-134-32 08-135-32 UPPER DOOR SCREW RAIL END CAP Oo-3 12-149 12-150 (63 ¼ x 24 ½”) (63 ¼ x 23”) LEFT+RIGHT REGULAR ROOF PANEL...
Page 17
AVAILABLE REPLACEMENT PARTS DESCRIPTION DRAWING DESCRIPTION DRAWING 85-014 10-435-12 REPLACEMENT PVC WINDOW SCREENING (no (in frame) frame) 12-176-12 85-417-S PVC WINDOW for ROUND SPLINE FOR HALF FRAME A-3 SCREENING 10-493 11-824-12 PVC WINDOW BOTTOM PLASTIC (replacement PANEL (for wall material only) panels) 85-417-P 11-825-12...
Page 18
ZZZ-210.W1610.1207-18.GP.EN.SUN WEB VERSION SUN-HI...
Page 19
Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.
