W1610 1/2-32

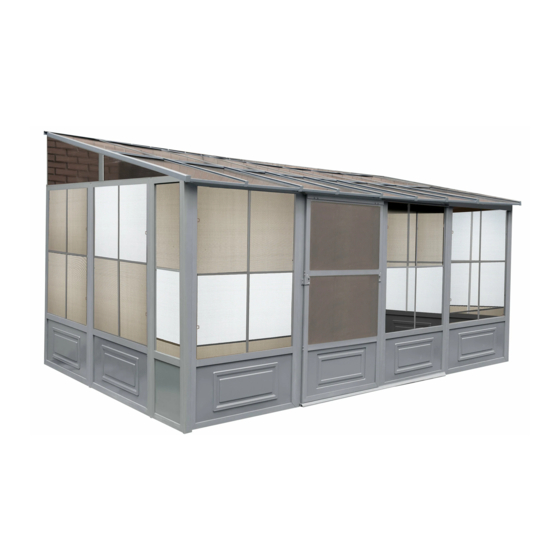

10 X 16 SOLARIUM
ASSEMBLY INSTRUCTIONS
DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED
Two or more adults required for assembly
Requires 96" clearance at the wall
Base Dimensions 190''x 118'', Largest Dimensions 190''x122'' (see pg.14)
ZZZ-210.W1610-32.1129-17.GP.EN.HER
HER-HP
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Gazebo penguin W1610
Summary of Contents for Gazebo penguin W1610
- Page 1 W1610 1/2-32 10 X 16 SOLARIUM ASSEMBLY INSTRUCTIONS DO NOT DESTROY THE BOXES UNTIL COMPLETELY ASSEMBLED Two or more adults required for assembly Requires 96” clearance at the wall Base Dimensions 190’’x 118’’, Largest Dimensions 190’’x122’’ (see pg.14) ZZZ-210.W1610-32.1129-17.GP.EN.HER...
- Page 2 Next, slide three (3) Yy-3 and one (1) Zz-3 from left side to right on top of the frame. The groove should be towards the interior of the unit. Repeat from right side and space evenly. STEP #3 ASSEMBLE PIECES ZZZ-210.W1610-32.1129-17.GP.EN.HER Assemble ML-3, N-3, O-3, and MR-3 as shown and HER-HP BEFORE SCREWING...
- Page 3 P-3 joint and one (1) Ss-3 panel, then do the right side with one (1) Tt-3 panel, one (1) Q-3 joint and one (1) Uu-3 panel over the J-3 horizontal panel. Secure P-3 and Q-3 to I-3 and J-3 respectively with self-tapping screws (PQ-3). ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 4 Set U-3 rafters over the middle of each panel with Bb-3 screws at the top and two (2) Z-3 screws over the brackets on frame manually. Set U-3 rafter on each joint screws manually. Do not use power drill. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 5 Make sure the panels are inside the aluminum middle roof joint groove. Insert a V-3 at either end, then insert all W-3 and then the remaining V-3. Tap gently with rubber mallet if needed. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 6 STEP #10 Starting at either end, add X-3 edging and one (1) R-3 bracket and screw with Bb-3 manually, do not use power drill. Add Y-3 edging and repeat until you reach the end, then add the X-3 edging. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 7 Use bolt Bb-3 to affix the plastic stopper H-3 on each end of top door rail F-3. Use Oo-3 screws to affix upper door rail and cap Nn-3, at each end of top rail door. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 8 (Ww) and washers (Gg-3) on the inside and female bolts (Cc-3-2) on the outside for the top assembly. See diagram below. Attach lower track with bolts (Cc-3) and washers (Gg-3). Set up door latch on the side required for your door to lock, adjust latch as required. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 9 Use only mild or warm soapy water, no strong or abrasive cleaning products. Be sure to remove heavy snow and/or ice. WARNING: 1) Do not use BBQ or any other flammable product inside the solarium. 2) Remove snow from the roof. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 10 SOLARIUM W1610 1/2 DESCRIPTION DRAWING DESCRIPTION DRAWING 10-497-12 10-496-12 FRAME NEXT REGULAR TO DOOR FRAME B-3 (with extra holes) 10-498-12 12-141-12 SLIDING HALF FRAME DOOR A-3 1/2 10-499-12 11-544-12 SLIDING DOOR CONNECTING FRAME PIECE 11-546-12 11-545-12 BOTTOM TOP DOOR RAIL...
- Page 11 FEMALE BOLT Cc-3 Cc-3-2 08-165-12 08-169-12 RIGHT DOOR LEFT DOOR LATCH LATCH Dd-R-3 Dd-L-3 08-167-12 08-168-12 SCREW BOLT Ee-3 Ff-3 08-187 08-193 WASHER PLASTIC PLUG Gg-3 Ii-3 10-517-12 10-518-12 END ROOF REGULAR ROOF CROSS BAR CROSSBAR Jj-3 Kk-3 ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 12 GABLE PANEL Tt-3 Uu-3 10-527-12 10-528-12 LEFT WALL RIGHT WALL GUIDE GUIDE Vv-3 Ww-3 10-529-12 10-530-12 SCREW FOR REGULAR TOP FIXING TO WALL FILLER Xx-3 Yy-3 10-531-12 12-047-12 END TOP FILLER BOLT Zz-3 (M5*15mm) 13-045-12 SELF-TAPPING SCREW PQ-3 ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 13 PANEL FOR HALF WINDOW FRAME A-3 1/2 13-055 15-097-12 PC WINDOW (for DOOR WHEEL sliding door) ASSEMBLY 12-174-12 10-458 MOSQUITO REPLACEMENT SCREEN (in WEATHERSTRIP 124” frame) 12-175-12 15-126-12 MOSQUITO MOUNTING SCREEN FOR BRACKET FOR HALF FRAME A-3 RAFTER (U-3) ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 14 MAINTENANCE NOTES 1. In case of a defective or damaged part, or for any other questions concerning the product, please contact the manufacturer directly. ZZZ-210.W1610-32.1129-17.GP.EN.HER HER-HP...
- Page 15 Warranty set forth below, it is warranted to be free of material and manufacturing defects for a period of one year from the date of purchase. Should the product become damaged, or the warranty period has expired, please contact Gazebo Penguin Customer Service Department for a complete schedule of replacement parts and prices.
