Summary of Contents for Ingersoll-Rand 99 Series

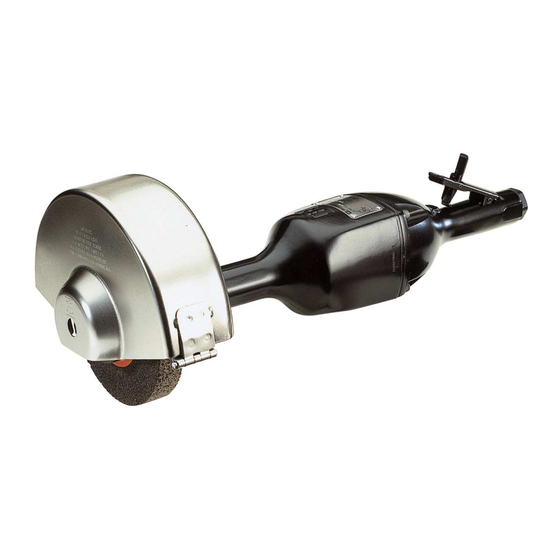

- Page 1 16573354 Edition 2 February 2014 Air Grinder Series 99H Maintenance Information Save These Instructions...
-
Page 2: Product Safety Information
Product Safety Information WARNING • Failure to observe the following warnings, and to avoid these potentially hazardous situations, could result in death or serious injury. • Read and understand this and all other supplied manuals before installing, operating, repairing, maintaining, changing accessories on, or working near this product. - Page 3 Disassembly of the Motor and Throttle tighten the nut on the fixture. Insert the 99V60-951 Seal Pressing Tool in the center of the Rear Rotor Bearing and press off the Using the No. R2J-562 Deflector Screw Wrench, remove Controller. Release the clamp. the Exhaust Deflector Screws (28) and lift off the Exhaust 13.
- Page 4 5. Align the holes in the Lever Assembly with the slots in the WARNING Throttle Handle. With a soft hammer, tap the Throttle Lever Pin (15) through the Lever Assembly. File off any sharp edges. Tighten the Controller to 14 to 16 ft-lb (19.0 to 21.7 Nm) torque. Operate the mechanism internally by hand to assure operation.
- Page 5 NOTICE Slip the flanges onto the arbor so the keys are opposite each other. 9. Using an applicable Spanner Wrench inserted into the pin hole of the flange to hold the arbor, install the Wheel Nut (51) with an open-end wrench. Only tighten sufficiently to drive the wheel and prevent slippage.
-
Page 6: Troubleshooting Guide
Troubleshooting Guide Trouble Probable Cause Solution Low power or low free speed Low air pressure at the Inlet of the Grinder Check the air pressure at the Inlet. For maximum performance and durability of parts, the pressure must not exceed 90 psig (6.2 bar/620 kPa). - Page 7 Notes...
- Page 8 ingersollrandproducts.com © 2014 Ingersoll Rand...
