Instruction Leaflet IL04801003E
Effective March 2013
HMi VU Series Instruction Leaflet
Contents
Description ............................................ Page
Preface ................................................. 1
Safety Precautions ................................ 1
Installation ............................................. 3
Wiring ................................................... 4
Basic Inspection .................................... 4
Hardware Features ............................... 7
Panel Cut-Out ....................................... 17
Specifications ........................................ 19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eaton HMIVU04CUNBE
Summary of Contents for Eaton HMIVU04CUNBE
-
Page 1: Table Of Contents
Instruction Leaflet IL04801003E Effective March 2013 HMi VU Series Instruction Leaflet Contents Description ..........Page Preface ..........1 Safety Precautions ........ 1 Installation ..........3 Wiring ........... 4 Basic Inspection ........4 Hardware Features ....... 7 Panel Cut-Out ........17 Specifications ........ -
Page 2: Preface
HMi VU Series Instruction Leaflet Preface Safety Precautions Thank you for purchasing Eaton’s HMi VU Carefully note and observe the following series operator interface. This quick start safety precautions when receiving, inspecting, guide will be helpful in the installation, wiring... - Page 3 Eaton’s HMi and HMi VU series First remove power and then hardware. disconnect the terminals to avoid To avoid personal injury and...
-
Page 4: Installation
Step 2: Step 4: Insert fasteners into the operator interface slots. Maintain a minimum spacing of 60mm from the back of the operator interface ventilation holes. All should be finger tight initially. Units: mm fastener Units: mm EATON CORPORATION www.eaton.com... -
Page 5: Wiring
(power not screws, metal shavings, and applied) conductive or flammable materials that may fall into the operator interface. Confirm power LED lights. Inspection Confirm communication before system operation with devices. (power is applied) EATON CORPORATION www.eaton.com... - Page 6 RS-422 flow control function. RXD- Note: Blank = No Connection. HMIVU08CUNBE / HMIVU10WCUNBE HMIVU06CUNB1 / HMIVU07CUNBE COM1 Port (Supports Flow Control) COM1 Port (Supports Flow Control) Contact Contact RS-232 RS-232 Note: Blank = No Connection. Note: Blank = No Connection. EATON CORPORATION www.eaton.com...
- Page 7 COM3 Port pins 1, 4, 6, and 9 are used for the signals, RTS+, CTS+, RTS- and CTS- as shown in brackets. COM3 Port MODE1 MODE2 MODE3 RS-232 RS-422 RS-485 TXD+ (RTS+) RXD+ (CTS+) TXD- (RTS-) RXD- (CTS-) Note1: Blank = No Connection. EATON CORPORATION www.eaton.com...
-
Page 8: Hardware Features

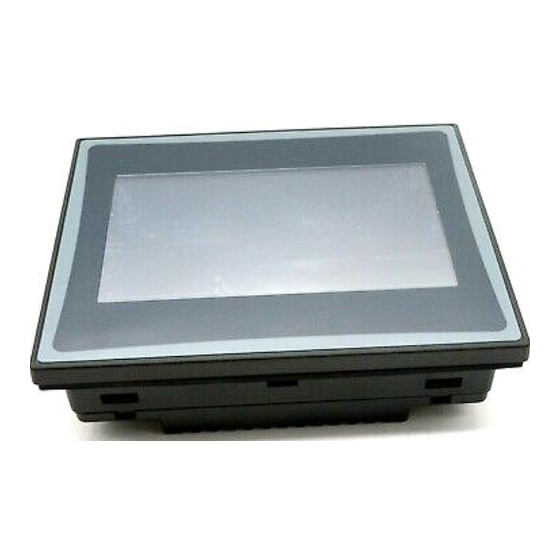

HMi VU Series Instruction Leaflet Hardware Features HMIVU04CUNBE (Front View) Power LED Indicator (Lights in green when power is applied.) Touch Screen / Display EATON CORPORATION www.eaton.com... - Page 9 HMi VU Series Instruction Leaflet HMIVU04CUNBE (Rear View) USB Slave Ethernet Port (Note1) USB Host COM1 System Button Power Input Terminal 1. Refer to the Pin Definition for Communications section for simultaneous use of COM1 and COM2. EATON CORPORATION www.eaton.com...
- Page 10 HMi VU Series Instruction Leaflet HMIVU06CUNB1 (Front View) Power LED Indicator (Lights in green when power is applied.) Touch Screen / Display EATON CORPORATION www.eaton.com...
- Page 11 HMi VU Series Instruction Leaflet HMIVU06CUNB 1(Rear View) Power Input Terminal USB Host (Note1) COM2 and COM3 USB Slave COM1 System Button Battery Cover 1. Refer to the Pin Definition for Communications section for simultaneous use of COM2 and COM3. EATON CORPORATION www.eaton.com...
- Page 12 HMi VU Series Instruction Leaflet HMIVU07CUNBE (Front View) Power LED Indicator (Lights in green when power is applied.) Touch Screen / Display EATON CORPORATION www.eaton.com...
- Page 13 USB Host (Note1) COM2 and COM3 USB Slave COM1 System Button Battery Cover Ethernet Port Memory Card Slot Audio Output Port 1. Refer to the Pin Definition for Communications section for simultaneous use of COM2 and COM3. EATON CORPORATION www.eaton.com...
- Page 14 : Alarm LED Indicator (Red) The alarm LED indicator blinks in red when one of the alarms is on. Touch Screen / Display 1. The function for which the Blue LED indicator lights can be selected in HMiSoft. EATON CORPORATION www.eaton.com...
- Page 15 COM3 (Two LED indicate Read or Write status during the communication process.) COM2 (Two LED indicate Read or Write status during the communication process.) COM1 USB Slave Ethernet Port USB Host Audio Output Port Memory Card Slot / Battery Cover EATON CORPORATION www.eaton.com...
- Page 16 : Alarm LED Indicator (Red) The alarm LED indicator blinks in red when one of the alarms is on. Touch Screen / Display 1. The function for which the Blue LED indicator lights can be selected in HMiSoft. EATON CORPORATION www.eaton.com...
- Page 17 COM2 (Two LED indicate Read or Write status during the communication process.) COM3 (Two LED indicate Read or Write status during the communication process.) COM1 USB Slave Ethernet Port Memory Card Slot / Battery Cover USB Host Audio Output Port System Button EATON CORPORATION www.eaton.com...
-
Page 18: Panel Cut-Out
HMi VU Series Instruction Leaflet Panel Cut-Out HMIVU04CUNBE HMIVU06CUNB1 0.063"(1.6)~0.24"(6) 6.79"(172.4) 7.24"(184) HMIVU07CUNBE 6.79"(172.4) 0.063"(1.6)~0.24"(6) 7.24"(184) EATON CORPORATION www.eaton.com... - Page 19 HMi VU Series Instruction Leaflet HMIVU08CUNBE 8.64"(219.4) 8.94"(227.1) 0.063"(1.6)~0.24"(6) HMIVU10WCUNBE 10.29"(261.3) 0.063"(1.6)~0.24"(6) 10.71"(272) EATON CORPORATION www.eaton.com...
-
Page 20: Specifications
HMi VU Series Instruction Leaflet Specifications MODEL HMIVU04CUNBE HMIVU06CUNB1 HMIVU07CUNBE HMIVU08CUNBE HMIVU10WCUNBE 10.1” Widescreen 5.6” TFT LCD 7” TFT LCD 8” TFT LCD 4.3” TFT LCD TFT LCD Display Type (65536 colors) Resolution 480 x 234 pixels 320 x 234 pixels... - Page 21 HMi VU Series Instruction Leaflet Specifications MODEL HMIVU04CUNBE HMIVU06CUNB1 HMIVU07CUNBE HMIVU08CUNBE HMIVU10WCUNBE Perpetual Calendar Built-in (RTC) Cooling Method Natural air circulation Safety Approval CE / UL Waterproof Degree IP65 / NEMA 4X (indoor use only) Operation Voltage DC +24V (-10% ~ +15%)
- Page 22 In order to ensure the normal operation, it is recommended to use a power supply which the capacity is 1.5 ~2 times the value of the power consumption. For further details, please visit the Eaton website www.eaton.com/electrical. EATON CORPORATION www.eaton.com...
- Page 23 HMi VU Series Instruction Leaflet...
