Introduction

The VW08 firmware for Directed Digital Solutions is compatible with specific Audi vehicles. It is a complete
solution for remote start, security (if applicable), bypass interface, and convenience. This guide provides
information on the installation of the module using VW08. If you would prefer using this system as a digital
solution, go to www.directechs.com and search for the make, model and year of the vehicle. This will allow
you to find the proper firmware and corresponding installation guide.
Warning! This module can only be programmed via the web tool, which can be found on www.directechs.com or using the
Directechs Mobile application for mobile devices. Features and functions will become accessible when you connect the module
using the XKLoader.

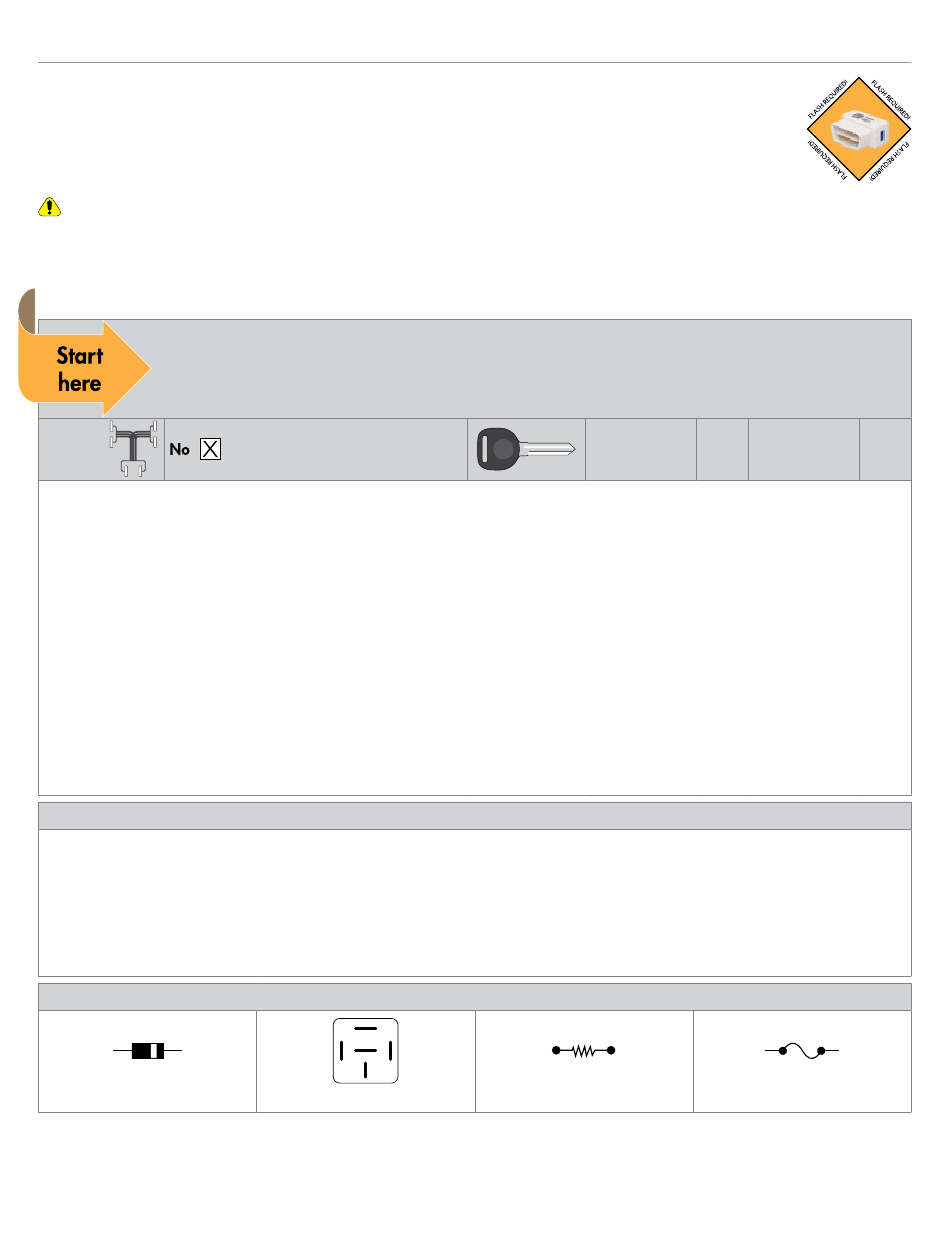

Pre-installation and application warnings

Firmware notes: This section highlights important information for this specific firmware and will assist in
pricing accordingly, as well as bringing awareness to any operational or vehicle limitations.
T-Harness
compatible
This firmware does not support transponder override. One (1) programmed OEM key must be wired into the vehicle to
Š
complete the installation of a remote starter.
Š
A Note Regarding Climate Controls: Audi climate controls are key memory sensitive. This means that the last key used
Š
to operate the vehicle will determine the setting for the climate controls. In order to make changes to environment control
settings, the following procedure is necessary:
1) Remote start the vehicle.
2) Make your climate control adjustments, ensuring NOT to use the AUTO mode on the control panel as this makes the Audi
adjust its HVAC settings based on external factors such as engine temperature.
3) When the adjustments are complete, turn off the vehicle starter, either by remote or footbrake.
This will ensure the climate controls function as the customer desires them too.
Š
To remote start the engine, the hood, the hatch and all doors must be closed.
Š
Unless specified otherwise, all connectors are displayed from the wire side, with the exception of the OBDII diagnostic
Š
connector.
Refer to the "Vehicle wiring reference chart" following each installation type.
Š
General notes: This section highlights important information for this specific firmware.
The installation of an aftermarket hood pin is ONLY required on vehicles that are NOT equipped with a factory hood pin.
[1]
The siren is ONLY required when enabling the security features during module flashing.
[2]
For Key Wrap instructions refer to pages 12 to 15.
[3]
Direct connection for trunk release in case not available through data.
[4]
The correct brake activation wire will test as 0.6V with the ignition on and 12V with the brake pedal depressed with
[5]
ignition ON. Failure to identify the correct wire will cause permanent damage to the interface.
Additional parts required (maximum required):
Diode 6A
3 x 1A Diodes
4
87
87a
86 85
30
0 x Relay
Keys required for
1
programming
Resistor 100Ω
0 x Resistor
Keys required for
1
operation
Fuse 7.5A
0 x Fuse
