Schischek InMax CY Series Quick Start Manual

InMax
¼ turn actuators – size S
Electrical 24 VAC/DC rotary actuators for use in safe areas
4...20 mA control mode, with feedback 0...10 VDC, 95° angle of rotation
5/10 Nm, 15/30 Nm without and 5/10 Nm, 15 Nm with safety operation (spring return)
Compact. Easy installation. Universal. Cost effective. Safe.
Type Torque
InMax- 5.10 - CY
5 / 10 Nm
InMax-15.30 - CY 15 / 30 Nm
InMax- 5.10 - CYF 5 / 10 Nm
InMax- 15 - CYF 15 Nm
InMax- ... - CTS
Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
InMax- ... - VAS
Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)
Product views and applications
InMax-...-CY VAV (variable air volume)
Description

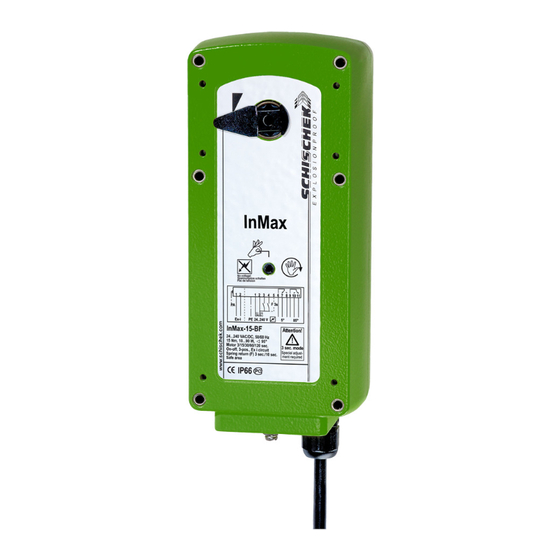

The InMax actuators are a revolution for safety, control and shut-off
dampers, VAV systems, ball valves, throttle valves and other motorized
applications for HVAC systems in chemical, pharmaceutical, industrial
and offshore/onshore plants.
IP66 protection, small dimensions, only 3,5 kg weight, universal functions
and technical data, an integrated heater and an optional stainless steel
housing guarantee safe operation even under difficult environmental
conditions. High quality brushless motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools or
equipment are not required. Motor running times and torques as well as
spring return times, according to the actuator type, are selectable or
adjustable on site. The integrated universal power supply is self adaptable
to input voltages of 24 VAC/DC. The actuators are 100 % overload
protected and self locking.
...Max-...-CYF actuators are equipped with spring return fail safe function.
Standard shaft connection is a double square direct coupling with
12 × 12 mm.
Different accessories are available to adapt auxiliary switches, terminal
boxes or adaptions for ball valves and throttle valves and other armatures.
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail info-de@schischek.com
Supply Motor running time
24 VAC / DC 7.5 / 15 / 30 / 60 / 120 s/90°
24 VAC / DC 7.5 / 15 / 30 / 60 / 120 s/90°
24 VAC / DC 7.5 / 15 / 30 / 60 / 120 s/90°
24 VAC / DC 7.5 / 15 / 30 / 60 / 120 s/90°
Highlights
► Industrial use
► Universal supply unit from 24 VAC/ DC
►5 different motor running times 7,5 –15–30– 60 –120 s /90°, adjustable on site
► Optional spring return running time ~ 10 s/ 90°
► Control mode 4...20 mA
► Feedback signals 0...10 VDC
► 5 –10 –15– 30 Nm actuators in the same housing size
► 100 % overload protected and self locking
► Compact design and small dimension (L × W × H = 210 × 95 × 80 mm)
► Direct coupling to the damper shaft with double-square connection 12 × 12 mm
► 95° angle of rotation inclusive 5° pretension
► Robust aluminium housing (optional with seawater resistant coating)
or in stainless steel
► IP66 protection
► Simple manual override included + preparation for comfortable manual override
► Gear made of stainless steel and sinter metal
► Weight only ~ 3,5 kg
► Integrated heater for ambient temperatures down to −40 °C
► Integrated safety temperature sensor
► Integrated equipment for manual adjustment (push button, lamp, switch)
► Preparation for adaptable and adjustable auxiliary switches type ...Switch
► Wide range of accessories
www.schischek.com
E X P L O S I O N P R O O F
Spring return Control mode
– 4...20 mA
– 4...20 mA
10 s /90° 4...20 mA
10 s /90° 4...20 mA
InMax - ... - CY
InMax - ... - CYF
InMax - ... - CTS
InMax - ... - VAS
Subject to change!
Feedback Wiring diagram
0...10 VDC SB 6.0
0...10 VDC SB 6.0
0...10 VDC SB 6.1
0...10 VDC SB 6.1
InMax-S-CY_en
V04 – 8-Nov-2018
1 / 4
