Schischek RedMax CTM Series Manual

RedMax
¼ turn actuators – size M
Electrical, explosion proof rotary actuators
3-pos. / 0...10 VDC / 4...20 mA control mode, with feedback, 24...240 VAC/DC, 95° angle of rotation
50/75 Nm, 100 Nm without and 30 Nm, 50 Nm with safety operation (spring return)
ATEX tested in acc. with directive 2014/34/ EU for zone 2, 22
Compact. Easy installation. Universal. Cost effective. Safe.
Type Torque
RedMax- 50.75 - Y 50 / 75 Nm
RedMax-100 - Y 100 Nm
RedMax- 30 - YF 30 Nm
RedMax- 50 - YF 50 Nm
RedMax- ... - CTM Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
RedMax- ... - VAM Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)

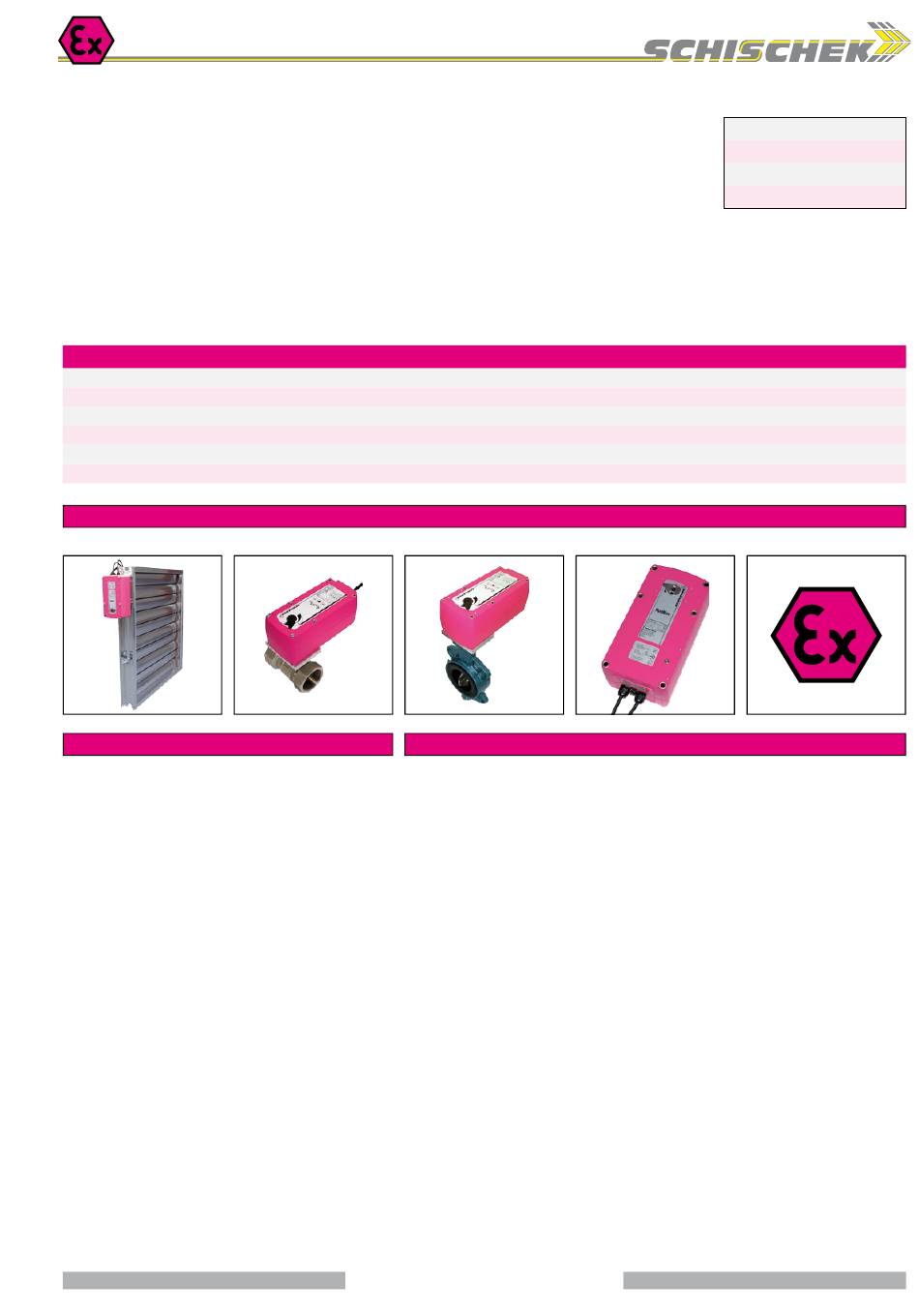

Product views and applications

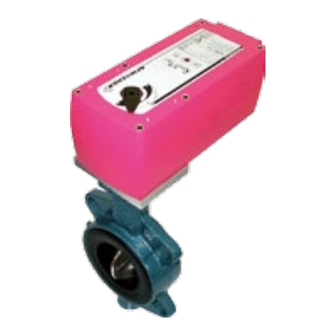

Safety damper Ball valve
Description
The RedMax actuators are a revolution for safety, control and shut-off
dampers, VAV systems, ball valves, throttle valves and other motorized
applications for HVAC systems in chemical, pharmaceutical, industrial
and offshore/onshore plants, for use in Ex-areas zone 2 (gas) and zone
22 (dust).
Highest protection class (ATEX) and IP67 protection, small dimensions,
only 9,5 kg weight, universal functions and technical data, an integrated
heater and an optional stainless steel housing guarantee safe operation
even under difficult environmental conditions. High quality brushless
motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools or
equipment are not required. Motor running times and torques as well as
spring return times, according to the actuator type, are selectable or
adjustable on site. The integrated universal power supply is self adaptable
to input voltages in the range of 24...240 VAC/DC. Furthermore it is
possible to perform control signal inverting and compulsion control by
certain connections. The actuators are 100 % overload protected.
...Max-...-YF actuators are equipped with spring return fail safe function.
Standard shaft connection is a double square direct coupling with
16 × 16 mm.
Different accessories are available to adapt auxiliary switches, terminal
boxes or adaptions for ball valves and throttle valves and other armatures.
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail info-de@schischek.com
Supply Motor running time
24...240 V AC/DC 40 / 60 / 90 / 120 / 150 s/90°
24...240 V AC/DC 40 / 60 / 90 / 120 / 150 s/90°
24...240 V AC/DC 40 / 60 / 90 / 120 / 150 s/90°
24...240 V AC/DC 40 / 60 / 90 / 120 / 150 s/90°
Throttle valve
Highlights
► For all types of gases, mists, vapours and dusts in zones 2 and 22
► Universal supply unit from 24...240 VAC/DC
►5 different motor running times 40– 60 –90 – 120–150 s /90°, adjustable on site
► 2 different spring return running times ~ 20 s /90°, selectable on site
► 3-pos. and 0...10 VDC, 4...20 mA control mode with or without spring return function
► Feedback signals 0...10 VDC and 4...20 mA
► Reverse function
► 30 – 50– 75– 100 Nm actuators in the same housing size
► 100 % overload protected
► Compact design and small dimension (L × W × H ~ 288 × 149 × 116 mm)
► Direct coupling to the damper shaft with double square connection 16 × 16 mm
► 95° angle of rotation inclusive 5° pretension
► Robust aluminium housing (optional with seawater resistant coating)
► IP67 protection
► Simple manual override included + preparation for comfortable manual override
► Gear made of stainless steel and sinter metal
► Weight only ~ 9,5 kg
► Integrated heater for ambient temperatures down to −40 °C
► Integrated safety temperature sensor
► Integrated equipment for manual adjustment (push button, lamp, switch)
► Preparation for adaptable and adjustable auxiliary switches type ...Switch
► Wide range of accessories
www.schischek.com
Spring return Control mode
– 3-pos., 0...10 V DC, 4...20 mA
– 3-pos., 0...10 V DC, 4...20 mA
~ 20 s/90° 3-pos., 0...10 V DC, 4...20 mA
~ 20 s/90° 3-pos., 0...10 V DC, 4...20 mA
or in stainless steel
E X P L O S I O N P R O O F
RedMax - ... - Y
RedMax - ... - YF
RedMax - ... - CTM
RedMax - ... - VAM
Subject to change!
Feedback
0...10 V DC, 4...20 mA SB 4.0 / 4.1
0...10 V DC, 4...20 mA SB 4.0 / 4.1
0...10 V DC, 4...20 mA SB 4.0 / 4.1
0...10 V DC, 4...20 mA SB 4.0 /4.1
Wiring diagram
RedMax-M-Y_en
