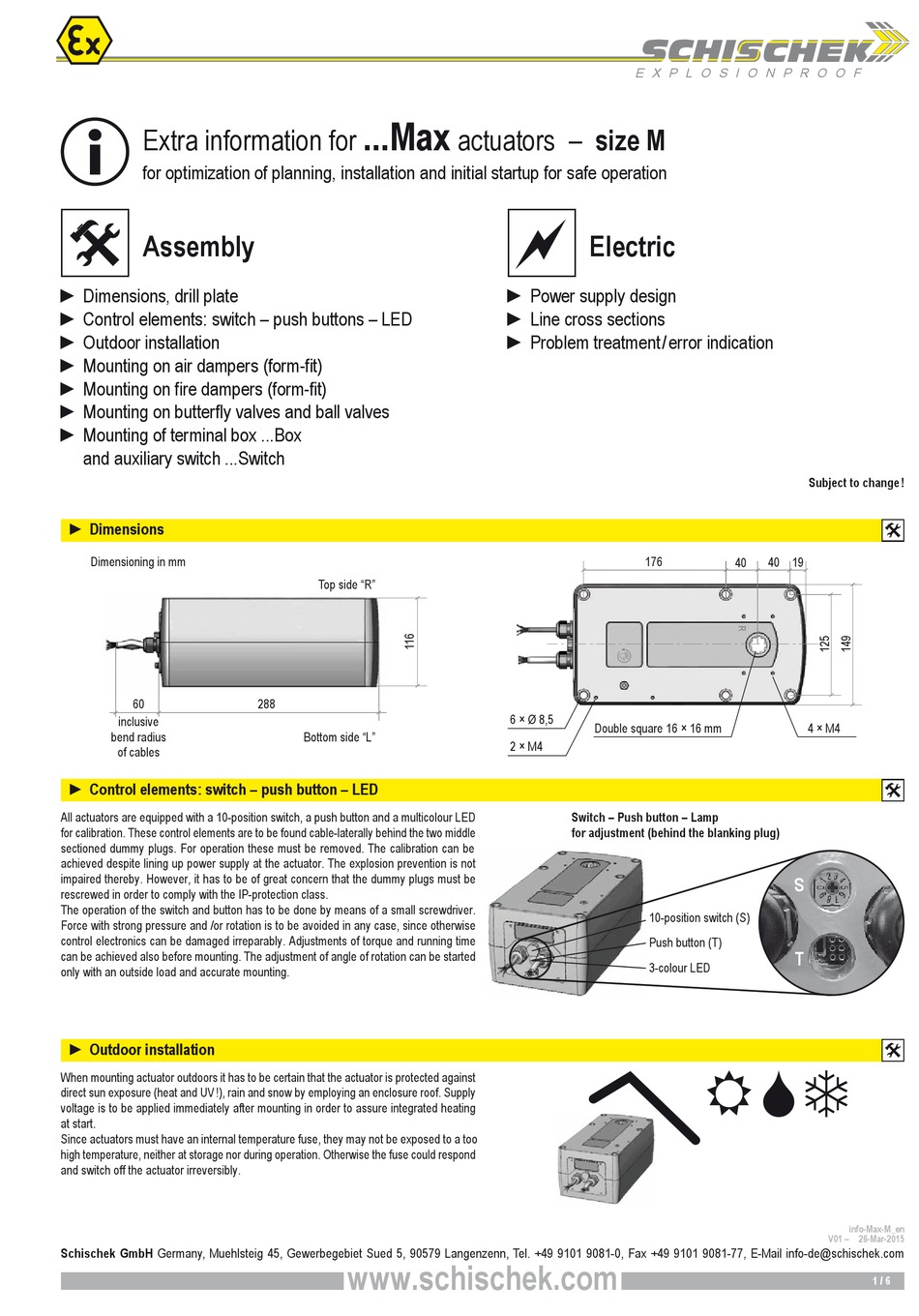

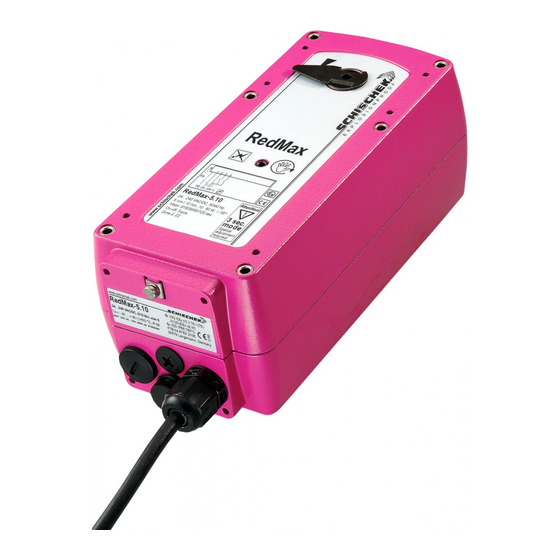

Schischek Max Series Extra Information

Extra information for
for optimization of planning, installation and initial startup for safe operation
Assembly
► Dimensions, drill plate
► Control elements: switch – push buttons – LED
► Outdoor installation
► Mounting on air dampers (form-fit)
► Mounting on fire dampers (form-fit)
► Mounting on butterfly valves and ball valves
► Mounting of terminal box ...Box
and auxiliary switch ...Switch
► Dimensions
Dimensioning in mm
60
inclusive
bend radius
of cables
► Control elements: switch – push button – LED
All actuators are equipped with a 10-position switch, a push button and a multicolour LED
for calibration. These control elements are to be found cable-laterally behind the two middle
sectioned dummy plugs. For operation these must be removed. The calibration can be
achieved despite lining up power supply at the actuator. The explosion prevention is not
impaired thereby. However, it has to be of great concern that the dummy plugs must be
rescrewed in order to comply with the IP-protection class.
The operation of the switch and button has to be done by means of a small screwdriver.
Force with strong pressure and /or rotation is to be avoided in any case, since otherwise
control electronics can be damaged irreparably. Adjustments of torque and running time
can be achieved also before mounting. The adjustment of angle of rotation can be started
only with an outside load and accurate mounting.
► Outdoor installation
When mounting actuator outdoors it has to be certain that the actuator is protected against
direct sun exposure (heat and UV !), rain and snow by employing an enclosure roof. Supply
voltage is to be applied immediately after mounting in order to assure integrated heating
at start.
Since actuators must have an internal temperature fuse, they may not be exposed to a too
high temperature, neither at storage nor during operation. Otherwise the fuse could respond
and switch off the actuator irreversibly.
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail info-de@schischek.com
...Max
Top side "R"
288
Bottom side "L"
www.schischek.com
actuators – size M
Electric
► Power supply design
► Line cross sections
► Problem treatment /error indication
6 × Ø 8,5
Double square 16 × 16 mm
2 × M4
Switch – Push button – Lamp
for adjustment (behind the blanking plug)
E X P L O S I O N P R O O F
Subject to change!
176
40 40 19
4 × M4
S
10-position switch (S)
Push button (T)
T
3-colour LED

info-Max-M_en
V01 – 26-Mar-2015
1 / 6
