Schischek InMax BF Series Manual

InMax
¼ turn actuators – size M
Electrical rotary actuators for use in safe areas with
integrated tripping circuit for safety temperature trigger InPro-TT
On-off / 3-pos. control mode, 24...240 VAC/DC, 95° angle of rotation incl. 5° pretension
30 – 50 – 60 Nm with safety operation (spring return)
Compact. Easy installation. Universal. Cost effective. Safe.
Type Torque
InMax- 30 - BF
30 Nm
InMax- 50 - BF
50 Nm
InMax- 60 - BF 60 Nm
InMax- ... - CTM Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
InMax- ... - VAM Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)

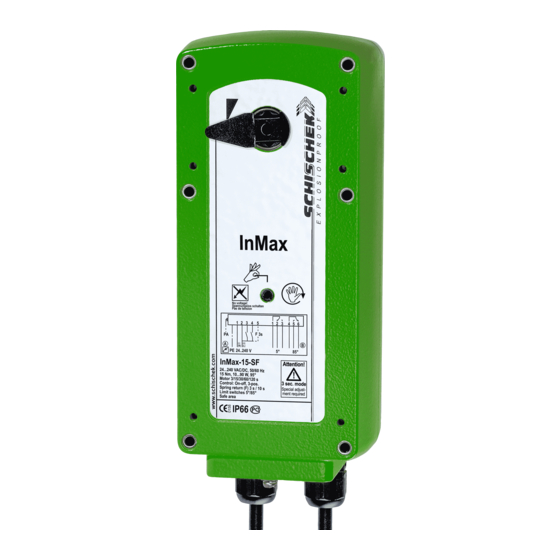

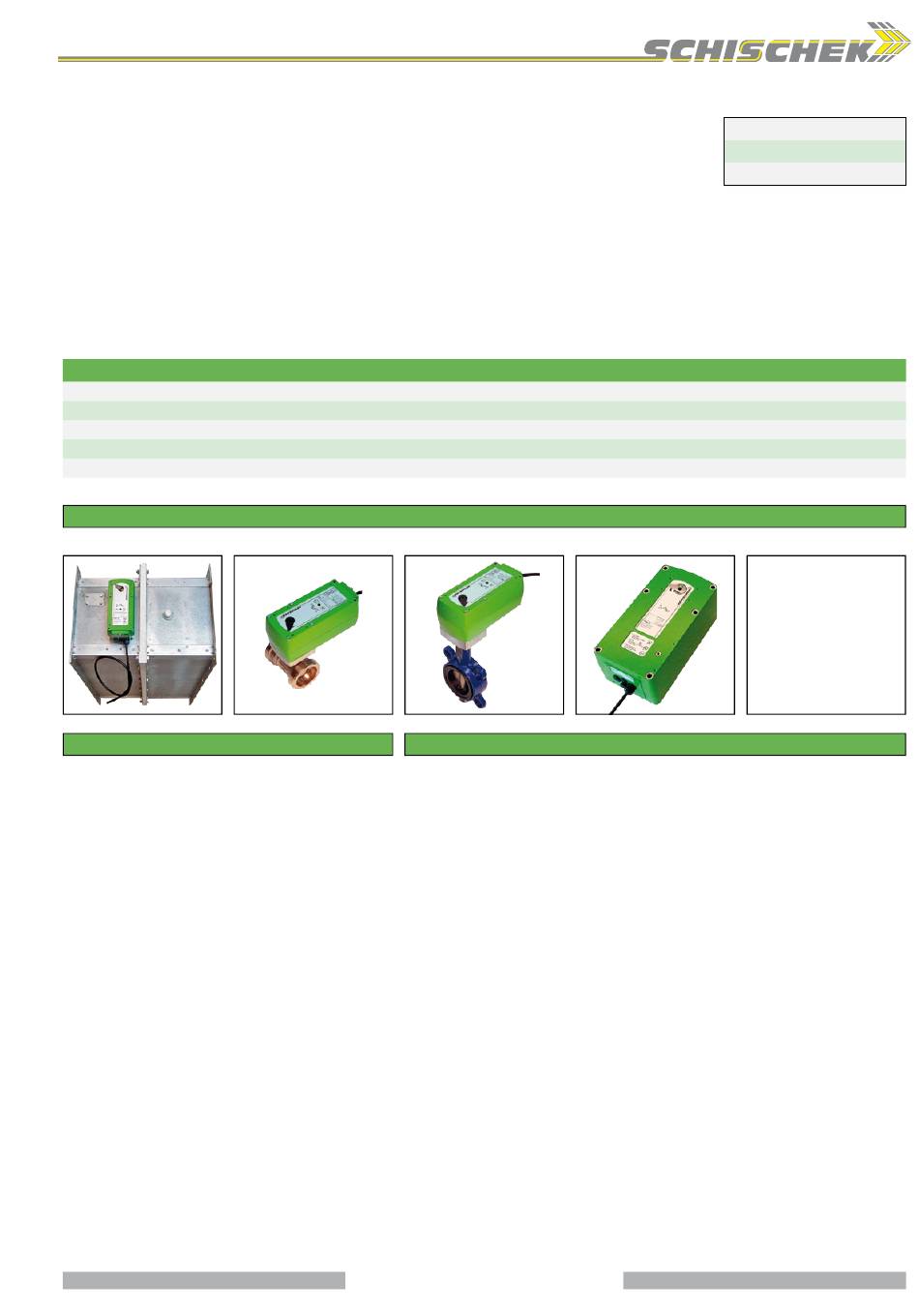

Product views and applications

Fire damper Ball valve
Description
The InMax actuators are a revolution for safety, fire and shut-off damp-
ers, VAV systems, ball valves, throttle valves and other motorized appli-
cations for HVAC systems in chemical, pharmaceutical, industrial and
offshore/onshore plants.
IP67 protection, small dimensions, only 9,5 kg weight, universal functions
and technical data, an integrated heater and an optional stainless steel
housing guarantee safe operation even under difficult environmental
conditions. High quality brushless motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools or
equipment are not required. Motor running times are selectable or
adjustable on site. The integrated universal power supply is self adaptable
to input voltages in the range of 24...240 VAC/DC. The actuators are
100 % overload protected.
...Max-...-BF actuators are equipped with spring return fail safe function,
with 2 integrated auxiliary switches for end position indication and a
tripping circuit for connecting the ...Pro-TT-... safety temperature trigger.
Standard shaft connection is a double square direct coupling with
16 × 16 mm.
Different accessories are available to adapt auxiliary switches, terminal
boxes or adaptions for ball valves and throttle valves and other armatures.
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. +49 9101 9081-0, Fax +49 9101 9081-77, E-Mail info-de@schischek.com
Supply Motor running time
24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/ 90°
24...240 VAC/DC 40 / 60 / 90 / 120 / 150 s/ 90°
24...240 VAC/DC 40 / 60 / 90 / 120
Throttle valve
Highlights
► Industrial use
► Universal supply unit from 24...240 VAC/ DC
►Motor running times 40–60– 90 – 120–150 s /90° adjustable on site
► On-off and 3-pos. control with spring return function, running time ~ 20 s/90°
► Circuit for direct connection of the ...Pro-TT-... safety temperature trigger
► 2 integrated auxiliary switches, switching at 5° and 85° angle of rotation
► 30 – 50– 60 Nm actuators in the same housing size
► 100 % overload protected
► Compact design and small dimension (L × W × H ~ 288 × 149 × 116 mm)
► Direct coupling to the damper shaft with double square connection 16 × 16 mm
► 95° angle of rotation inclusive 5° pretension
► Robust aluminium housing (optional with seawater resistant coating)
► IP67 protection
► Simple manual override included + preparation for comfortable manual override
► Gear made of stainless steel and sinter metal
► Weight only ~ 9,5 kg
► Integrated heater for ambient temperatures down to −40 °C
► Integrated safety temperature sensor
► Integrated equipment for manual adjustment (push button, lamp, switch)
► Preparation for adaptable and adjustable auxiliary switches type ...Switch
► Wide range of accessories
www.schischek.com
Spring return Control mode Feedback
~ 20 s/90° On-off, 3-pos.
~ 20 s/90° On-off, 3-pos.
s/ 90° ~ 20 s/90° On-off, 3-pos.
or in stainless steel
E X P L O S I O N P R O O F
InMax - ... - BF
InMax - ... - CTM
InMax - ... - VAM
Subject to change!
2 × aux. switches + tripping circuit
2 × aux. switches + tripping circuit
2 × aux. switches + tripping circuit
Wiring diagram
SB 7.2/ 7.3
SB 7.2 /7.3
SB 7.2 /7.3
InMax-M-BF_en
V04 – 9-Nov-2018
1 / 4
