Model PX-504UF
USB/FIREWIRE DVD+R/RW AND CD-R/RW DRIVE
INSTALLATION AND USERS MANUAL
JUNE 2003

Advertisement

Table of Contents
loading

Related Manuals for Plextor PX-504UF

Summary of Contents for Plextor PX-504UF

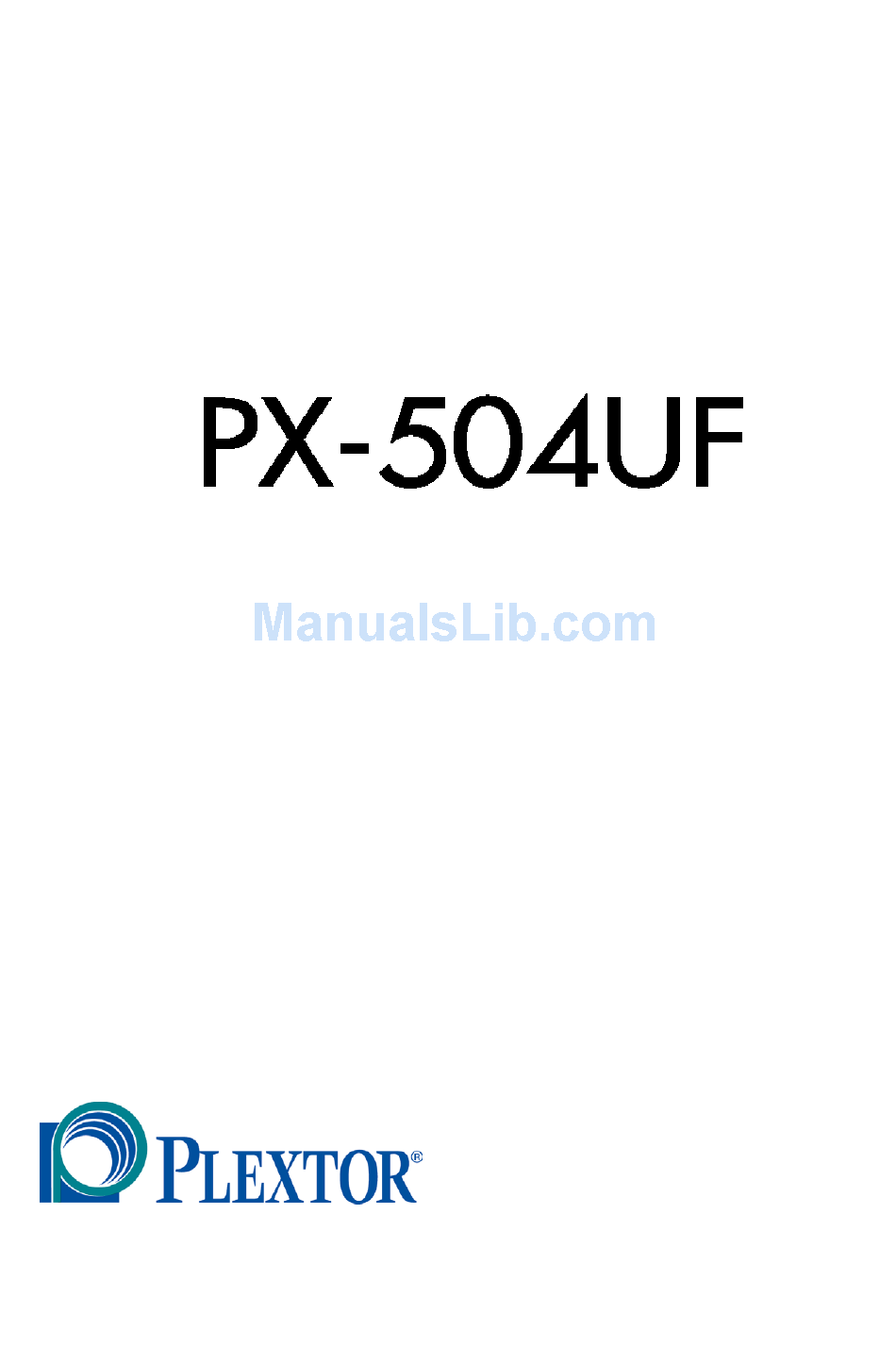

  • Page 1 Model PX-504UF USB/FIREWIRE DVD+R/RW AND CD-R/RW DRIVE INSTALLATION AND USERS MANUAL JUNE 2003...
  • Page 2 Manual copyright ©2003 Plextor Corp. Second edition, June 2003. Plextor and the Plextor logo are registered trademarks of Plextor Corp; and PoweRec is a trademark of Plextor Corp. All other licenses and trademarks are property of their respective owners. Record Your Serial Number For future reference, record the serial number and the TLA code (found on your drive’s label) in the space provided below.

  • Page 3: Declaration Of Conformity

    Radio Interference Regulations of the Canadian Department of Communications. This class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada. Plextor PX-504UF Installation and Users Manual...
  • Page 4 A Laser Caution Label is attached on the bottom of the external drive model. The label reads: “CAUTION – CLASS 3B INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM.” Bottom View of External Drive Showing Caution Label Location Detail of Laser Caution Labels PX-504UF Installation and Users Manual...
  • Page 5 The laser beam emitted from the optical pickup is invisible. Accordingly: • Do not open the optical pickup housing. • Obtain service only from Plextor-authorized personnel. CAUTION: To disconnect the CD drive from an electrical current, pull out the computer’s power plug. Plextor PX-504UF Installation and Users Manual...
  • Page 6 This page intentionally left blank. PX-504UF Installation and Users Manual...

  • Page 7: Table Of Contents

    About this Manual ...1 Meet Your PX-504UF ...2 What the PX-504UF Does...2 Features of the PX-504UF...2 Minimum Configuration to Use the PX-504UF ...4 What You Can Do with the PX-504UF...5 What’s In the Box ...5 Save Your Box!...6 PX-504UF Drive Features and Controls ...7 Front Panel ...7...
  • Page 8 Upgrading Firmware ... 29 Troubleshooting ... 30 Emergency Eject ... 30 5. Frequently Asked Questions ... 31 Appendix A: PX-504UF Specifications ... 33 Appendix B: Technical Support ... 43 How to Contact Plextor Technical Support... 44 Before You E-mail/Log On/FAX/Call for Support... 44 Returns ...

  • Page 9: Getting Started

    Please read this manual carefully and keep it handy for easy reference. Use the manual for installation, operation and troubleshooting. If your drive needs service, see your dealer or call Plextor’s Technical Support Department. In this manual you should find all the information you need to successfully install, operate and troubleshoot your drive.

  • Page 10: Meet Your Px-504Uf

    Full-Speed USB 1.1 (12 megabits per second). • MMC compliance: Supports the MMC-3 command set. • Flash memory: Allows upgrading the PX-504UF to the latest firmware revision (available from the Plextor web site) without opening the computer or physically accessing the drive.
  • Page 11 Power Control, which adjust the laser power for the optimum write strategy. • PoweRec™: Plextor Optimized Writing Error Reduction Control (PoweRec) extends OPC and ROPC to adjust laser power and writing speed so they’re at the optimum settings for that particular disc.

  • Page 12: Minimum Configuration To Use The Px-504Uf

    Section 1. Getting Started Minimum Configuration to Use the PX-504UF • Computer: PC: Pentium III, 800-MHz CPU or faster is required. Pentium III, 1.6-GHz CPU or faster is recommended Macintosh: Must be capable of running Mac OS 9.1 or higher.

  • Page 13: What You Can Do With The Px-504Uf

    What You Can Do with the PX-504UF Just look at some of the things you can do with your PX-504UF: • Record slide shows or digital video onto DVD+R and DVD+RW discs. • Play DVD+R, DVD+RW, DVD-R, and DVD-RW discs.

  • Page 14: Save Your Box

    See the Plextor web site for locations to purchase additional or replacement accessories. Plextor PX-504UF Installation and Users Manual Save Your Box! Be sure to save the box after you have installed your drive. The box and its packaging material were...

  • Page 15: Px-504Uf Drive Features And Controls

    PX-504UF Drive Features and Controls Before proceeding, become familiar with the controls and features of your Plextor drive. Match the parts of your drive to the illustrations below. Front Panel Figure 1: Front panel of the PX-504UF drive • Disc tray: Slides out to allow you to insert a disc.
  • Page 16 Section 1. Getting Started • Eject button: Push once to eject the tray. Push again to load the tray back into the PX-504UF. To prevent wear on the drive, always use the eject button to load the tray. • Disc/busy indicator: Illuminated green for disc loading, ejecting, initializing, playing, and writing.

  • Page 17: Rear Panel

    • IEEE 1394 6-pin connector: Connect an IEEE 1394 (FireWire) cable with a 6-pin connector here. NOTE: The PX-504UF does not get its power from the IEEE 1394 bus or the USB bus. It must be connected to the AC adapter.
  • Page 18 Section 1. Getting Started • Interface switch: Switch the PX-504UF drive to operate with a different interface (USB, IEEE 1394). This lets you keep several interface cables attached to your drive and switch between them. If you change interfaces with this switch, you must also cycle the PX- 504UF power.

  • Page 19: About Software

    CD or DVD. One component of Easy CD Creator is DirectCD, which makes the Plextor PX-504UF drive as easy to use as a disk drive. You can drag and drop files, rename files, delete files, and create new directories right on the recordable CD or DVD disc.

  • Page 20: For More Details About Software

    A list of various software packages that you can use with your Plextor drive can be found in the Support/Compatibility section of www.plextor.com.

  • Page 21: Installing Your Px-504Uf

    USB. 3. Set the PX-504UF interface switch for IEEE 1394 or USB. 4. Connect the AC adapter to an electrical outlet and to the PX-504UF. 5. Turn the drive’s POWER switch ON (the “1” position). 6. Connect the USB or FireWire cable from your PX-504UF drive to the computer.

  • Page 22: Determine Your Computer's Operating System

    Windows Me or Windows XP or the Macintosh operating system. If you are not running one of these operating systems you cannot use the PX- 504UF. You cannot use the PX-504UF with early versions of Windows 98; it must be Windows 98SE (Second Edition).

  • Page 23: Connect The Px-504Uf Drive

    To install the PX-504UF drive in a Windows-based computer: 1. Turn ON your computer system. 2. Set the interface switch at the rear of the PX-504UF drive to USB (switch to the right) if you are using a USB cable; or to 1394 (switch to the left) if you are using IEEE 1394.
  • Page 24 Figure 3. Connecting the AC Adapter and USB Cable The drive should be automatically recognized by the computer. In some cases, you may have to reboot (turn the computer off, then on again) for the PX-504UF to be recognized. Plextor PX-504UF Installation and Users Manual...

  • Page 25: Identifying Cables And Ports

    Section 2. Installing Your PX-504UF Identifying Cables and Ports This illustration will help you identify the cables and computer ports and make the necessary connections. Figure 4: Identifying cables and ports on your computer Plextor PX-504UF Installation and Users Manual...

  • Page 26: If You Have Windows 98Se And Firewire

    • If you have a DVD Player, insert the Plextor disc and install from the button labeled “98SE USB Drivers.” • If you do not have the Plextor disc or do not have a DVD player, download the PX-504UF drivers from: http://www.plextor.com/english/support/drivers/drivers.html#usb...

  • Page 27: Make Sure The Drive Is Recognized

    Windows icons displayed on the desktop. 2. Open Windows Explorer or My Computer and ensure there is an icon for the PX-504UF. The drive may be D: or E: or another designator. 3. In Windows 98SE, or Me, once the system comes up click the Start button, then Settings, then Control Panel, then double-click on System icon, then click on Device Manager tab.

  • Page 28: Switching Between Usb And Ieee 1394 Interfaces

    1. Ensure the interface cable for the desired USB or IEEE 1394 interface is attached to the PX-504UF and to the computer. 2. At the rear of the PX-504UF, set the interface switch to the desired interface. 3. Cycle the PX-504UF power. (That is, turn the PX-504UF’s POWER switch off, then on again.)

  • Page 29: If You're Using Firewire

    • The PX-504UF is not bus powered—that is, it doesn’t get its power from the IEEE 1394 cable—so you have to use the bundled AC adapter.
  • Page 30 ANOTHER NOTE: For optimum performance if you use the USB interface, you will also need Mac OS X. If you use OS 8.6.x or 9.x with a built-in USB port or a PCI adapter, your PX-504UF will achieve only USB 1.1 performance.

  • Page 31: Using Your Px-504Uf

    “plus” media; that is, to discs marked as “DVD+R” or “DVD+RW.” To sum up, the PX-504UF currently supports these types of DVD media: • Digital Video Discs: You can immediately play pre-recorded DVD discs, including movies and other DVDs.

  • Page 32: Cd-Rom Media

    Section 3. Using Your PX-504UF CD-ROM Media In addition, the PX-504UF supports these types of CD media: • CD-ROM: You can immediately play or read pre-recorded compact discs, such as audio CDs and data discs. • CD-R: Recordable CD. You can record on these discs, but only once.

  • Page 33: Plextor Px-504Uf Installation And Users Manual

    Section 3. Using Your PX-504UF Mounting Position You can operate your PX-504UF in either a horizontal or (with the cradle) a vertical position. Figure 5: Operate your PX-504UF in either a horizontal or a vertical position CAUTION: Take special care not to shock or disturb the drive when it is operated in a vertical position.

  • Page 34: Handling Dvd And Cd Media

    To clean the disc, wipe the disc using a clean, soft cotton cloth to remove surface dirt such as fingerprints. Use a straight-line motion, wiping from the center out. Do not wipe the disc in a circular motion. Plextor PX-504UF Installation and Users Manual...

  • Page 35: Playing Dvds

    DVD will not play. If you do accept the change, then the region code setting is changed. But remember: you can change the drive’s region code only 5 times. After that, you can’t change it any more. Plextor PX-504UF Installation and Users Manual...

  • Page 36: Writing To Dvd Media

    Easy CD Creator and DirectCD allow you to write audio, video, data, or other information to writable (CD-R) or rewritable (CD-RW) media. The PX-504UF writes to high-speed CD-RW media, as well as to normal speed CD-RW media. Drives such as the PX-504UF that are capable of writing to high-speed CD-RW media are identified by a “Compact Disc ReWritable High...

  • Page 37: Maintenance And Troubleshooting

    However, we advise that our customers always update drives with the latest available firmware. Before troubleshooting a possible problem with your PX-504UF drive, please visit our web site at www.plextor.com to check if you have the latest firmware.

  • Page 38: Troubleshooting

    To use the emergency eject hole to open the drive: 1. Set the POWER switch at the rear of the PX-504UF drive to OFF. 2. At the front of the PX-504UF drive, insert the emergency eject tool, or a paper clip or other thin, rigid object, into the emergency eject hole.

  • Page 39: Frequently Asked Questions

    A: Neither is “better” or “worse.” They’re just different standards, like English versus metric measurement. Different manufacturers support different standards. The Plextor PX-504UF supports the DVD+R and DVD+RW formats; these formats are also supported by Philips, Sony, Hewlett-Packard, Dell, Ricoh, Yamaha and other manufacturers. DVD- R, DVD-RW and DVD-RAM are supported by Panasonic, Toshiba, Apple Computer, Hitachi, NEC, Pioneer, Samsung and Sharp.
  • Page 40 Buffer Under Run Proof technology compensates for any interruption in data flow to the disc. Plextor drives with this technology “remember” where writing stopped on the disc when the data flow was interrupted, then restart writing in the same place once the data is available again.

  • Page 41: Appendix A: Px-504Uf Specifications

    OS 9.1 or higher recommended. For USB 2.0, OS X) Special considerations for Windows 98SE: To ensure stable IEEE 1394 operation with For Windows 98SE and USB, use the Plextor Recommended Media DVD+R: 4X Mitsubishi Chemical/Verbatim, Taiyo Yuden, Ricoh DVD+R: 2.4X...
  • Page 42 Mode-2, CD-ROM XA, Photo-CD, Video-CD, Multi- session, CD TEXT, CD-I, UDF Logical DVD DVD-ROM Read/Write DVD-Video Multi-border Multi-session Write Sequential write, random access write, DAO Methods, DVD+R/RW Write TAO, DAO, packet write (variable and fixed), Methods, multi-session, SAO CD-R/RW Plextor PX-504UF Installation and Users Manual...
  • Page 43 Yes (Single or dual- layer disc) Mode-1 Mode-2 Stamp, R – Stamp, R, Stamp, R, (Form-1) Stamp, R, – – Stamp, R, (Form-2) Plextor PX-504UF Installation and Users Manual Reads DVD+RW, DVD-RW? – – CD-DA – Stamp, R, Stamp, R, –...
  • Page 44 Entered after 8 minutes of no access to drive (default setting) Wake Mode < 5 sec. (max.) to start drive after sleep Tray Eject < 5 sec. (max.) Time Plextor PX-504UF Installation and Users Manual DVD+R CD-R High Speed CD-RW Media –...
  • Page 45 Total harmonic distortion + noise: Max. 0.1% (1kHz) Dynamic range: Typically 70dB (1kHz) Channel separation: Typically 40dB (1kHz) Frequency response: 20Hz to 20kHz (0dB +1/-5dB) Headphone Wheel knob Volume Control Appendix A: PX-504UF Specifications Plextor PX-504UF Installation and Users Manual...
  • Page 46 Channel separation: Typically 70dB Frequency response: 20Hz to 20kHz (0dB +-3dB) DVD Regional Setting Compatibility RPC phase-2-compatible Changing Max. 5 times regional setting Plextor PX-504UF Installation and Users Manual IEEE Interface 1394 Interface 400 mA 400 mA 1.2A 1.2A 1.15A 1.15A...
  • Page 47 Transfers 400 Mbps (max) ATAPI Refer to the Plextor ATAPI command manual. Command Set Inquiry String PLEXTOR sp DVDR sp sp sp PX-504A sp sp (where “sp” is one space) Other Features Data Buffer 2 MB Read Error CD-ROM Mode 1: 1 block/10...

  • Page 48: Environmental Conditions

    CD/DVD read: 0.15G CD-R write: 0.15G CD-RW rewrite: 0.10G DVD write: 0.10G Vibration, Half sine sweep 5 minutes: 2.0G Non- (Power off, without disc) Operating Plextor PX-504UF Installation and Users Manual (5-300Hz) 0-Pk (5-300Hz 0-Pk (5-300Hz) 0-Pk (5-300Hz) 0-Pk (5-300Hz)
  • Page 49 MTBF 60,000 hours Tray Loading 30,000 load/unload cycles Electrostatic 0-8KV aerial discharge Discharge 0-4KV contact discharge Both with no hard errors, no damage Appendix A: PX-504UF Specifications 0-Pk 0-Pk 0-Pk 0-Pk 0-Pk Plextor PX-504UF Installation and Users Manual 0-Pk 0-Pk...
  • Page 50 Laser Canada Safety Europe Safety Safety Laser Taiwan Korea Australia/NZ Plextor PX-504UF Installation and Users Manual Agency Standard UL60950 (AC adapter and internal drive) 21 CFR 1040.10, 1040.11 FCC Part 15B Class B UL (C-UL) CSA C22.2 No. 60950 (AC adapter and internal...
