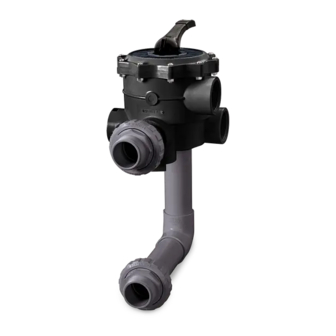

Commercial Filter Valve
Multiport Valve for Commercial Filter Installations
Owner's Manual
10101 Molecular Dr. Suite 200
www.hayward-commercial-pool.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Contents
Safety Instructions...................1
Before You Begin......................3
Installation.............................3
Operation...............................8
Replacement Parts.................10
Warranty...............................14
HCV275C
HCV2575C
HCV375C
HCV475C
Hayward Commercial
Rockville, MD 20850
Phone: 1-800-657-2287
ISHCV275C RevA
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hayward HCV275C
Summary of Contents for Hayward HCV275C
-
Page 1: Table Of Contents
Multiport Valve for Commercial Filter Installations Owner's Manual Contents Safety Instructions....1 Before You Begin......3 Installation......3 Operation.......8 Replacement Parts....10 Warranty.......14 HCV275C HCV2575C HCV375C HCV475C Hayward Commercial 10101 Molecular Dr. Suite 200 Rockville, MD 20850 Phone: 1-800-657-2287 www.hayward-commercial-pool.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 2: Safety Instructions
Suction outlets in the same plane (i.e. floor or wall), must be installed a minimum of three feet (3’) [0.91 meter] apart, as measured from near point to near point. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 3 Failure to do so could result in severe personal injury and/or property damage. WARNING – Never operate or test the circulation system at more than 50 PSI max. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 4: Before You Begin
Before You Begin Compatibility This multiport valve was designed to be used with specific Hayward sand filters. Refer to the table below for available valve models and their compatible filter models: Connection Type Valve Model Filter Size (included) HCF230C HCV275C 2"... -
Page 5: Installation
1/4 turn in one direction as it is slipped to full depth on to the pipe. 10. The connector should be held in position for approximately. 30 seconds to allow the connection to “set”. 11. After assembly, wipe off excess cement. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 6 Using a strap wrench only (never use a stillson type wrench), tighten the joint an additional 1/2 to 1-1/2 turns past hand tight. Tightening beyond this point may induce excessive stress that could cause failure. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 7: Operation
For bypassing filter, but circulating pool water. May be plumbed for "off-sys- tem" pool water access. Ideal for Jet-Air fittings. ® Head Loss 50mm SM MPV Head Loss Curves Filter Mode Backwash Mode HCV275C Flow Rate (GPM) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 8 Backwash Mode HCV2575C Flow Rate (GPM) 80mm SM MPV Head Loss Curves Filter Mode Backwash Mode HCV375C Flow Rate (GPM) 100mm SM MPV Head Loss Curves Filter Mode Backwash Mode HCV475C Flow Rate (GPM) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 9: Replacement Parts
Air Release Vlv & O-Ring HCXMVSTGKIT Sightglass & O-Ring Kit HCXMVSTGKIT Sightglass & O-Ring Kit HCXFW2UNAD009 2" Union Half Adapter HCXFW2UNAD209 2.5" Union Half Adapter HCXFW2UNAOR009A 2" Union O-Ring (2 Pk) HCXFW2UNAOR209A 2.5" Union O-Ring (2 Pk) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... - Page 10 Air Release Vlv & O-Ring HCXMVSTGKIT Sightglass & O-Ring Kit HCXMVSTGKIT4 Sightglass & O-Ring Kit HCXFW2UNAD309 3" Union Half Adapter HCXFW2UNAD409 2.5" Union Half Adapter HCXFW2UNAOR309A 3" Union O-Ring (2 Pk) HCXFW2UNAOR409A 2.5" Union O-Ring (2 Pk) USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 11 Replace all the bolts and nuts and tighten in a crisscross pattern. Turn the valve handle to “FILTER” position. 10. Open all valves (from pump to valve and filter to pool). 11. Turn pump “ON”. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
-
Page 12: Warranty
To obtain warranty replacements or repair, defective components or parts should be returned, transportation paid, to the place of purchase, or to the nearest authorized Hayward service center. For further Hayward dealer or service center information, contact Hayward customer service de- partment.
