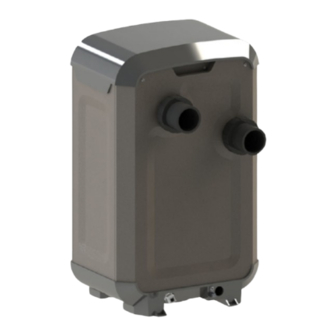

HydraPure
2
inch Residential AOP System
½
Owner's Manual
Hayward Industries
1415 Vantage Park Dr., Suite 400
Charlotte, NC 28203
Phone: (908) 355-7995
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Contents
Overview................................3
Installation............................3
Operation..............................8
HYDRAPURE
101950175500 - RevC
Advertisement
Related Manuals for Hayward HydraPure
Summary of Contents for Hayward HydraPure
- Page 1 101950175500 - RevC HydraPure inch Residential AOP System ½ Owner's Manual Contents Overview........3 Installation......3 Operation......8 HYDRAPURE Hayward Industries 1415 Vantage Park Dr., Suite 400 Charlotte, NC 28203 Phone: (908) 355-7995 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 2 Install ozone generator no less than 1 foot (0.3m) above the maximum water level to prevent water from contacting electrical equipment. WARNING – This product shall only be connected to a power supply receptacle protected by a ground fault circuit interrupter. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 3 DO NOT VIEW UV LAMP WHILE THE DEVICE IS IN OPERATION. SAVE THESE IMPORTANT SAFETY INSTRUCTIONS For the most current version of this install manual go to: www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 4 BEFORE operating HydraPure. NOTE: UV light, whether from HydraPure or the sun, will deplete the pool’s chlorine over time. It’s im- portant to maintain the proper level of Cyanuric Acid (Stabilizer) to prevent this reaction. Use the recom- mended level of Cyanuric Acid regardless of whether the pool is indoors or outdoors.
- Page 5 Determine a Suitable Location The HydraPure must be mounted at least 5' from the pool (more, if local codes require). The Hydra- Pure should be installed after all equipment (pump, filter, heater) but prior to any chlorinators (salt cell, tablet feeder, liquid injection).
- Page 6 NOTE the inlet and outlet pipe positions. Connecting Power to the HydraPure Unit Hardwired: 120V or 240V HydraPure unit: Follow steps 1 & 2 below. Use only liquid-tight flexible non-metallic conduit for Electrical connections. Remove the lid by following the instruc- tions on the bottom of page 6.
- Page 7 Corded: Use Kit Number HYDRACORDKIT (sold separately) for 120V corded installation. Follow steps 1 & 2 below. Ground Plug HydraPure into a GFCI outlet. Remove the lid by following the instructions on the bottom of this page. To install the HYDRACORDKIT, attach wires to connections according to the illustration above.
- Page 8 This would be necessary when the HydraPure Unit is positioned with the base of the unit greater than 1’ above water level. In that case the inlet check valve must be changed based on the chart below.
- Page 9 Solid red OZONE BULB LIFE indicates Lamp is not ered on. Bulbs and ballast should be inspected for powered on. Bulbs and ballast should be inspected proper connection prior to replacement. See page 12 for proper connection prior to replacement. See page USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 10 Remove screws to lid. to ensure optimal performance. WARNING: Before cleaning, turn off all power to the HydraPure unit and pool pump. Allow at least 15 minutes for the lamp(s) in the unit to cool. Never remove the electrical enclosure cover without first...
- Page 11 The quartz tube must be completely dried and clear of residue, replace with new O-ring before reassembly. CAUTION: Do not use tools on the quartz tube. Wear gloves to protect your hands in case the tube breaks. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 12 Confirm that there are no leaks then turn off pump. Carefully replace lamps, spring clip and connect lamps to ballast. Reattach electronics cover and the lid. Turn power on to unit and turn pump on. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 13 UV Lamps Replacement WARNING: Turn off all power to the HydraPure unit and pool pump. Before proceeding allow at least 15 minutes for the lamp(s) in the unit to cool. Never remove the electrical enclosure cover without first disconnecting the power source from the HydraPure unit. Never remove the HydraPure unit’s cover without turning off the pump.
- Page 14 Ozone Lamps Replacement WARNING: Turn off all power to the HydraPure unit and pool pump. Before proceeding allow at least 15 minutes for the lamp(s) in the unit to cool. Never remove the electrical enclosure cover without first disconnecting the power source from the HydraPure unit.
- Page 15 After power is restored, press and hold OZONE BULB LIFE Button, for a minimum of 15 seconds, to reset the lamp life indicator. Discard lamp(s) appropriately. Visit www. lamprecycle.org for instructions on disposal. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 16 Winterizing WARNING: Turn off all power to the HydraPure unit and pool pump before proceeding to winterize. Remove Winterizing O-ring plug near the bot- tom of the unit by turning counter clockwise. Note, there will be an initial rush of water from the unit after the plug is removed.
- Page 17 A table of replacement parts is shown below. Refer to the diagram on page 17 when using the table. ITEM NO. PART NUMBER DESCRIPTION HYDRACORDKIT KIT, CONVERSION, 120V CORDED HYDRAPURE HYDRAMEMBRANE REPLACEMENT, MEMBRANE SW & CABLE HYDRAPCBA BOARD W/TUBES & SENSOR...
- Page 18 Replacement Parts USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 19 This page intentionally left blank USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 20 Hayward Industries, Inc. © 2024 Hayward Industries, Inc. All other trademarks not owned by Hayward are the property of their respective owners. Hayward is not in any way affiliated with or endorsed by those third parties. For patent information, refer to www.hayward.com/patents.
