Basic safety precautions should always be followed, including the following: Failure to follow instructions
can cause severe injury and/or death.
This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for
one of the following signal words and be alert to the potential for personal injury.
WARNING warns about hazards that could cause serious personal injury, death or major property
damage and if ignored presents a potential hazard.
CAUTION warns about hazards that will or can cause minor or moderate personal injury and/or property
damage and if ignored presents a potential hazard. It can also make consumers aware of actions that are
unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
Use only High Rate Sand No. 20 Silica Sand (.45mm - .55mm)
Owner's Manual
High Rate Sand Filter
IMPORTANT SAFETY INSTRUCTIONS
Hayward Pool Products
620 Division Street, Elizabeth, NJ 07207
Phone: (908) 351.5400
www.hayward.com
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Contents
Warnings....................................2
Introduction...............................4
Installation.................................4
Filter Base Installation...............6
Replacement Parts......................7
Warrantee & Registration .........8
Model S200
IS200 Rev C
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hayward S200
Summary of Contents for Hayward S200
- Page 1 The NOTICE label indicates special instructions that are important but not related to hazards. Hayward Pool Products 620 Division Street, Elizabeth, NJ 07207 Phone: (908) 351.5400 www.hayward.com USE ONLY HAYWARD GENUINE REPLACEMENT PARTS Use only High Rate Sand No. 20 Silica Sand (.45mm - .55mm)
- Page 2 50 PSI. Do not purge the system with compressed air. Purging the system with compressed air can cause components to explode, with risk of severe injury or death to anyone nearby. Use only a low pressure (below 5 PSI), high volume blower when air purging the pump, filter, or piping. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 3 Unawareness of impending danger. Failure to perceive heat. Failure to recognize the need to leave the spa. Physical inability to exit the spa. Fetal damage in pregnant women. Unconsciousness resulting in danger of drowning. SAVE THESE INSTRUCTIONS USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...

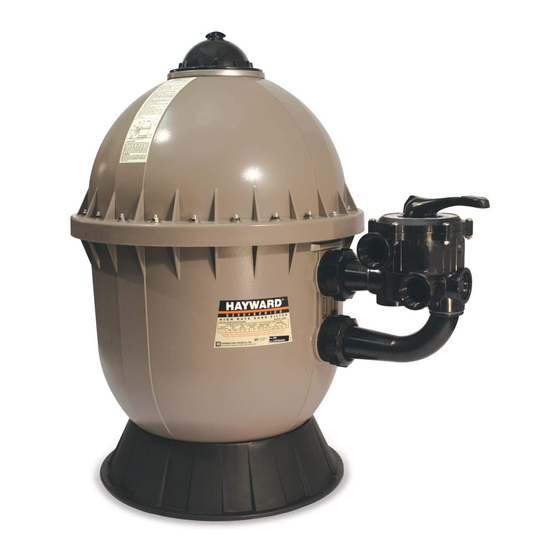

- Page 4 Your Hayward S-200 high-rate sand filter is a high performance, totally corrosion-proof filter that blends superior flow characteristics and features with ease of operation. It represents the very latest in high-rate sand filter technology. It is virtually foolproof in design and operation and when installed, operated and maintained according to instructions, your filter will produce clear, sparkling water with only the least attention and care.
- Page 5 2. Depress Vari-Flo control valve handle and rotate so as to set pointer on valve top between any two positions. This will allow water to drain from the valve. Leave valve in this "inactive" position. 3. Drain and winterize pump according to pump instructions. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
- Page 6 Consult your local authorized dealer or service center. No returns may be made directly to the factory without the expressed authorization of Hayward Pool Products, Inc. PLEASE REALIZE: Pure, clear swimming pool water is a combination of two factors—adequate filtration and proper water chemistry balance. One without the other will not give the clean water you desire.
-
Page 7: Specifications
2. Align and screw the pipe assembly into the threaded hole in the bottom of the filter tank – hand tight. 3. Apply wrench to “flats” next to the cap and tighten approximately ¼ turn. USE ONLY HAYWARD GENUINE REPLACEMENT PARTS... -
Page 8: Product Registration
The express limited warranty above constitutes the entire warranty of Hayward Pool Products with respect to its’ pool products and is in lieu of all other warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose. In no event shall Hayward Pool products be responsible for any consequential, special or incidental damages of any nature.
