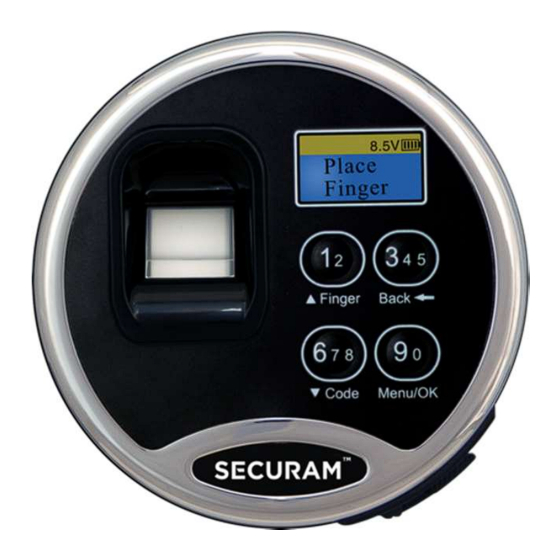

- Page 1 Document No.: S01A-FPC-0601A-M Version No.: V1.01 USER ScanLogic Audit Operating Instructions Part Number: FPC-0601A-M 1 ． Optical Fingerprint Reader 2 ． LCD Screen 3 ． Digital Pad SECURAM Systems Inc. Page 1...
- Page 2 For installation and wiring refer to the installation instructions. About Default Codes: The ScanLogic Audit has 1 default code 1234567890. However upon enrollment and use of the first fingerprint (ID01), this default code is deleted. It is important to set a new code relative to this fingerprint.
-
Page 3: Table Of Contents
26. Set time delay 27. Unlock with an enrolled user 28. Set number of locks 29. Authorize access to locks 30. Delete one user / all users 31. Wrong entry penalty 32. System info. 33. Specifications SECURAM Systems Inc. Page 3... -
Page 4: Lock Set Up
Now enter the default Administrator Code - which is 1234567890 Important – The ScanLogic Audit has a Multi-Numeric EntryPad which means that a single key on the EntryPad can represent more than one number. In order to enter a “5”, press the button marked “345” just once. Likewise to enter a “7”, press the button marked “678”... -
Page 5: Open The Lock Using An Enrolled Fingerprint
Press “▲” or “▼” to scroll to “Enroll New User”. Press “Menu/OK” again. Place another finger on the fingerprint reader window and hold for the enrollment process to complete. The additional fingerprint is now enrolled as the next available User ID# SECURAM Systems Inc. Page 5... -
Page 6: Set/Change User Code
To Program or “Set” the User Code: Unlock the safe lock system with the fingerprint of ID No.03. The LCD will display “Select Menu” Press “▲” or “▼” to scroll to “Set/Change User Code”. SECURAM Systems Inc. Page 6... -
Page 7: Disable User Code
Unlock the system with an administrator’s fingerprint (ID No. 01 or 02). The LCD will display “Select Menu” Press “▲” or “▼” to scroll to “Disable User”. Press “▲” or “▼” to select the ID No. to disable (e.g. ID 03). Press “Menu/OK”. SECURAM Systems Inc. Page 7... -
Page 8: Enable User
Unlock the system with an administrator’s fingerprint (ID No. 01 or 02). The LCD will display “Select Menu” “Set/Cancel Time Delay”. Press “▲” or “▼” to scroll to Press “Menu/OK”. Press “▲” or “▼” to set time delay (00 to 99 min). Press “Menu/OK”. SECURAM Systems Inc. Page 8... -
Page 9: Time Delay - Unlock With An Enrolled Fingerprint
The LCD screen flashes with remaining time every 15 seconds. Since the Time Window has been set as 5 minutes in this example, a valid fingerprint or code must be presented during the 5 minute Time Window to unlock SECURAM Systems Inc. Page 9... -
Page 10: Time Delay - Unlock With A User Code
Unlock with an administrator’s fingerprint (ID No. 01 or 02).When the LCD shows “Select Menu”, press “▲” or “▼” to select “Set number of locks”. Press “Menu/OK”. Enter Mfc. code. 9316961396 Press “▲” or “▼” to set number of locks. SECURAM Systems Inc. Page 10... -
Page 11: Authorize Access To Locks
Note: Administrators (ID No. 01 and 02) can open all locks. For example, to authorize users with ID No. 03, 04 and 05 to be able to open only Lock 2: When the LCD screen shows: SECURAM Systems Inc. Page 11... -
Page 12: Delete All Users
The EntryPad starts deleting users from ID No. 01 to ID No. 30. ▪▪▪▪▪▪ Note: After deleting all users, all the enrolled fingerprints and codes are deleted completely. The Administrators Code is reset to 1234567890 SECURAM Systems Inc. Page 12... -
Page 13: Wrong Entry Penalty
Incorrect fingerprint entries will not initiate penalty time. 20. Set Security Level The ScanLogic Audit has 3 security modes as follows: Level 1: EntryPad can be operated by a code. Level 2: EntryPad must be operated by a fingerprint and its bound code. -
Page 14: Enroll The Second Or Additional Fingerprints And Bound Code
Note: Follow the same steps to change any valid code. 24. Enroll the second or additional codes (Level 1) Unlock with the code of ID 01, When the LCD screen shows “Select Menu”, press “▲” or SECURAM Systems Inc. Page 14... -
Page 15: Disable / Enable User
“System INFO.” Press “Menu/OK” and the LCD will show: This indicates that up to 30 users can be enrolled in the EntryPad and there is no user enrolled currently. The EntryPad firmware version is V9.82110909-27. SECURAM Systems Inc. Page 15... -
Page 16: Specifications
➤Battery Life Span: About 1 year ➤Batter Low Voltage: 5.4± 0.2V ➤Working Temperature: 0℃ ~ + 49℃ ➤Fingerprint Reader Dimension: 6” (L) x 2-12/16” (W) x 1-11/16” (T) ➤Working Humidity (Max): 90% SECURAM Systems, Inc. U.S.A. SECURAM Systems Inc. Page 16...
