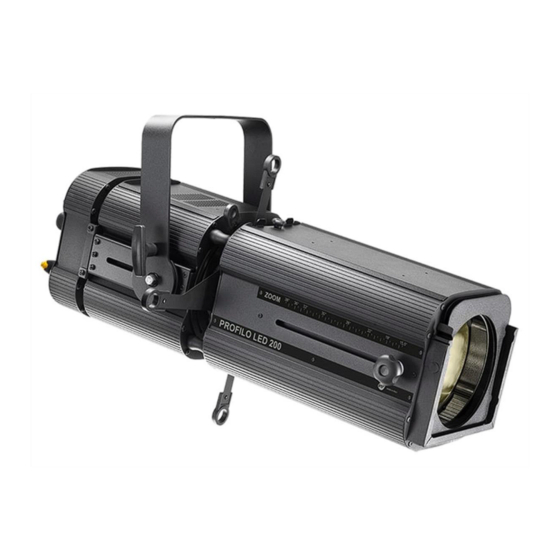

- Page 2 Le informazioni contenute in questo documento sono state attentamente redatte e controllate. Tuttavia non è assunta alcuna responsabilità per eventuali inesattezze. Tutti i diritti sono riservati e questo documento non può essere copiato, fotocopiato, riprodotto per intero o in parte senza previo consenso scritto della D.T.S . D.T.S.
-
Page 3: Table Of Contents
INDEX: 1- SYMBOLS ......................... 4 2- GENERAL WARNING ....................4 3- GENERAL WARRANTY CONDITIONS ..............4 4- TECHNICAL FEATURES ..................5 5- ACCESSORIES ......................6 6- IMPORTANT SAFETY INFORMATION ..............7 6.1 Fire prevention...................... 7 6.2 Prevention of electric shock .................. 7 6.3 Safety ........................ -
Page 4: 1- Symbols
1- SYMBOLS Graphic symbols used on this manual: THIS SYMBOL INDICATES A HOT SURFACE THIS SYMBOL INDICATES ELECTRIC SHOCK RISK THIS SYMBOL INDICATES GENERAL RISK THIS SYMBOL INDICATES THE MAXIMUM OPERATING AMBIENT TEMPERATURE THIS SYMBOL MEANS “DO NOT STARE AT THE OPERATING LIGHT SOURCE” THIS SYMBOL INDICATES PHOTOBIOLOGICAL SAFETY THIS SYMBOL INDICATES THE EUROPEAN... -
Page 5: 4- Technical Features
DMX 512 / RDM or Manual control 7 DMX channels (Default) or 2 DMX channels 4-digit 7-segment LED display + 4 soft keys Internal operating system updatable via DTS Dongle Firmware Uploader Power supply Full-range 100-240Vac 50-60 Hz Consumption: 200W Max Connections Power supply: PowerCON TRUE1 In&Out panel connectors... -
Page 6: 5- Accessories
- Iris/diaphragm (code 03.TA225) - Gobo holder (DTS Code 03.TA226) - “C” Clamp G60 (Max. Load 50 Kg) (DTS Code 0521A004) - Safety cable 3 mm x 60 cm, max capacity load 60 Kg (code 0521A010) - DTS Dongle Firmware Uploader (code 03.LA.206) -
Page 7: 6- Important Safety Information
6- IMPORTANT SAFETY INFORMATION 6.1 Fire prevention: Replace any blown or damaged fuses only with those of identical value: T 3.15A 250V. 6.2 Prevention from electric shock: High voltage is present inside the unit. Unplug the unit prior to performing any operation which involves touching the inside of the unit. -
Page 8: 7- Installation
7- INSTALLATION The unit is suitable for dry locations only. PROFILO LED 200 CT can be installed on a truss or on the ceiling. It is recommend the use of appropriate clamps to fix the unit to the mounting surface. ATTENTION: A safety cable (code 0521A010) must be securely fixed to the unit’s mounting bracket and to the support structure of the projector as shown in the picture below. -
Page 9: 8- Input / Output Connections
8- INPUT / OUTPUT CONNECTIONS... -
Page 10: 9- Dmx Signal Connection
9- DMX SIGNAL CONNECTION: The unit operates using a digital DMX 512 signal. Connection between the controller and the unit or between units must be carried out using a two pair screened ø 0.5 mm. Ensure that the conductors do not touch each other. Do not connect the cable ground to the DMX connector chassis. -
Page 11: Dmx Addresses
9.1 DMX addresses PROFILO LED 200 CT can be controlled with 7 DMX channels (Default) or 2 DMX channels. In order to use the unit in 7 DMX channels mode (Default), set the following addresses on the mixer: Projector 1 A001 If you want to select the next projector, just add “7”... -
Page 12: 10- Rdm Functions
10- RDM FUNCTIONS By using a RDM controller it is possible to set DMX address, DMX mode and other parameters. PROFILO LED 200 CT accepts the following RDM commands: DEVICE_INFO To read the following parameters: • RDM protocol version • Fixture model ID •... -
Page 13: 11- Firmware Updating
Using these options, it is possible to change the fixture’s setting. Changing the DTS settings can vary the functions of the unit so that it does not respond to the DMX 512 used to control it. Carefully follow the instructions below before carrying out any variations or selections. - Page 14 Firmware release 1.02 RDM Device Model ID 0x0D47 0x01 “7 channels” DMX Personality IDs 0x02 “2 channels” MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION Display normal orientation for floor mounting position (Default) Display inverted orientation for suspended mounting position ...
-
Page 15: 13- Manual Mode
MAIN MENU LEVEL 1 LEVEL 2 LEVEL 3 FUNCTION No DMX action. Keep last valid DMX signal (Default) All channels ON @ 60% All channels ON @ 100% ... -
Page 16: 14- Error Messages
14- ERROR MESSAGES ERROR SHOWED ON DISPLAY APPEARS WHEN LED thermal sensor damaged (open or in short circuit). Unit immediately goes in black-out. LED temperature detected over 70°C. Unit immediately goes in black-out. Micro controller thermal sensor damaged (open or in short circuit). -
Page 17: 15- Dmx Protocol
15- DMX PROTOCOL Firmware release 1.02 RDM Device Model ID 0x0D47 0x01 “7 channels” DMX Personality IDs 0x02 “2 channels” 7 CHANNELS MODE (Default) WARM WHITE 2700K COLD WHITE 6500K SHUTTER DIMMER DIMMER FINE FUNCTIONS Name DMX levels WARM WHITE 2700K 0..255 Proportional color from min to max COLD WHITE 6500K... - Page 18 Name DMX levels FUNCTIONS (staying 0..14 No function on desired option for 15..24 SMOOTH OFF 5 seconds) 25..26 SMOOTH 1 (25 ms) 27..28 SMOOTH 2 (50 ms) 29..30 SMOOTH 3 (75 ms) 31..32 SMOOTH 4 (100 ms) (DEFAULT) 33..34 SMOOTH 5 (125 ms) 35..36 SMOOTH 6 (150 ms) 37..38...
- Page 19 2 CHANNELS MODE WARM WHITE 2700K COLD WHITE 6500K Name DMX levels WARM WHITE 2700K 0..255 Proportional color from min to max COLD WHITE 6500K 0..255 Proportional color from min to max...
- Page 20 *0517I335* ● D.T.S. Illuminazione s.r.l. Via Fagnano Selve 12-14 47843 Misano Adriatico (RN) Italy ● Tel.: +39 0541 611131 Fax +39 0541 611111 ● info@dts-lighting.it www.dts-lighting.it 0517I335...
