Bauer 1967E-B Owner's Manual & Safety Instructions

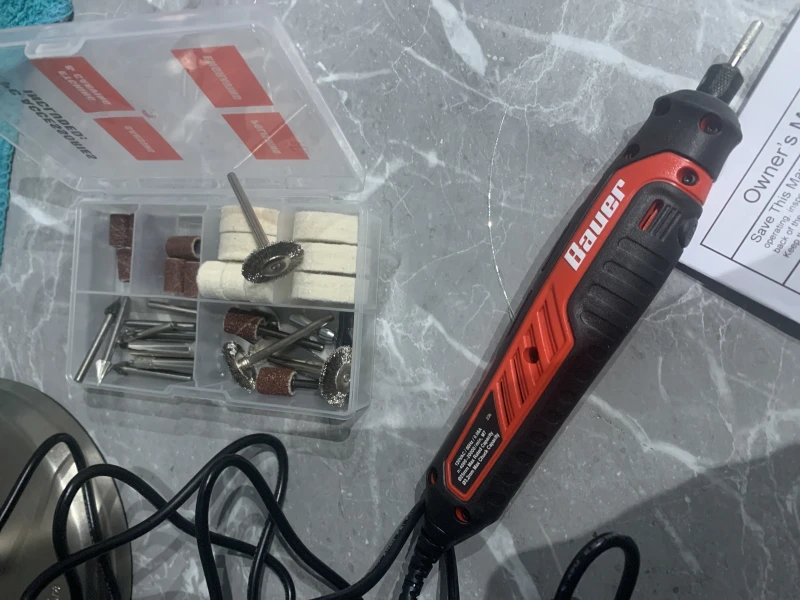

Variable speed precision crafting rotary tool
Hide thumbs Also See for 1967E-B:

Advertisement

Quick Links

Download this manual
Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
VARIABLE SPEED
PRECISION CRAFTING
ROTARY TOOL
email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
©
Copyright
2022 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
1967E-B
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
23e
57001

Advertisement

loading

Related Manuals for Bauer 1967E-B

Summary of Contents for Bauer 1967E-B

  • Page 1 Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference. 1967E-B VARIABLE SPEED PRECISION CRAFTING ROTARY TOOL Visit our website at: http://www.harborfreight.com...

  • Page 2: Table Of Contents

    table of contents Safety ............3 Operation ........... 15 Specifications ..........11 Maintenance ..........17 Setup ............11 Warranty ............ 20 WarninG SyMBOLS anD DeFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

  • Page 3: Safety

    iMpOrtant SaFety inFOrMatiOn General power tool Safety Warnings read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term ″power tool″ in the warnings refers to your mains-operated (corded) power tool. Work area Safety 1.

  • Page 4: Operation

    8. Only use safety equipment that has been approved by an appropriate standards agency. Unapproved safety equipment may not provide adequate protection. Eye protection must be ANSI‑approved and breathing protection must be NIOSH‑approved for the specific hazards in the work area. power tool use and care 1.
  • Page 5 7. Mandrel MOunteD WHeeLS, sanding drums, 13. use clamps to support workpiece whenever cutters or other accessories must be fully practical. never hold a small workpiece in inserted into the collet or chuck. If the mandrel one hand and the tool in the other hand while in use.
  • Page 6 25. People with pacemakers should consult their 26. The warnings, precautions, and instructions physician(s) before use. Electromagnetic fields in discussed in this instruction manual cannot close proximity to heart pacemaker could cause cover all possible conditions and situations pacemaker interference or pacemaker failure. that may occur.
  • Page 7 Safety Warnings Specific For Operations 1. use only wheel types that are recommended 5. When wheel is pinched, snagged or when for your power tool and only for recommended interrupting a cut for any reason, switch off the applications. For example: do not grind with the power tool and hold the power tool motionless side of a cut-off wheel.
  • Page 8 Vibration Safety This tool vibrates during use. Repeated or 2. Do not smoke during use. Nicotine reduces long‑term exposure to vibration may cause the blood supply to the hands and fingers, temporary or permanent physical injury, increasing the risk of vibration‑related injury. particularly to the hands, arms and shoulders.
  • Page 9 Grounding tO preVent eLectric SHOcK anD DeatH FrOM incOrrect GrOunDinG Wire cOnnectiOn: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the tool. never remove the grounding prong from the plug.
  • Page 10 extension cords 1. Grounded tools require a three 7. Make sure the extension cord is properly wired wire extension cord. Double Insulated tools can and in good electrical condition. Always replace use either a two or three wire extension cord. a damaged extension cord or have it repaired by a qualified electrician before using it.

  • Page 11: Specifications

    Specifications Electrical Rating 120VAC / 60Hz / .08A No Load Speed n:4000‑20000/min Rated Capacity Ø25mm (max) Chuck Capacity Ø3.2mm (max) M7 Arbor Size 1/8″ Item 57001 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Setup

    Setup - Before use: read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 13 accessories • Sanding Drums ‑ Install sanding sleeves on • Steel Wire Brush ‑ Use to clean drum. Use for smoothing out rough areas. Replace dirty or rusted metal surfaces. sleeves as they wear and lose grit. Tighten the screw on the Mandrel to increase the tension of the rubber drum to the Sanding drum.
  • Page 14 recommended accessory Speeds When adjusting the Speed Dial, a distinct change in the tool sound will occur at select intervals: • 1 ‑ 4,500 RPM • 4 ‑ 16,000 RPM • 2 ‑ 7,800 RPM • 5 ‑ 20,000 RPM •...
  • Page 15 Operating instructions read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. tool Set up tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 16 General Operating instructions tO preVent SeriOuS inJury WHiLe in OperatiOn: use personal protective equipment. always wear eye protection. Wear anSi-approved safety goggles with side shields. Grip the tool with both hands 1. Select an appropriate accessory 4. Apply the accessory to the work for the job.
  • Page 17 Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn: Make sure that the power Switch is in the off-position and unplug the tool from its electrical outlet before performing any procedure in this section.
  • Page 18 troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Cord not connected. 1. Check that cord is plugged in. 2. No power at outlet. 2. Check power at outlet. If outlet is unpowered, turn off tool and check circuit breaker. If breaker is tripped, make sure circuit is right capacity for tool and circuit has no other loads.
  • Page 19 record product’s Serial number Here: note: If product has no serial number, record month and year of purchase instead. note: Replacement parts may be available for this item. Visit harborfreight.com/ parts for a list of in stock parts. Reference UPC 193175504180. Item 57001 For technical questions, please call 1-888-866-5797.

  • Page 20: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.

This manual is also suitable for:

57001
