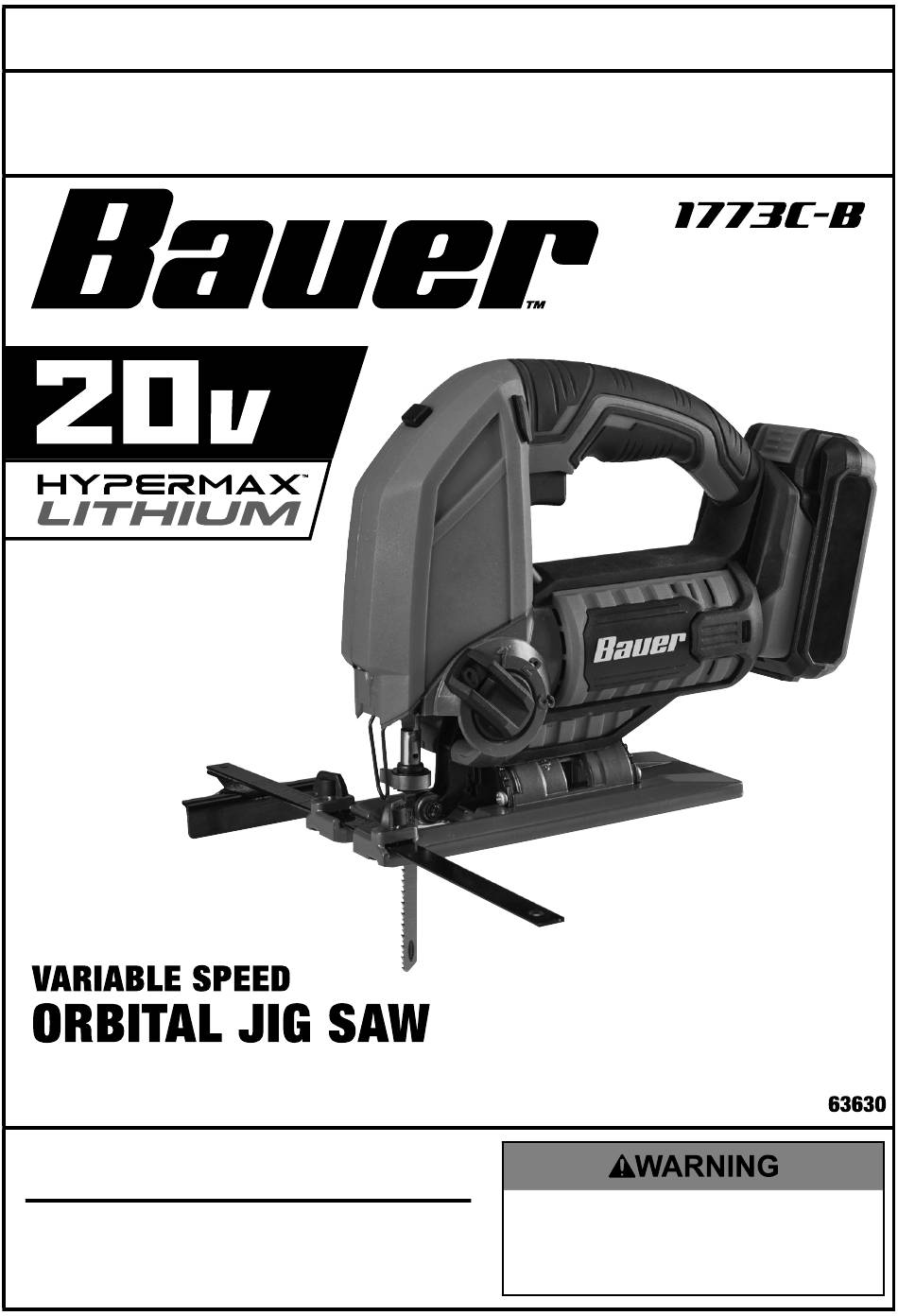

Bauer 1773C-B Owner's Manual & Safety Instructions

20v hypermax lithium variable speed orbital jig saw
Hide thumbs Also See for 1773C-B:

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2017 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Battery and Blade
Sold Separately
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
17j

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1773C-B and is the answer not in the manual?

Questions and answers

Related Manuals for Bauer 1773C-B

Summary of Contents for Bauer 1773C-B

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    Table of contents Safety ............2 Maintenance ..........12 Specifications ..........7 Parts List and Diagram ......14 Setup ............8 Warranty ............ 16 Operation ............ 9 WARNING SyMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 3: Safety

    Electrical Safety Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. personal Safety 1. Stay alert, watch what you are doing 4. Do not overreach. Keep proper footing and and use common sense when operating balance at all times.
  • Page 4 3. When battery pack is not in use, keep it away 4. Under abusive conditions, liquid may be from other metal objects, like paper clips, ejected from the battery; avoid contact. coins, keys, nails, screws or other small metal If contact accidentally occurs, flush with water. objects, that can make a connection from If liquid contacts eyes, additionally seek one terminal to another.
  • Page 5 Lithium Battery Safety Warnings LITHIUM BATTERIES STORE A LARGE AMOUNT OF ENERGy AND WILL VENT FIRE OR EXpLODE IF MISTREATED: 1. Keep Battery pack dry. e. Incinerate, or f. Expose to temperatures greater than 140°F. 2. DO NOT DO ANy OF THE FOLLOWING TO THE BATTERy pAcK: 3.
  • Page 6 Grounding TO pREVENT ELEcTRIc SHOcK AND DEATH FROM INcORREcT GROUNDING: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the charger. Do not use the charger if the power cord or plug is damaged.

  • Page 7: Specifications

    Specifications Battery Type Bauer 20  V Li-ion (sold separately) No Load Speed 0-2400 SPM Blade Type T-Shank (sold separately) Wood: 3-1/8" Maximum Cutting Capacity at 90° Steel: 3/8" Plastic: 1/2" MODEL 1773C-B WARNING TO REDUCE THE RISK OF INJURY, USER MUST READ INSTRUCTION MANUAL.

  • Page 8: Setup

    Setup - Before Use: Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Note: For additional information regarding the parts listed in the following pages, refer to Parts List and Diagram on page 14.

  • Page 9: Operation

    Operating Instructions Read the ENTIRE IMpORTANT SAFETy INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Tool Set Up TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and remove its Battery pack before performing any procedure in this section.
  • Page 10 Setting Bevel Angle Shoe 1. Turn Saw upside-down. 2. Unlock Bevel Lock Lever. 3. Push Shoe forward to disengage gears. 4. Adjust Shoe to proper angle. 5. Push Shoe backward to engage gears. 6. Lock Bevel Lock Lever. Bevel Lock Lever Setting Orbital Action Switch Use the Orbital Action Switch to set one...
  • Page 11 General Operating Instructions 1. Make sure that the Trigger is in the off-position 8. Allow the Saw to come up to full speed and locked, then attach the Battery Pack. before touching the workpiece. 2. Make all necessary adjustments to the Saw. 9.

  • Page 12: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. TO pREVENT SERIOUS INJURy FROM AccIDENTAL OpERATION: Make sure that the Trigger is in the off-position and remove its Battery pack before performing any procedure in this section. TO pREVENT SERIOUS INJURy FROM TOOL FAILURE: Do not use damaged equipment.
  • Page 13 Troubleshooting problem possible causes Likely Solutions Tool will not start. 1. Battery Pack not properly 1. Remove Battery Pack, make sure there are no connected. obstructions, reinsert the Battery Pack according to its shape (it should only fit one way), and press firmly until the Battery Pack locks in place.

  • Page 14: Parts List And Diagram

    parts List and Diagram pLEASE READ THE FOLLOWING cAREFULLy THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
  • Page 15 Assembly Diagram Item 63630 For technical questions, please call 1-888-866-5797. Page 15...

  • Page 16: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.
