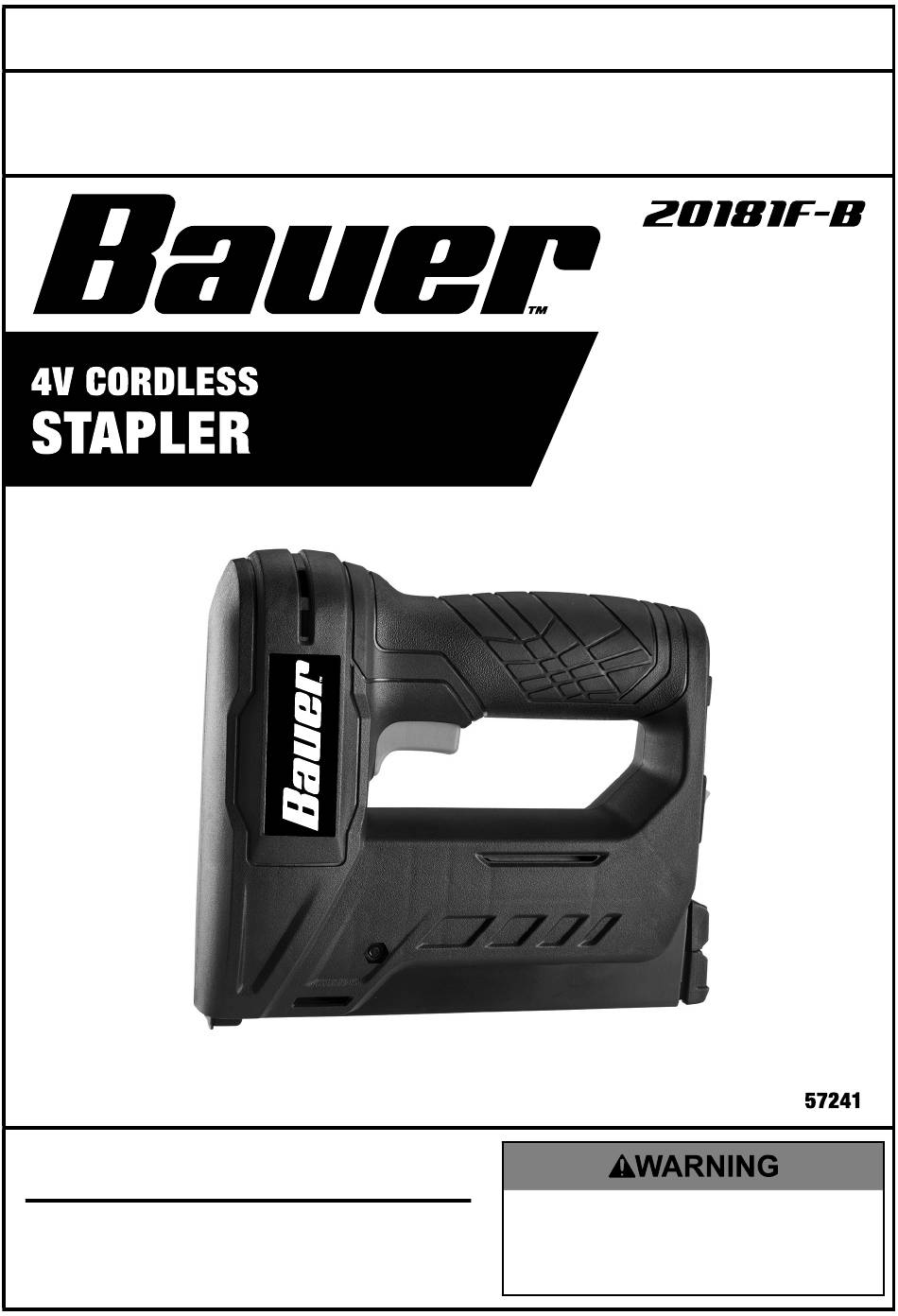

Bauer 20181F-B Owner's Manual & Safety Instructions

4v cordless stapler
Hide thumbs

Advertisement

Quick Links

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures. Write the product's serial number in the back
of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep
this manual and the receipt in a safe and dry place for future reference.
Email our technical support at: productsupport@harborfreight.com
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
©
Copyright
2020 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly,
Visit our website at: http://www.harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
20b

Advertisement

loading

Related Manuals for Bauer 20181F-B

Summary of Contents for Bauer 20181F-B

  • Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and the receipt in a safe and dry place for future reference.

  • Page 2: Table Of Contents

    table of contents Safety ............2 Maintenance ..........9 Specifications ..........7 Parts List and Diagram ......10 Setup ............2 Warranty ............ 12 Operation ............ 7 WarninG SyMBOLS anD DEFinitiOnS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.

  • Page 3: Safety

    Electrical Safety Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. Battery tool use and care Contains Li-Ion battery. Battery must be recycled or disposed of properly. Do not open, crush, heat above 140°...
  • Page 4 25. Avoid unintentional starting. 28. The warnings, precautions, and instructions Prepare to begin work before turning on the tool. discussed in this instruction manual cannot cover all possible conditions and situations that may 26. This product is not a toy. occur.
  • Page 5 Grounding tO prEVEnt ELEctric SHOcK anD DEatH FrOM incOrrEct GrOunDinG: check with a qualified electrician if you are in doubt as to whether the outlet is properly grounded. Do not modify the power cord plug provided with the charger. Do not use the charger if the power cord or plug is damaged.

  • Page 6: Specifications

    Specifications Charger Input Rating 120VAC / 60Hz / 1000mA Battery Rating 4V / 1500mAh Battery Type Li-ion Staple Length 1/4″ / 5/16″ / 3/8″ / 1/2″ Fastener Type 3/8″ Crown Setup - Before use: read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product.
  • Page 7 Operating instructions read the EntirE iMpOrtant SaFEty inFOrMatiOn section at the beginning of this manual including all text under subheadings therein before set up or use of this product. inspect tool before use, looking for damaged, loose, and missing parts. if any problems are found, do not use tool until repaired. Workpiece and Work area Set up 1.
  • Page 8 adding Staples tO prEVEnt SEriOuS inJury FrOM acciDEntaL DiScHarGE, BEFOrE LOaDinG: • Wear anSi-approved safety goggles with side shields. Other people in the work area must also wear ANSI-approved impact safety goggles with side shields. • turn power Switch off. •...

  • Page 9: Maintenance

    Maintenance and Servicing procedures not specifically explained in this manual must be performed only by a qualified technician. tO prEVEnt SEriOuS inJury FrOM acciDEntaL DiScHarGE, BEFOrE any MaintEnancE Or rEpairS arE DOnE (including clearing jams): • Wear anSi-approved safety goggles with side shields. Other people in the work area must also wear ANSI-approved impact safety goggles with side shields.

  • Page 10: Parts List And Diagram

    parts List and Diagram parts List part Description part Description Left Housing Contact Rod Micro Switch Spring Impact Block Main Switch Impact Block Power Switch Impact Block Rail Battery Cell Spring Cell Support Self Locking Rod Self Locking Contact Rod Motor Insulation Washer Guide Pin...
  • Page 11 assembly Diagram Item 57241 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance.

This manual is also suitable for:

57241
