Original instructions

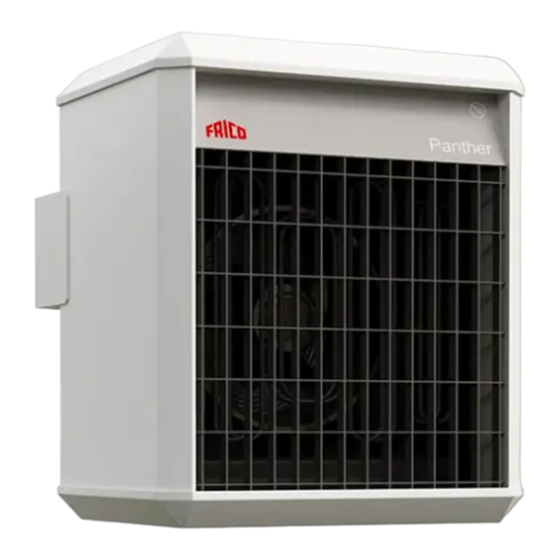

Panther FC 20 - 30 kW
DE
.... 16
FI
.... 28
PL
.... 40
SE
.... 19
NL
.... 31
RU
.... 43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Panther FC 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frico Panther FC 20

Summary of Contents for Frico Panther FC 20

  • Page 1 Original instructions Panther FC 20 - 30 kW ..11 ..13 ..16 ..19 ..22 ..25 ..28 ..31 ..34 ..37 ..40 ..43...
  • Page 2 Panther FC 20-30 Minimum mounting distance Wall 30° 1800 1000 Floor Ceiling FR: Distances minimales DE: Mindestabstand SE: Minimiavstånd NO: Minsteavstand DK: Minimumsafstande Minimietäisyydet NL: Minimale afstand ES: Distancias mínimas Distanze minime PL: Minimalne odległości RU: Минимальные расстояния при установке...
  • Page 3 Panther FC 20-30 Mark and drill holes Detach bracket from the unit ø8,5 ø15 ø9 Mount the bracket on the wall Hang the unit on the bracket Tighten all screws. Adjust the angle and fix it with the lower screws...
  • Page 4 Panther FC 20-30 Connection Frico Control PNF20 PNF30 PNF2023 PNF3023 6.3A x 2 FC PC board Resetting the overheat protection FR: Réinitialisation de la protection anti-surchauffe DE: Zurücksetzen des Überhitzungsschutzes SE: Återställning överhettningsskydd NO: Tilbakestille overopphetingsvernet DK: Nulstilling af overophedningsbeskyttelsen...
  • Page 5 Panther FC 20-30 Item Type Voltage Minimal Cross Nominal Cross section number section cable for terminal block PNF20 334031 400V3N~ 334032 PNF2023 230V3~ PNF30 334033 400V3N~ 334035 PNF3023 230V3~ FR: Section transversale minimale du câble. Section transversale nominale du bornier.
  • Page 6 Panther FC 20-30 Control systems FC Frico control The fan heater must be supplemented with a FC control system. FCDF - FC Direct FCSF - FC Smart FCCF FCBC10 FCLAP FCCF FCBC05 FCPF - FC Pro FCBF - FC Building...

  • Page 7: Technical Specifications

    Panther FC 20-30 Technical specifications Panther FC 20 - 30 (IP44) Item Type Output Airflow Sound Sound ∆t* Motor Voltage Amperage Weight number steps power * pressure* [kW] [m³/h] [dB(A)] [dB(A)] [°C] [kg] PNF20 334031 0/10/20 2250/2800 78 51/62 27/21...

  • Page 8: Internal Wiring Diagram

    Panther FC 20-30 Internal wiring diagram Panther FC 20 kW 400V3N~ Inlet sensor Outlet sensor Wiring diagrams for control system in the FC manual.
  • Page 9 Panther FC 20-30 Internal wiring diagram Panther FC 30 kW 400V3N~ Inlet sensor Outlet sensor Wiring diagrams for control system in the FC manual.
  • Page 10 Panther FC 20-30 Internal wiring diagram Panther FC 20-30 kW 230V3~ Inlet sensor Outlet sensor Wiring diagrams for control system in the FC manual.

  • Page 11: General Instructions

    3 mm, should Panther FC 20–30 is a range of powerful and only be wired by a competent electrician and in quiet fan heaters intended for heating and...

  • Page 12: Maintenance

    Panther FC 20-30 Overheating Handling of product at end of working The fan heater is equipped with an overheat life protection. If it is deployed due to overheating, This product may contain substances necessary reset as follows: for the functionality of the product but 1.
  • Page 13 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...

This manual is also suitable for:

Panther fc 30Pnf20Pnf2023Pnf30Pnf3023
