Device Installation

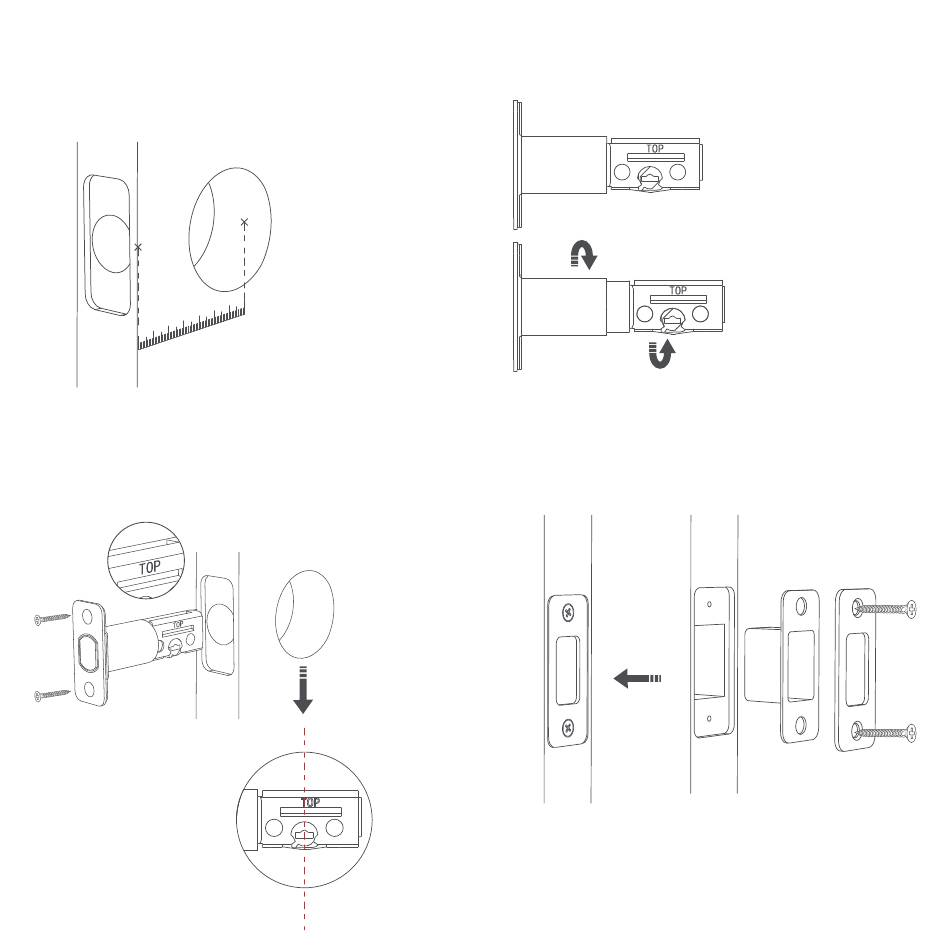

1. Measure the backset: the distance from the edge of the
door to the center of the deadbolt hole. It should be 2 ⅜
in (60 mm) or 2 ¾ in (70 mm).
3 0
2 0
1 0
0
n ( 6 0
2 ⅜ i
3. Fix the latch. Make sure that the "TOP" is facing up.
7 0
6 0
5 0
m )
4 0
( 7 0 m
¾ i n
o r 2
m m )
2. Adjust the latch according to the measurements.
2 ⅜ in (60 mm)
2 ¾ in (70 mm)
4. Install the strike plate to the door frame.
Install directly if it's 2
3/8 in (60mm)
If it's 2 3/4 in (70mm),
rotate the latch 180 degree
to extend the length.
