Summary of Contents for Mirion Technologies STTC
- Page 1 USER MANUAL TIME TO COUNT PROBE STTC /STTC-W code 83023 / 88914...
- Page 3 USER MANUAL STTC / STTC-W code 83023 / 88914 March 2017...
- Page 5 USER MANUAL STTC / STTCW WARNING CANBERRA cannot be held responsible for any damage incurred by the buyer due to faulty use, connection to the wrong voltage, or non-observance of the instructions found in this manual. The information contained herein may be altered without notice.
- Page 6 USER MANUAL STTC / STTC-C 85568_G.doc MIRION TECHNOLOGIES (Canberra) S.A.S, 4 / 14 BP249, ZI de Vauzelles, 37602 Loches Cedex...
-
Page 7: Table Of Contents
USER MANUAL STTC / STTCW ABLE OF ONTENTS PRESENTATION ............................. 7 CHARACTERISTICS ..........................8 2.1. STTC M ....................8 ECHANICAL CHARACTERISTICS 2.2. STTC-W V2 ..................8 MECHANICAL CHARACTERISTICS 2.3. E ......................8 LECTRICAL CHARACTERISTICS 2.4. E ....................8 NVIRONNENTAL CHARACTERISTICS 2.5. - Page 8 USER MANUAL STTC / STTC-C 85568_G.doc MIRION TECHNOLOGIES (Canberra) S.A.S, 6 / 14 BP249, ZI de Vauzelles, 37602 Loches Cedex...
-
Page 9: Presentation

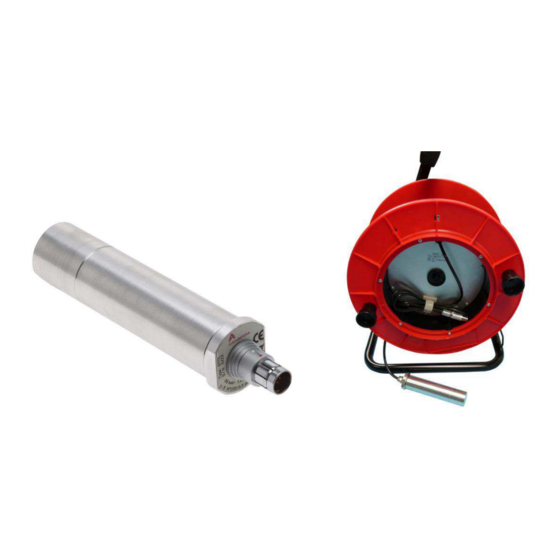

CSP-COM, if the measure of the background is not exactly required. STTC-W is the waterproof version of STTC. It includes a 20 meters cable on a reel and ballast. STTC- W cable is mounted on probe body via a cable gland to ensure good waterproofness down to 40 meters. -
Page 10: Characteristics
133.5 mm The groove on the probe body indicates the position of the detector center. Weight: 130g The probe housing is made of aluminium, and easy to decontaminate. 2.2. STTC-W V2 MECHANICAL CHARACTERISTICS 162 mm Detector 45 mm 30 mm... -
Page 11: Physical Characteristics
USER MANUAL STTC / STTCW STTC: If non-connected: IP 67 (dust proof, water tight up to 1 m). If connected: IP 55 (dust proof, protected from water jets) STTC-W: IP 68: waterproof down to 40 m. 2.5. PHYSICAL CHARACTERISTICS Detector: compensated Geiger Müller counter. - Page 12 USER MANUAL STTC / STTC-C 0° Cs137 10 mSv/H 15° -15° 30° -30° 45° -45° 60° -60° 75° -75° 90° -90° 105° -105° 120° -120° 135° -135° 150° -150° 165° -165° 180° Cs137 Angular Response Energy response Ref : Cs137 @ 10 mSv/h...
-
Page 13: Probe Functioning
3.3. ALARM SET POINTS The new STTC probes are delivered with 10 values for each unit with default setting stored in their memory. They can be changed by connecting the probe to a computer with CSPS (Canberra Smart Probe Software). Selection of the active alarm set point (used for the alarm triggering) is done on the survey meter. -
Page 14: Use
Connect the probe to the survey meter via a 1,50 m cable (code 77336) or a 20 m cable (code 80653). Example of a STTC connected to a RADIAGEM A probe can be connected to the CSP surveymeter even if it is switched on. The host instrument automatically detects the presence of a probe, if the cable is first connected to the probe and then to the surveymeter (e.g.: Radiagem). -
Page 15: Disconnecting The Sttc Probe
4.4. CONNECTING THE STTC TO THE CSP-COM The aluminium ring provided with the STTC is necessary to connect the probe to the CSP-COM. For more details on how to use it, please refer to the CSP-COM User manual (code 85501). - Page 16 USER MANUAL STTC / STTC-C Warranty Statement Canberra (we, us, our) warrants to the customer (you, your) that for a period of ninety (90) days from the date of shipment, software provided by us in connection with equipment manufactured by us shall operate in accordance with applicable specifications when used with equipment manufactured by us and that the media on which the software is provided shall be free from defects.
