Operating and
Maintenance Manual

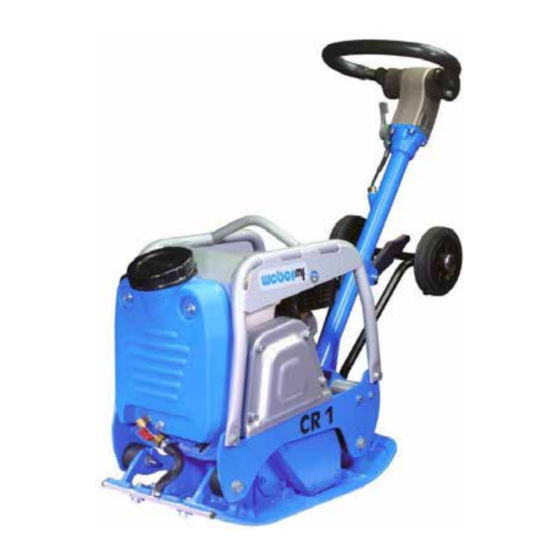

CR 1-II Hd
0115510
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CR 1-II Hd and is the answer not in the manual?

Questions and answers

Summary of Contents for Weber mt CR 1-II Hd

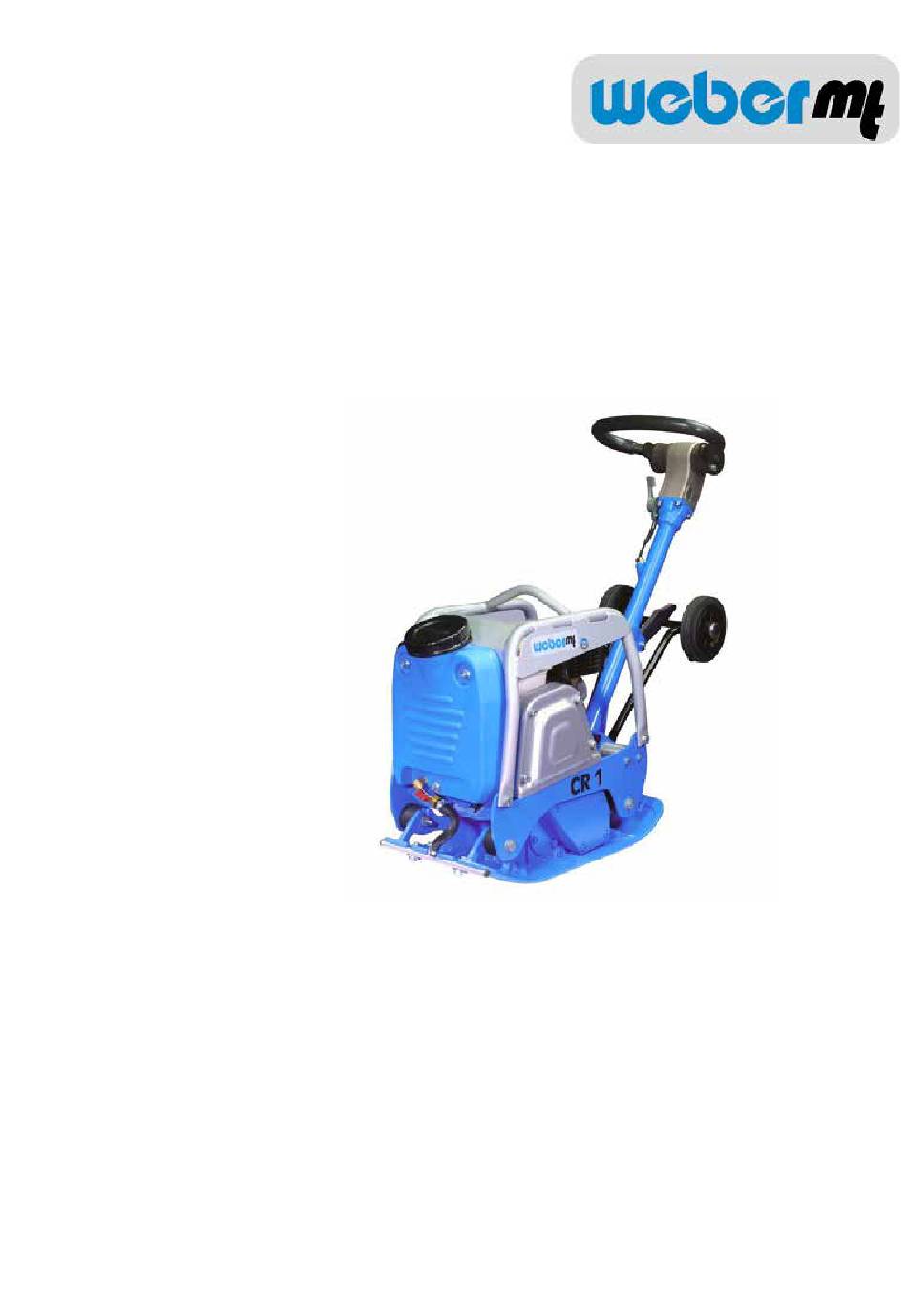

  • Page 1 Operating and Maintenance Manual CR 1-II Hd 0115510...
  • Page 3: Table Of Contents

    Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage...
  • Page 4: Introduction

    This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page.
  • Page 5: Safety Guidelines

    The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CR 1-II Hd soil compactor is designed exclusively for compacting – sand, – gravel, –...
  • Page 6 Exercise particular caution when operating the engine in the vicinity of people and livestock. Maintenance and repair work Only use original Weber MT spare parts to ensure reliable and safe operation for maintenance or repair work. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
  • Page 7 Inspection Compactors must be inspected in accordance with the corresponding implementation conditions and operating conditions, as needed; however an inspection to ensure operationally safe status must be performed by an expert at least once a year. The results of the inspection must be recorded in writing and must be stored at least until the next inspection.
  • Page 8: Graphic Presentation

    Graphic presentation Overall view CR 1-II Hd 1 Engine 2 Drive lever 3 Manual guidance rod 4 Lifting ring 5 Base plate 6 Protective frame 7 Exciter 8 Gas lever 9 Chassis (accessory) 10 Water tank (accessory) 11 Protective mat (no image; accessory...
  • Page 9: Device Description

    Device description The CR 1-II Hd soil compactor is used for road-building and landscaping compaction tasks. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter.
  • Page 10: Technical Data

    Technical data CR 1-II Hd Weight Operating weight CECE in kg (basic device) Dimensions Overall length (in mm) Overall width (in mm) 1024 Height with folded manual guidance rod (in mm) Base plate length (base in mm) 350x260 Pressure surface (in mm)
  • Page 11 1 Description 2 TYPE ..........................3 Serial number 4 Year of construction ..........................5 Mass 6 Rated power kW ..........................
  • Page 12: Activities Prior To Starting Work

    Activities prior to starting work Transport When transporting the soil compactor on a vehicle, secure it with suitable restraints. Arrest the manual guidance rod (1) with the holder (2). Fit the crane hook into the lifting ring (3) and lift the machine onto the desired means of transport.
  • Page 13 Check the engine oil level Pull the oil dipstick (1) out of the crankcase. The correct oil level is between the min. and max. marks. UPPER lEVEl Max. Stop operating the engine immediately when the oil level Min. reaches the min. mark and top off oil until it reaches the max.
  • Page 14: Starting

    Checking the hydraulic oil level Check the hydraulic oil level when the machine is at operating temperature. The manual guidance rod must be in the transport position – i.e. folded up. The correct oil level is reached when the oil is in the middle of the view glass. Installing the protective mat Fasten the protective mat (1) with holder, screws, spring-lock washers and nuts on the base plate front and rear.
  • Page 15: Compacting

    Slowly tighten the handle (6) of the reversing starter (7) until resistance is noticeable. Allow the handle (6) to glide back into the initial position, and then forcefully and completely pull it through with both hands. After the engine has warmed up, slide the choke lever to the right (open).
  • Page 16: Shutting Down

    Shutting down Bring the gas lever (1) into idle position. Close the fuel cock (2). Turn the short-circuit button (3) to the “0” – OFF position. Completely empty the water tank if there might be a frost. During breaks – even if they are short – the machine must be shut down.
  • Page 17: Maintenance Overview

    Maintenance overview Maintenance interval Maintenance point Maintenance activity After the first Engine – Change the engine oil 25 operating hours – Check valve play; adjust if necessary – Re-tighten all accessible threaded connections Every 8 operating Air filter – Clean air filter insert, hours / daily check for damage, replace if necessary...
  • Page 18: Maintenance Work

    Maintenance work Unscrew the oil dipstick (1). Remove the oil drain screw (2) and drain oil completely. Only drain engine oil when at operating temperature. Screw the oil drain screw back in and fill the engine with oil as specified. Use an oil dipstick to check the oil quantity.
  • Page 19 Changing the oil in the exciter Remove the oil drain screw (1) and drain oil. To fill – tilt the machine slightly and fill with fresh oil through the drain opening in accordance with the fill level table. Select collection vessels large enough to prevent oil from spilling onto the ground.
  • Page 20: Operating Fluids And Fill Levels

    Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CR 1-II Hd Quality Engine Engine oil SAE 10 W 40 0.6 l (–10 ~ + 50 °C) API – CD CE-CF-CG or SHPD or CCMC – D4 – D5 – PD2...
  • Page 21: Storage

    Actions to be taken before long-term storage (longer than 1 month) Entire soil compactor – Clean thoroughly – Check for leaks – If there are leaks, correct defects Fuel tank – Empty fuel and fill with clean fuel up to the lower edge of filler neck Engine –...
  • Page 24 facebook.com/WeberMT youtube.com/MyWeberMT Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 · 57334 Bad Laasphe · Germany Tlf. +49 2754 398 0 · Faks +49 2754 398 101 info@webermt.de · www.webermt.de 085101002-104 / CR 1-II Hd_2020_30_EN Original instructions...
