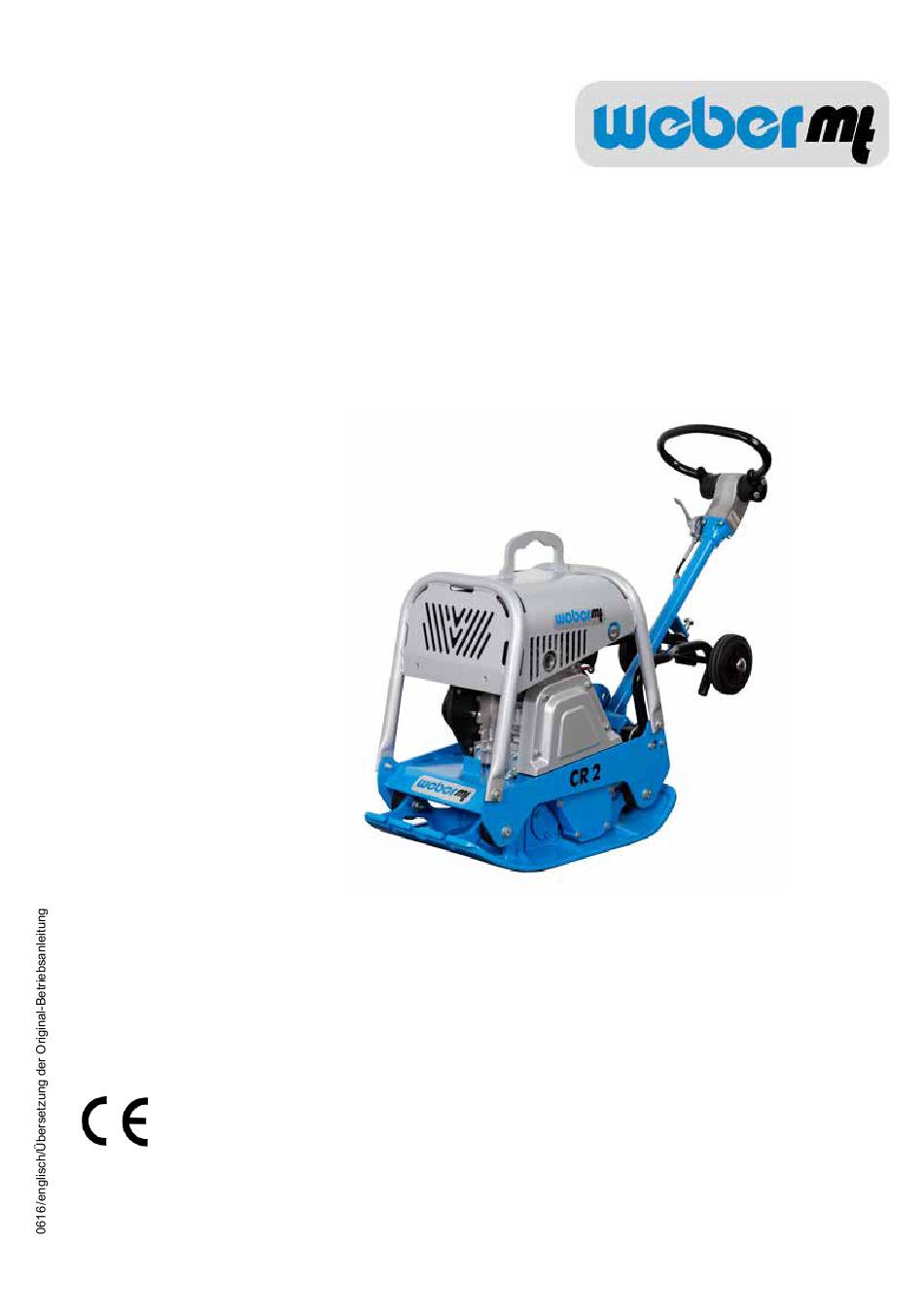

- Page 1 Operating and Maintenance Manual CR 2 R Robin-Subaru EX 17 Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: +49 (0) 27 54 / 398-0 Fax: +49 (0) 27 54 / 398-101 E-mail: info@webermt.de Web: www.webermt.de...
- Page 2 CR 2 R...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CR 2 R... -
Page 4: Introduction
You can obtain information on the assembled Honda gasoline engine at www.robin-europe.de. The valid conformity declaration is enclosed with every machine delivery. CR 2 R... -
Page 5: Safety Guidelines
The soil compactor should only be used if it is in a technically faultless condition, as intended, in a safety-conscious and hazard-conscious manner, in compliance with the instructions in the operating manual. Malfunctions that impair safety must be eliminated without delay. The CR 2 R soil compactor is designed exclusively for compacting – Sand – Gravel –... - Page 6 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CR 2 R...
- Page 7 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CR 2 R...
-
Page 8: Graphic Presentation

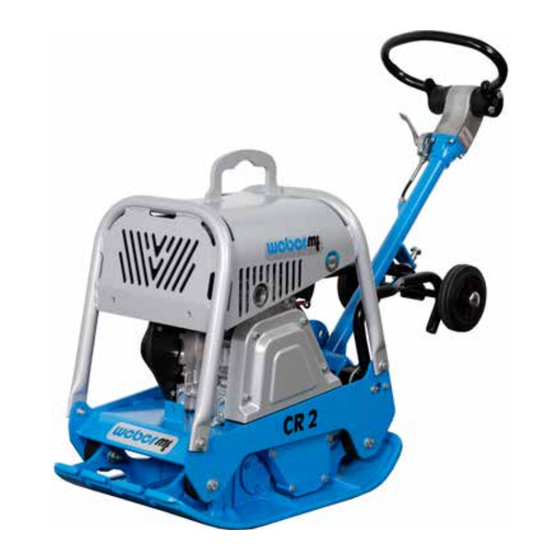

Graphic presentation Overall view CR 2 R 1 Engine 2 Drive lever 3 Manual guidance rod 4 Lifting ring 5 Base plate 6 Protective frame 7 Exciter 8 Gas lever 9 Hearing protection (sticker) 10 Undercarriage CR 2 R... -
Page 9: Device Description
Device description The CR 2 R compactor is used for road building and landscaping compaction tasks. Drive The unit is propelled by an air-cooled Robin-Subaru gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Robin-Subaru gasoline engine with the attached reversing starter. -
Page 10: Technical Data
Technical data CR 2 R Weight Operating weight CECE in kg (basic device) Dimensions 1079 Overall length (in mm) Overall width (in mm) 1079 Height with folded manual guidance rod (in mm) Base plate length (base in mm) 450 x 320... - Page 11 1 Description 2 TYPE ...................... 3 Serial number 4 Year of construction ...................... 5 Mass 6 Rated power kW ...................... CR 2 R...
-
Page 12: Activities Prior To Starting Work
300 kg. Do not step under suspended loads. Transport with hand truck Arrest the manual guidance rod (1) with the spring bolt (2). Unlock the retaining pin (1). Pivot the hand truck (1) under the base plate (2). CR 2 R... - Page 13 For work at the fuel system, have a suitable fire- extinguishing agent at the ready. Fire, naked light, and smoking is forbidden! CR 2 R...
-
Page 14: Starting
Allow the handle (1) to glide back into the initial position, and then forcefully and completely pull it through with both hands. After the engine has warmed up, slide the choke lever to the right (open). CR 2 R... -
Page 15: Compacting
Completely empty the water tank if there might be a frost. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded against through conspicuous measures. CR 2 R... -
Page 16: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CR 2 R... -
Page 17: Maintenance Work
Unscrew the air filter cover (1). Remove the air filter insert (1) from the air filter enclosure. Clean air filter insert as specified by the engine manufacturer if there is damage or if it is extremely dirty. CR 2 R... - Page 18 Checking the V-belt Remove the V-belt guard (1). Check the V-belt (1) for cracks, damaged flanks, and wear. If there is excessive wear – replace the V-belt as specified in the repair manual. CR 2 R...
-
Page 19: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CR 2 R Quality Engine Engine oil SAE 10 W 40 0.6 l (– 10 ~ + 50 °C) API – CD CE-CF-CG or SHPD or CCMC – D4 – D5 – PD2... - Page 20 All bare parts / gas lever / accelerator – Oil / grease control cable / fastening bolts If the machine is to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. CR 2 R...
- Page 21 CR 2 R...
- Page 22 CR 2 R...
- Page 23 South WEBER Maschinentechnik do Brasil Telephone +55 (0) 51 - 587 3044 America Rua João Werno Erhart, 4691 +55 (0) 51 - 587 2271 Bairro Rincão 93310-405 Novo Hamburgo / RS E-mail webermt@webermt.com.br Brazil CR 2 R...
- Page 24 > Vibrating tampers > Vibration rollers > Joint cutters > Internal vibrators and converters > Rollers Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad Laasphe-Rückershausen Telephone +49 (0) 27 54 / 398-0 – Fax +49 (0) 27 54 / 398-101 CR 2 R...
