Summary of Contents for Weber mt CF 1-II Hd

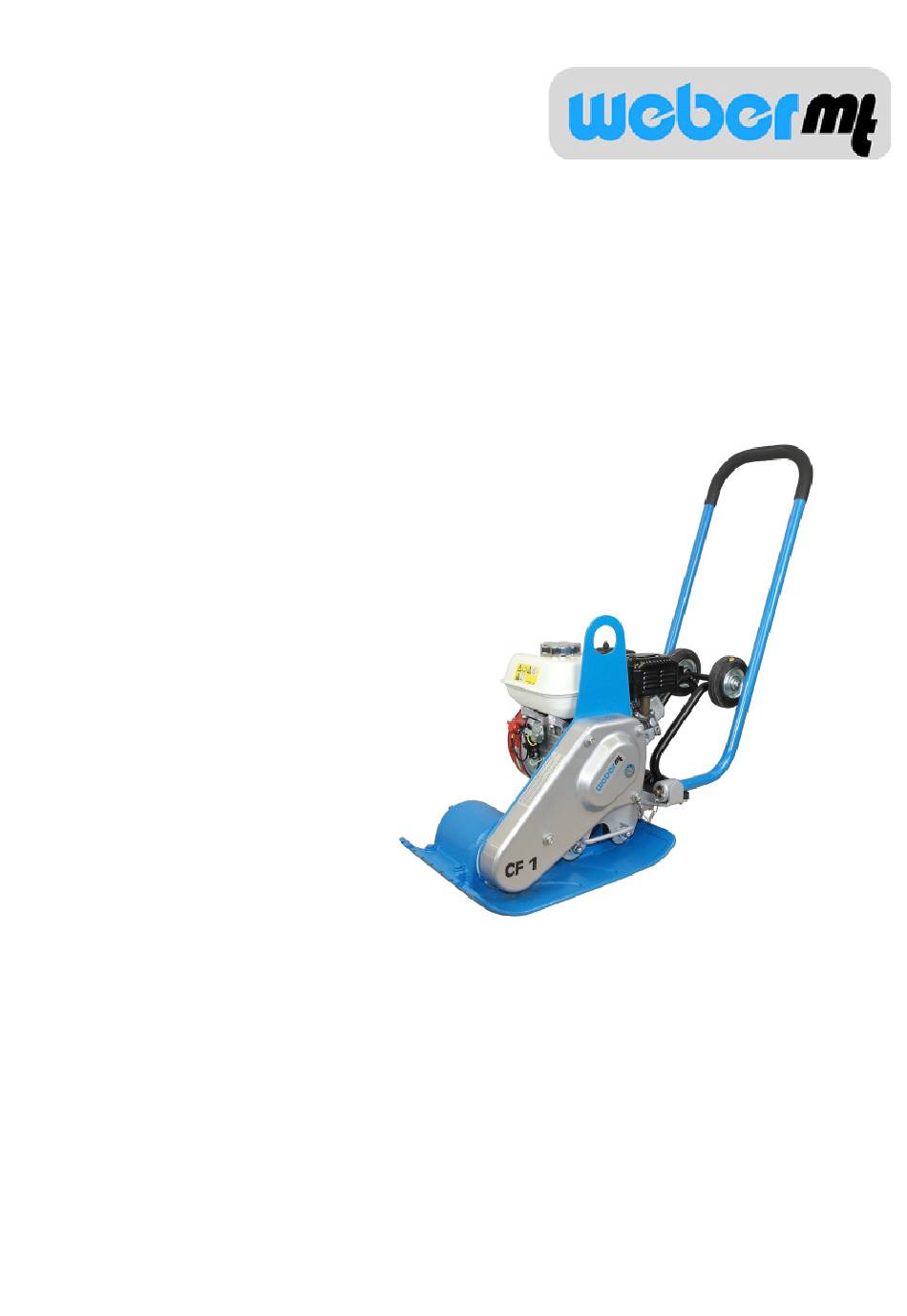

- Page 1 Operating and Maintenance Manual CF 1-II Hd 0100120 CF 1-II Hd...
- Page 2 CF 1-II Hd...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CF 1-II Hd... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
Malfunctions that impair safety must be eliminated without delay. The CF 1-II Hd soil compactor is designed exclusively for compacting – sand, – gravel, –... - Page 6 The use of respiratory equipment during operation of this gasoline-powered compactor without docu- mented evidence of conformity and without the necessary precautions is generally not permitted! – as CO will accumulate in the blood after repeated use – as CO filters have a short service life CF 1-II Hd...
- Page 7 Maintenance and repair work Only use original Weber MT spare parts to ensure reliable and safe operation for maintenance or repair work. Hydraulic hose lines must be checked at regular intervals in accordance with standard engineering practice, or they must be replaced at appropriate intervals, even if no signs of safety-relevant defects are present.
- Page 8 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CF 1-II Hd...
-
Page 9: Graphic Presentation

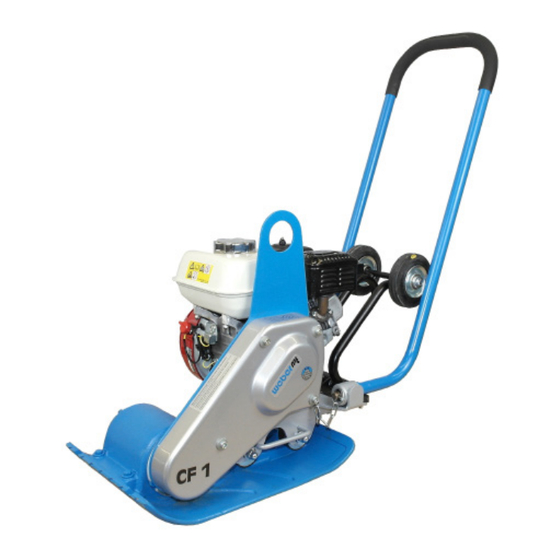

Graphic presentation Overall view – CF 1-II Hd 1 Engine 2 Lifting ring 3 Guide bar 4 Undercarriage (accessory) 5 Engine bracket 6 Base plate 7 Exciter 8 Hearing protection (sticker) 9 Protective mat (accessory) (not shown) CF 1-II Hd... -
Page 10: Device Description
Device description The CF 1-II Hd soil compactor is used for road-building and landscaping compaction tasks. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter. After starting, vibration is switched on via the centrifugal clutch attached to the engine. -
Page 11: Technical Data
Technical data CF 1-II Hd Weight Operating weight CECE in kg Dimensions Overall length (in mm) 1010 Overall width (in mm) Height (in mm) with the guide bar taken off Base plate length (base in mm) Pressure surface (in mm) 9450 mm²... - Page 12 1 Description 2 TYPE ..........................3 Serial number 4 Year of construction ..........................5 Mass 6 Rated power kW ..........................CF 1-II Hd...
-
Page 13: Activities Prior To Starting Work
To do this, remove the safety cotter (3) and pull the guide bar (2) out of the holder. Mounting the undercarriage Use the screws (5) to fasten the undercarriage mount (4) to the engine bracket (6). Fasten the undercarriage (7) inside the undercarriage mount (8). CF 1-II Hd... - Page 14 For work at the fuel system, have a suitable fire-extinguishing agent ready. Fire, naked light, and smoking is forbidden! Installing the protective mat Fasten holder, screws, spring-lock washers and nuts (4) on the base plate front. Ensure that the protective mat rests under the base plate. CF 1-II Hd...
-
Page 15: Starting
(open). Compacting Bring the gas lever (1) into full-throttle position. Control drive speed and direction of travel with the handle (2). Only guide the machine in the handle area of the guide bar. CF 1-II Hd... -
Page 16: Shutting Down
Turn the short-circuit button (3) to the “0” – OFF position. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safe- guarded via conspicuous measures. CF 1-II Hd... -
Page 17: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CF 1-II Hd... -
Page 18: Maintenance Work
Clean the air filter insert as specified by the engine manufacturer. Replace if there is damage or extreme contamination. Dispose of oils, greases, cloths soaked in oil, and replaced parts with oil on them in an environmentally friendly manner. CF 1-II Hd... - Page 19 Checking the V-belt Remove the V-belt guard (2). To do this unscrew the screws (3). Check the V-belt (4) for cracks, damaged flanks, and wear. If there is excessive wear replace the V-belt. CF 1-II Hd...
- Page 20 Take off the V-belt (5) and replace it with a new V-belt. Tension the V-belt by sliding back the engine bracket and tighten the nuts (3) of the rubber bonded metal buffers. Mount the V-belt guard (6). CF 1-II Hd...
-
Page 21: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity CF 1-II Hd Quality Engine Engine oil SAE 10 W 40 0.6 l (– 1 0 ~ + 5 0 °C) API – CD CE or SHPD or CCMC – D2 – D3 – PD1... -
Page 22: Storage
All bare parts / gas lever / accelerator – Oil / grease control cables / fastening bolts If the machine is going to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. CF 1-II Hd... -
Page 23: Contact Addresses
Notiz / note: CF 1-II Hd... - Page 24 Weber Maschinentechnik GmbH Im Boden 5-8, 10 · 57334 Bad Laasphe · Germany Phone +49 2754 398 0 · Fax +49 2754 398 101 info@webermt.de · www.webermt.de 085100003-104 / CF 1-II Hd_2020-03 Original instructions CF 1-II Hd...
