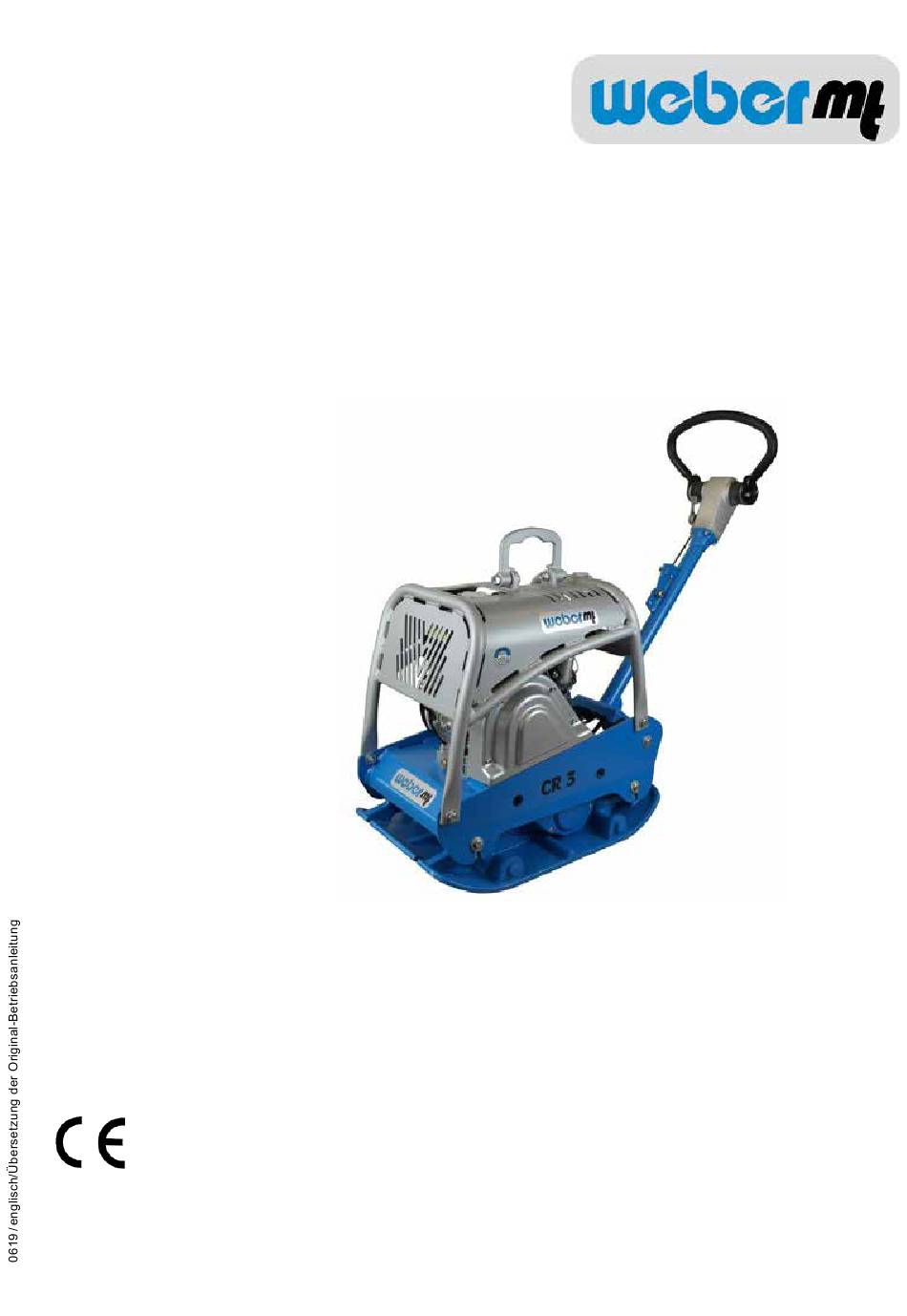

- Page 1 Operating and Maintenance Manual CR 3-II Hd Honda GX 270 0116144-00 Weber Maschinentechnik GmbH Im Boden 5 – 8, 10 D-57334 Bad Laasphe-Rückershausen / Germany Tel.: + 4 9 (0) 27 54 / 398 0 Fax: + 4 9 (0) 27 54 / 398 101 E-mail: info@webermt.de...
- Page 2 CR 3-II Hd...
-
Page 3: Table Of Contents
Table of contents Introduction Safety guidelines Graphic presentation Device description Technical data Activities prior to starting work Starting Compacting Shutting down Maintenance overview Maintenance work Operating fluids and fill levels Troubleshooting Storage Contact addresses CR 3-II Hd... -
Page 4: Introduction
This operating and maintenance manual must always be available at the implementation site of the soil compactor. If necessary, you can obtain additional information from your authorized WEBER MT dealer, or you can obtain information from one of the contact addresses on the last page. -
Page 5: Safety Guidelines
Malfunctions that impair safety must be eliminated without delay. The CR 3-II Hd soil compactor is designed exclusively for compacting – sand, – gravel, –... - Page 6 The use of respiratory equipment during operation of this gasoline-powered compactor without docu- mented evidence of conformity and without the necessary precautions is generally not permitted! – as CO will accumulate in the blood after repeated use – as CO filters have a short service life CR 3-II Hd...
- Page 7 Do not position yourself or work under suspended loads. If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. CR 3-II Hd...
- Page 8 Important information for operating and maintenance personnel is marked by pictograms. Warning against irritants or materials hazardous to health Warning against a hazardous place Warning against a suspended load Wear ear protection General regulation Environmental protection Hard hat Safety shoes Protective gloves CR 3-II Hd...
-
Page 9: Graphic Presentation
Graphic presentation Overall view CR 3-II Hd 1 Engine 2 Drive lever 3 Guide bar 4 Lifting ring 5 Base plate 6 Protective frame 7 Exciter 8 Gas lever 9 Attachment plates 10 Hearing protection (sticker) CR 3-II Hd... -
Page 10: Device Description

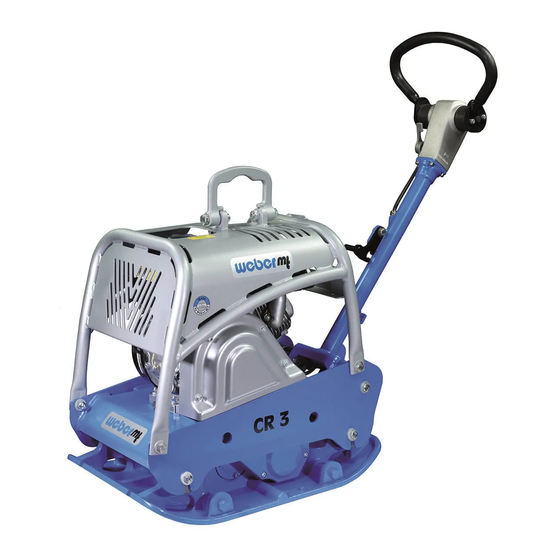

Device description The CR 3-II Hd soil compactor is used for road-building and landscaping compaction tasks. Drive The unit is powered by an air-cooled Honda gasoline engine. Force is transferred to the exciter mechanically via a V-belt. Operation Start the Honda gasoline engine with the attached reversing starter. -
Page 11: Technical Data
Technical data CR 3-II Hd Weight Operating weight CECE in kg (basic device) Dimensions 1350 Overall length (in mm) 500/600/700 Overall width / with attachment plates (in mm) 1060 Height with folded guide bar (in mm) Base plate length (base in mm) - Page 12 1 Description 2 TYPE .......................... 3 Serial number 4 Year of construction .......................... 5 Mass 6 Rated power kW .......................... CR 3-II Hd...
-
Page 13: Activities Prior To Starting Work
Arrest the guide bar (4) with the holder (5). Tilt the machine forward. Danger of tipping – pay attention to the machine weight. Pull the locking pin (6) out of the holder and remove the wheel (7). CR 3-II Hd... - Page 14 Bring the guide bar into movement position and arrest it with the movement safeguard (1). Tilt the machine to the rear and guide it via the guide bar. Pay attention to the tire pressure of the undercarriage. CR 3-II Hd...
- Page 15 For work at the fuel system, have a suitable fire-extin- guishing agent ready. Fire, naked light, and smoking is forbidden! CR 3-II Hd...
-
Page 16: Starting
Place the short-circuit button (3) in position 1. Slide the lever of the fuel cock (4) to the right. Slide the choke lever (5) to the left (close). After the engine has warmed up, slide the choke lever (5) to the right (open). CR 3-II Hd... -
Page 17: Compacting
Allow the engine to warm up for a few minutes. Compacting Bring the gas lever (3) into full-throttle position. Control drive speed and direction of travel with the handle (4). Only run machine within reach of the guide bar. CR 3-II Hd... -
Page 18: Shutting Down
Move the fuel cock (2) to the left (close). Place the short-circuit button (3) in position 0. During breaks – even if they are short – the machine must be shut down. Parked devices that represent an obstacle must be safeguarded via conspicuous measures. CR 3-II Hd... -
Page 19: Maintenance Overview
If lubricating oils and fuel come into contact with skin, they can cause skin cancer. Upon contact with the skin, clean affected skin with suitable cleaning agent without delay. If accessible during maintenance, check the condition and stability of all screws. CR 3-II Hd... -
Page 20: Maintenance Work
Cleaning / changing air filter cartridge Unscrew the air filter cover (2). Remove the air filter insert from the air filter enclosure. Clean air filter insert as specified by the engine manufacturer if there is damage or if it is extremely dirty. CR 3-II Hd... - Page 21 Checking the V-belt Remove the V-belt guard (2). Check the V-belt (3) for cracks, damaged flanks, and wear. If there is excessive wear – replace the V-belt as specified in the repair manual. CR 3-II Hd...
-
Page 22: Operating Fluids And Fill Levels
Operating fluids and fill levels Assembly Operating material Quantity Summer Winter CR 3-II Hd Quality Engine Engine oil SAE 10 W 40 0.9 l (– 1 0 ~ + 5 0 °C) API – CD CE-CF-CG or SHPD or CCMC – D4 – D5 – PD2... -
Page 23: Troubleshooting
Clean / change air filter cartridge No vibration / no Vibrator V-belt Change vibrator V-belt forward motion defective or insufficient forward motion Soil compactor Wrong hydraulic oil Check oil level does not switch level in the guide bar Correct oil level CR 3-II Hd... -
Page 24: Storage
– Store above freezing in a storage room – Connect to a permanent charger If the machine is going to be stored for longer than six months, then contact the Weber service organization to discuss additional measures. CR 3-II Hd... - Page 25 CR 3-II Hd...
- Page 26 CR 3-II Hd...
-
Page 27: Contact Addresses
278 01 Kralupy nad Vitavou E-mail info@webermt.cz in the WEBER MT Telephone +1(207) - 947 - 4990 USA and 4717 Broadmoor Ave. SE. Suite B +1(207) - 947 - 5452 Canada Grand Rapids, MI 49512 E-mail sales@webermt.us service@webermt.us CR 3-II Hd... - Page 28 > Joint cutters > Internal vibrators and converters Weber MASCHINENTECHNIK GmbH Im Boden 57334 Bad laasphe-Rückershausen Telephone + 4 9 (0) 27 54 / 398 0 – Fax + 4 9 (0) 27 54 / 398 101 CR 3-II Hd...
