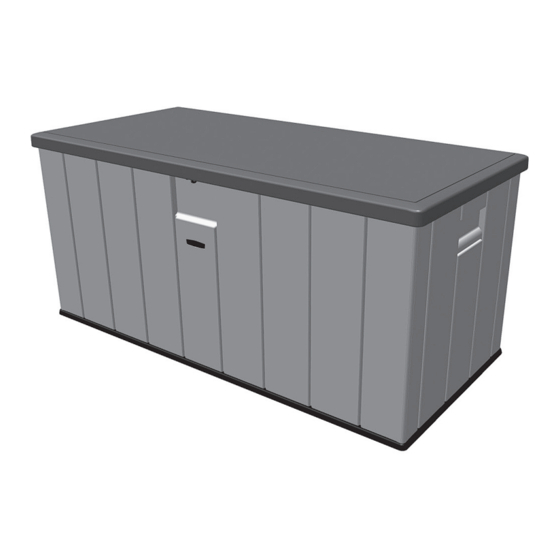

150-gallon (567.8 l) deck box
Hide thumbs Also See for 1031663:

Advertisement

Quick Links

Download this manual
150-GALLON (567.8 L)
DECK BOX
MODEL 60215
ITM./ART. 1031663
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
FOR OUTDOOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED
7/16" (11 mm)
QUESTIONS?
Call: 1-800-225-3865
(English)
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
7/16" (11 mm), 1/2" (13 mm)
1/2" (13 mm)
®
CONTACT LIFETIME
CUSTOMER SERVICE:
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For Customer Service in the United Kingdom and mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
MODEL# AND PRODUCT ID
Model Number: 60215
Product ID:
TABLE OF CONTENTS
Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Box Assembly.............................7
Lid Assembly............................13
Additional Warnings..................23
Cleaning & Care........................26
Registration...........................27
Warranty..............................28
(you will need both when contacting us)
