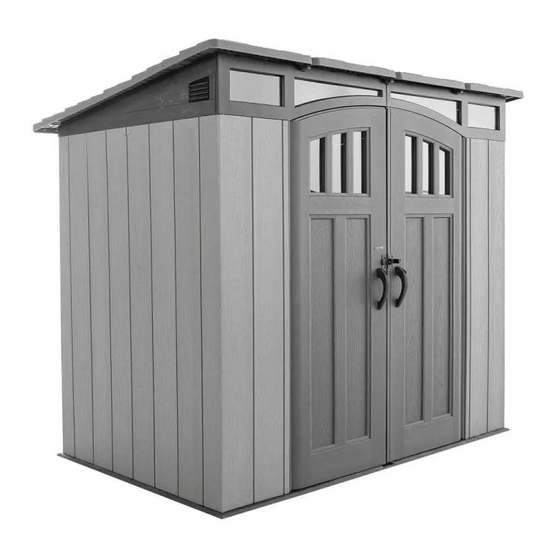

Outside shed
Hide thumbs

Advertisement

Quick Links

Download this manual
OUTSIDE
SHED
MODEL 60387
ITM./ART. 1572126
BEFORE ASSEMBLY:
• Assemble on a level platform
• At least 3 people recommended for setup
• Inspect all parts and hardware. Ensure all are
included using the Parts Identifier in the middle
of these instructions. The Parts Identifier , in
yellow, can be removed from the instructions for
quick reference
WATCH THE HOW-TO ON YOUTUBE
Scan the code, or visit go.lifetime.com/60387-fullassembly
®
YouTube
and the YouTube logo are trademarks of Google, LLC.
FOR OUTDOOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
TOOLS REQUIRED (NOT INCLUDED—UNLESS OTHERWISE INDICATED*)
QUESTIONS?
Call: 1-800-225-3865
7:00 am–5:00 pm (Monday–Friday) MST
and 9:00 am–1:00 pm Saturday MST
(English, French, Spanish)
3/8 in/po
(≈10 mm)
AIW (x1)*
CONTACT LIFETIME
®
Live Chat: www.lifetime.com/customerservice
(click on "LIVE CHAT" tab)
For customer service in the United Kingdom and mainland europe:
Email: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
ADC (x1)*
5/16 in/po (≈8 mm) Drill Bit
5/16 in/po (≈8 mm) Masonry Drill Bit
GHO 5/32 in/po (≈4 mm) Drill Bit (*)
CUSTOMER SERVICE:
TABLE OF CONTENTS
Icon Legend..................................................4
Warnings & Notices......................................5
Platform Construction...................................6
Door Assembly.............................................11
Floor Assembly............................................26
Wall Assembly.............................................29
Transom & Gable Assembly........................35
Shelving Installation...................................49
Parts Identifi er...........................................i–iv
Roof Assembly............................................52
Wall Hook Installation................................84
Door Alignment.........................................86
Shed Anchoring.........................................88
Cleaning & Care.......................................94
Registration............................................95
Warranty.................................................96
MODEL# AND PRODUCT ID
(both are needed when contacting us)
Model Number: 60387
Product ID:
