Lifetime 60340 Assembly Instructions Manual

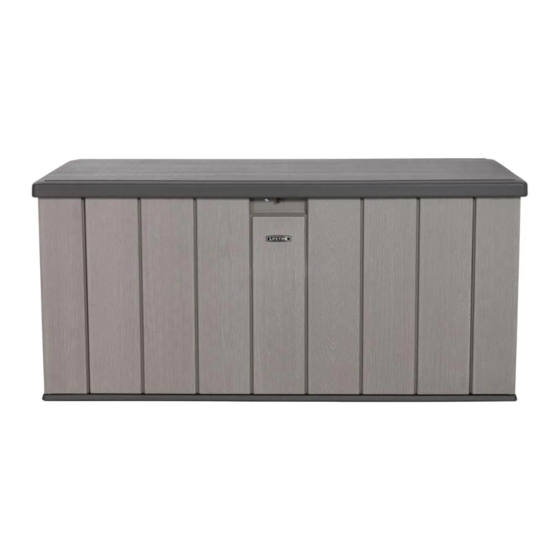

Deck box 150-gallon (567 l)
Hide thumbs
Table of Contents

Advertisement

Quick Links

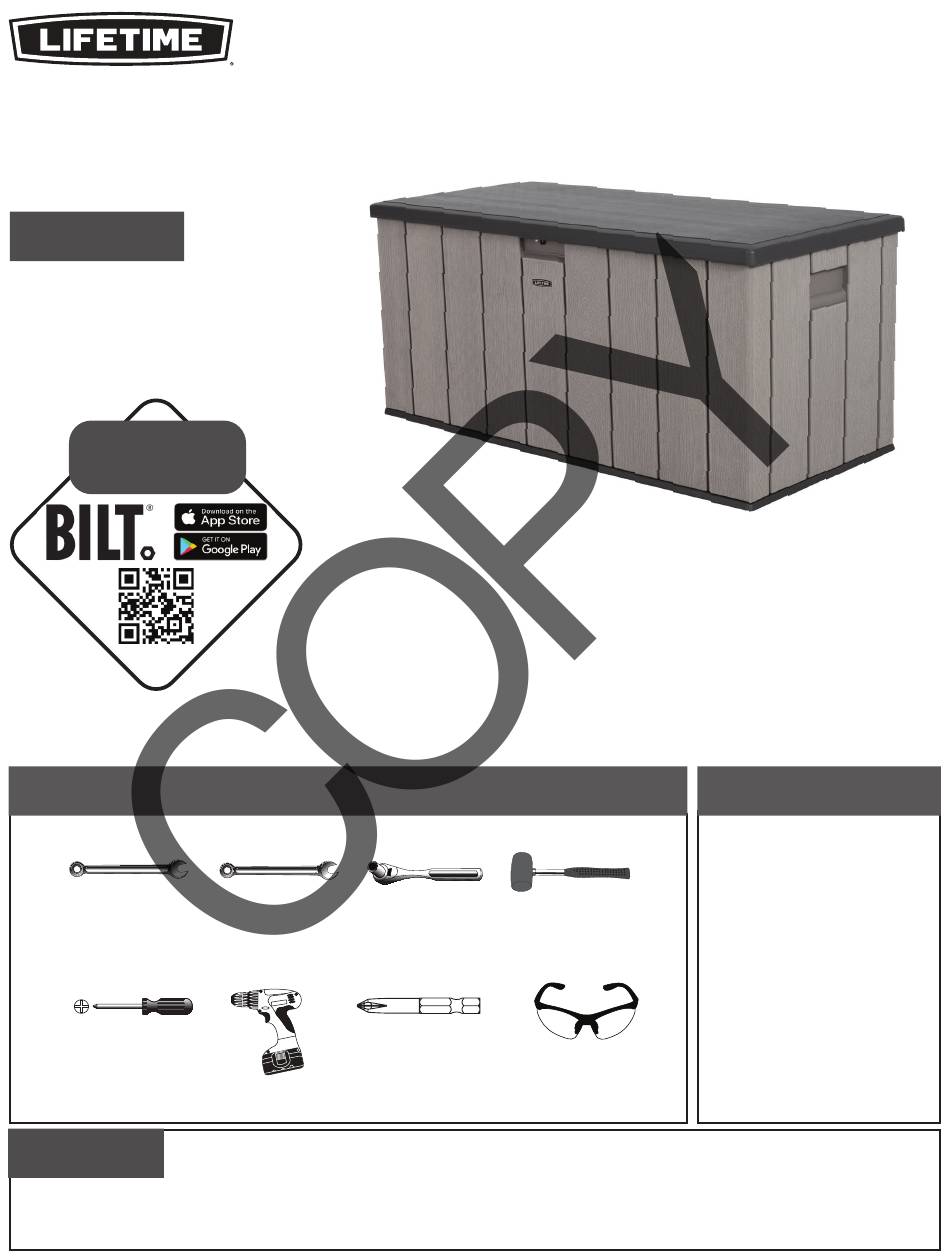

150-GALLON (567 L)
DECK BOX
MODEL 60340
ITM./ART. 1902297
BEFORE ASSEMBLY:
• Assemble on a level surface
• At least 2 people are recommended for setup
WATCH
3D ANIMATION
OF THE FULL ASSEMBLY
SCAN THE
CODE
FOR DOMESTIC USE ONLY!
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
TOOLS REQUIRED (NOT INCLUDED)
7/16" (≈11 mm)
QUESTIONS?
Call: 1-800-225-3865
7:00 am-5:00 pm (Monday-Friday) MST
and 9:00 am-1:00 pm Saturday MST
(English, French, Spanish)
OR SEARCH
1202446
1/2" (≈13 mm)
3/8" (≈10 mm), 7/16" (≈11 mm),
CONTACT LIFETIME
Live Chat: www.lifetime.com/customerservvice
(click on "LIVE CHAT" tab)
For Customer Service in the United Kingdom and mainland Europe:
E-mail: cs@lifetimeproducts.eu
ASSEMBLY INSTRUCTIONS
Pour le français, voir la page 2. Para el español, ver la página 3.
1/2" (≈13 mm)
CUSTOMER SERVICE:
®

TABLE OF CONTENTS

Icon Legend...............................4
Warnings & Notices.....................5
Parts Identifi er............................6
Box Assembly.............................7
Lid Assembly............................13
Additional Warnings..................23
Cleaning & Care........................26
Registration...........................27
Warranty..............................28
MODEL# AND PRODUCT ID
(both are needed when contacting us)
Model Number: 60340
Product ID:
