1. Place the dispenser in the desired location.
2. Run the beverage lines and water lines (make sure to
install the water connections to the proper inlets. Con-
nection "A" comes from the procon pump and is your
carbonated water supply and Connection "B" is your
plain water supply.
(Refer to plumbing diagrams.)
3. Install drain plumbing and insulate.
(See Drainage Options below)
4. Set flexible manifold for correct drink settings.
5. Turn water supply on to the dispenser. Water pres-
sure should be between 40 and 55 psi. If not in-be-

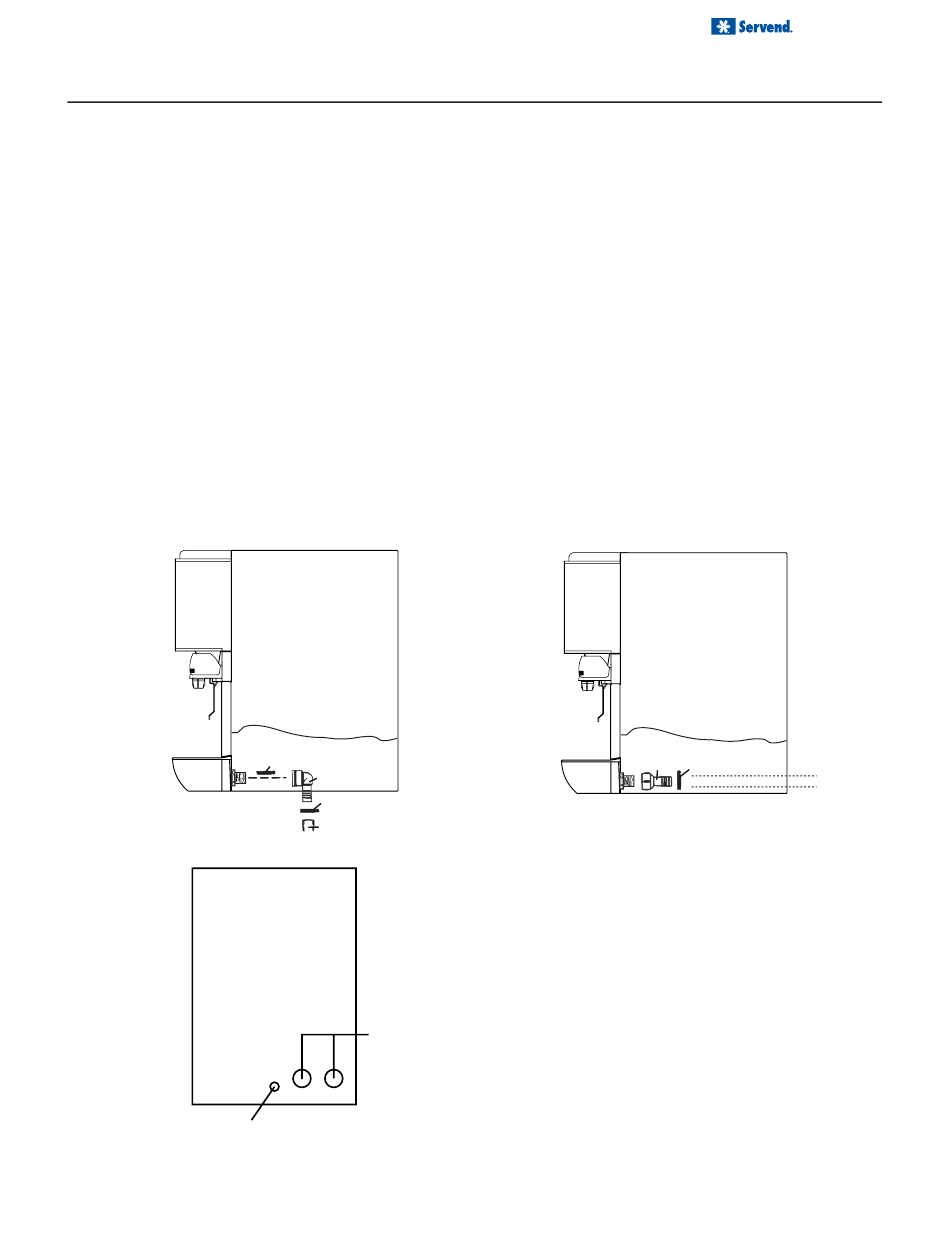

Option One
Drainage through the bottom of the unit:
Holes for
drain pan
drain
All manuals and user guides at all-guides.com
INSTALLATION

UNIT INSTALLATION

DRAINAGE OPTIONS

The drains for MD Series connects to the drain pan.
Radiator clamp
90 elbow fitting
Radiator clamp
Flexible tubing
Holes for
beverage
lines
tween those pressures proper measures must be
taken to regulate them to correct settings.
6. Turn CO
supply on to the dispenser. Each cold carb
2
pump deck is furnished with a fixed regulator set at
75 psi. Ambient units need to be set between 90 and
100 psi.
7. Fill bin with ice.
8. Connect power supply.
9. Brix beverage valves.
10. Meet all code requirements.
Option Two
Drainage through the back of the unit:
NOTE: The MDH 302 & 402 will have two drains
Straight fitting Radiator clamp
Installation and Service Manual
Flexible tubing
9
