Carb Tank Purge Tube Routing - Manitowoc Servend MD Series Installation & Service Manual

B
A
Drain Pan
To Drain
10
All manuals and user guides at all-guides.com
INSTALLATION

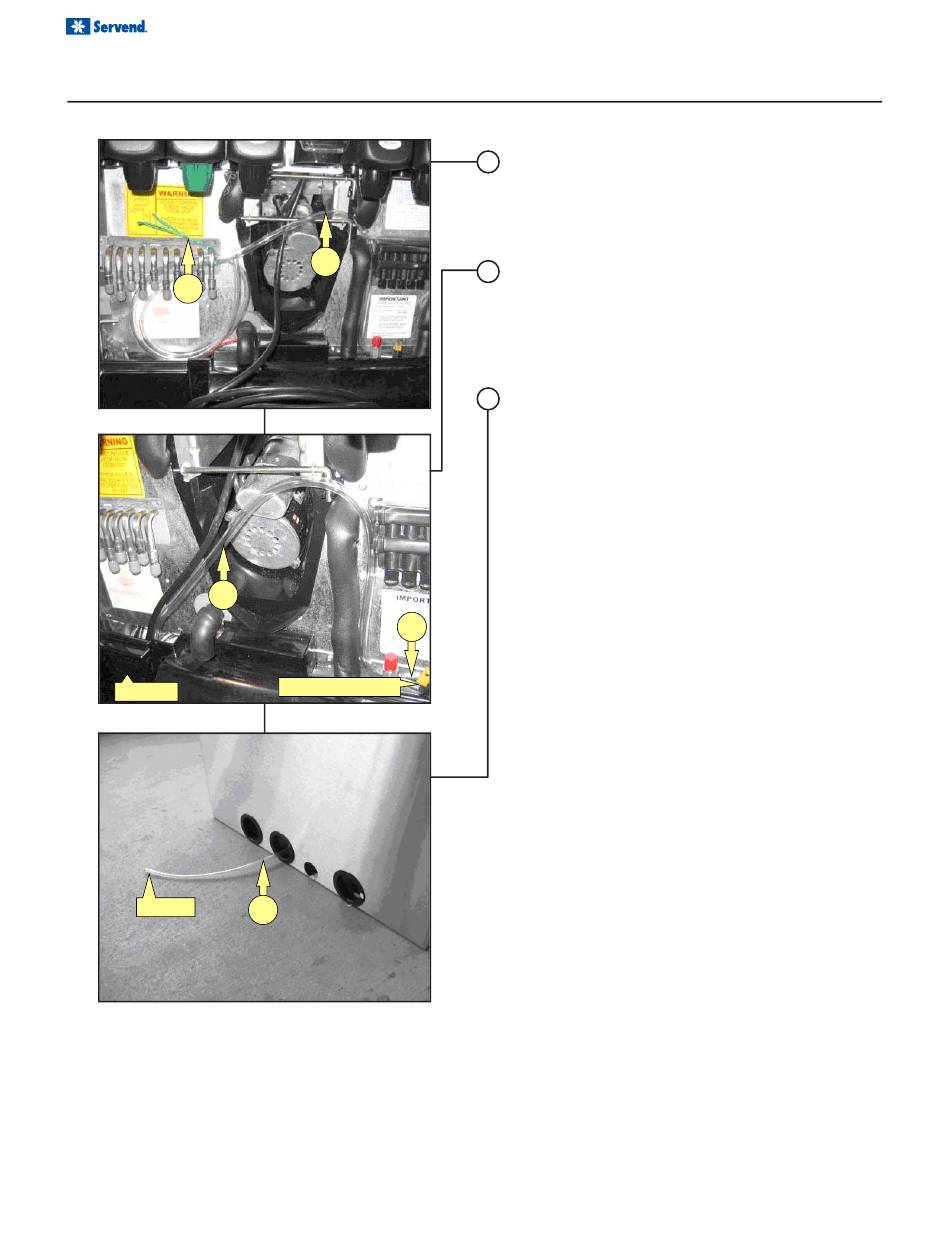

CARB TANK PURGE TUBE ROUTING

A
C
Pressure Relif Valve
A
1. During installation of unit the carbonator tank purge
tube (A) must be properly routed to a drain. Once
the splash panel has been removed from unit re-
move twist tie (B) that holds carbonator tank purge
tube.
2. Route carbonator tank purge tube (A) down front of
unit and behind drain pan. Be sure not to collapse or
kink carbonator tank purge tube during routing from
unit to drain. (C) Purge tube is connected to the pres-
sure relief valve on carbonator tank and must be
routed to a drain
3. The carbonator tank purge tube (A) can be routed
down through the counter top that unit has been in-
stalled on or out the rear of unit. Then install carbon-
ator tank purge tube to a drain. Follow all local and
national plumbing codes when routing carbonator
tank purge tube to the drain.
