Manitowoc Servend Flavor Magic Installation Instructions

If you have any questions concerning this bulletin, please contact Manitowoc Beverage Equipment's Technical Service Department at (800) 367-4233

Installation Instructions

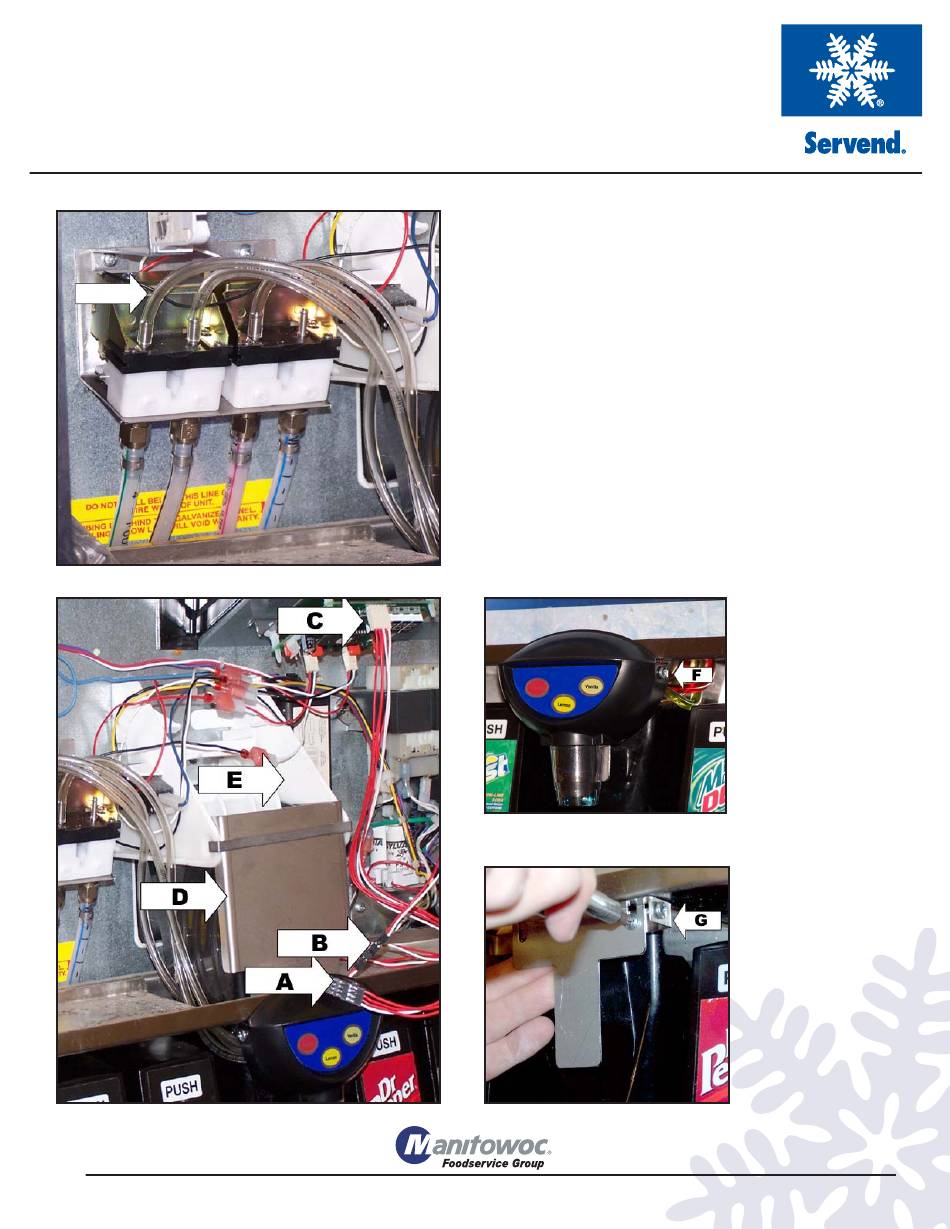

FIGURE 1

FIGURE 2

1. Disconnect power to ice drink dispenser.

2. Remove translite and lamps in work area.

3. Remove and discard vinyl lines from retainer in cover and

from valves. Clean up any syrup spills.

4. Disconnect ribbon connector on cover touchpad (A) and

LED from harness (B) connected to circuit board. Discon-

nect harness from circuit board and discard (C).

5. If chute bracket (D) present go to step 6. Loosen right chute

bracket (E) mounting screw and attach bracket chute (D).

CAUTION: DO NOT STRESS PLASTIC COMPONENTS

IN THIS AREA TO AVOID BREAKAGE.

6. Loosen screws (F) holding cover assembly to cover bracket

and cover bracket (G) to chute bracket (D). Remove and

discard cover assembly & cover bracket.

7. Tighten right rocking chute bracket screw (if applicable).

8. Route the four (4) vinyl lines extending from the back of the

cover pad assembly through the opening between the mer-

chandiser bottom and rocking chute.

FIGURE 3

FIGURE 4

5031703

09/29/05 REV 1
