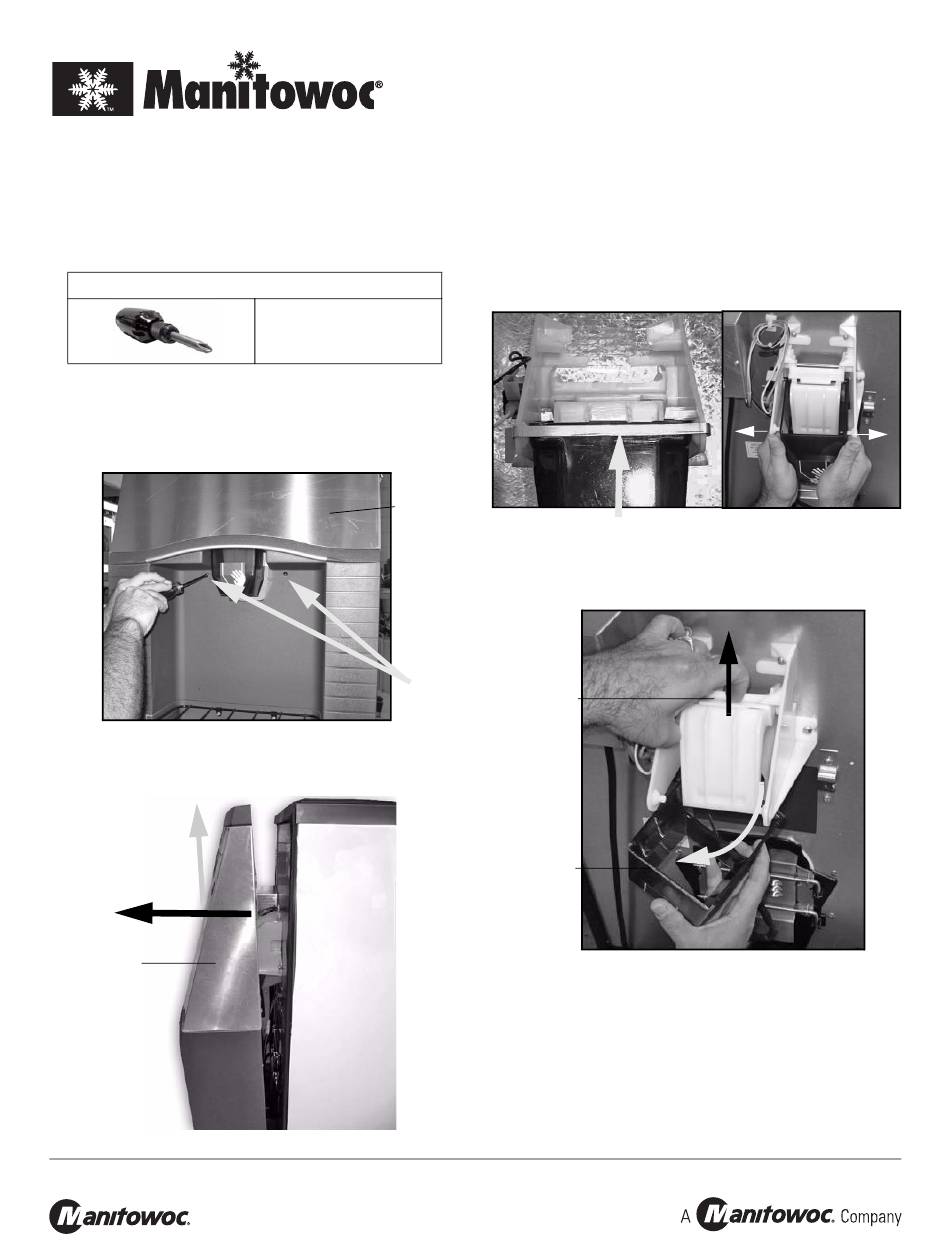

K00400 Dispense Chute Conversion Kit
Bucket Fill to Cup Fill
1. Prior to installation make sure you have the following tools:

TOOLS REQUIRED

2. Disconnect the power from the dispenser by unplugging
the power cord from the electrical outlet.
3. Using a phillips head screwdriver, remove the two screws
located on both sides of the ice chute.
4. With the screws out remove the front panel by
grasping both sides and pulling towards you until it is
clear of the ice chute, then pull the panel up and out.
Front Panel
Manitowoc Foodservice Group, 2110 S. 26th St., P.O. Box 1720, Manitowoc, WI 54221-1720, Tel: 920-682-0161, www.manitowocfsg.com
Phillips Head
Screwdriver
Front Panel
Screws
5. Remove the metal outer bracket clip, then use your
thumbs to spread the bracket and unhinge the ice
chute from the bracket pins.
Bracket Clip
6. Lift the door lock and rotate the ice chute clockwise
while pulling towards you in a slightly downward
motion to complete removal.
Door Lock
Ice Chute
Instructions
020002544
11/08
