20/1/23, 14:39

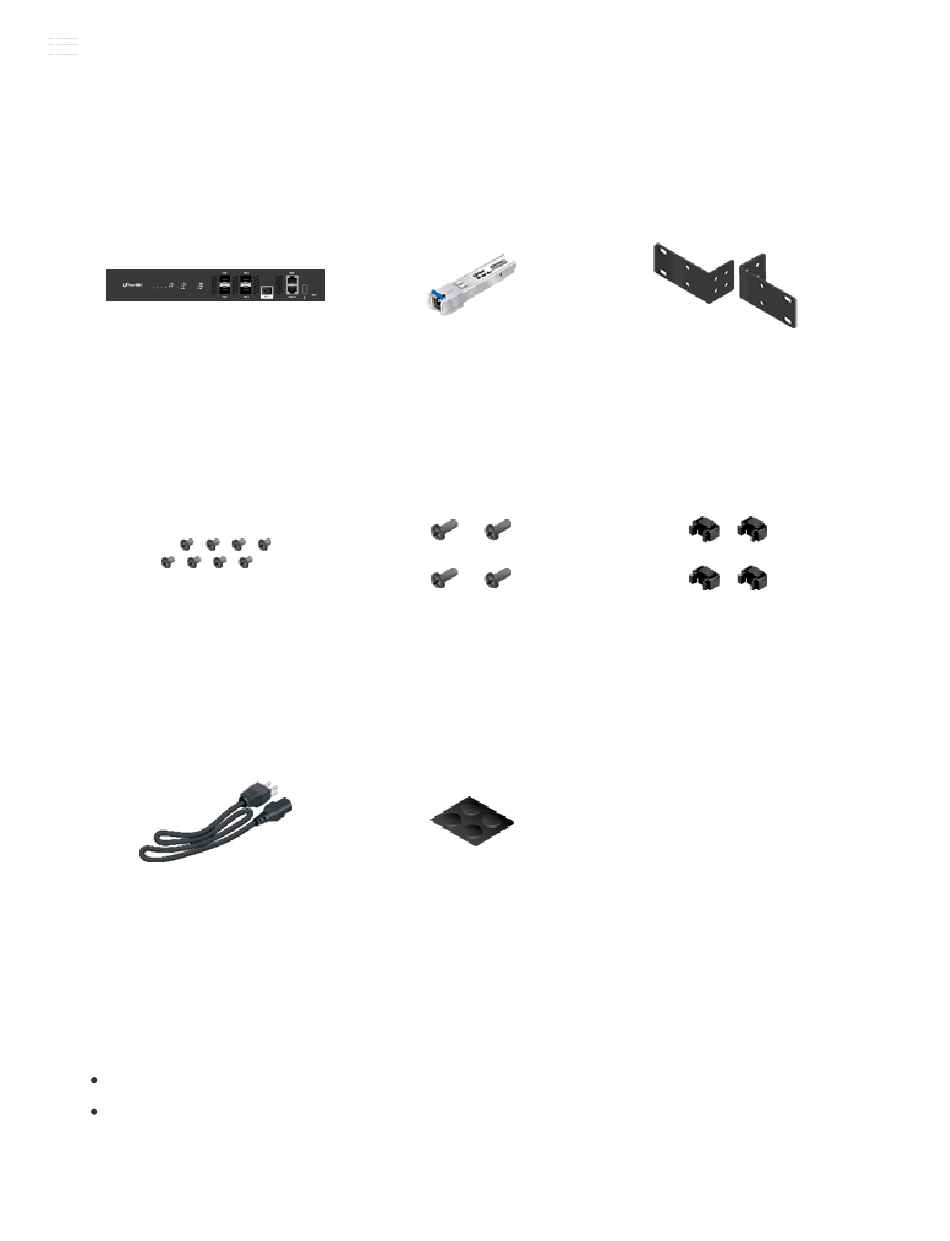

Package Contents

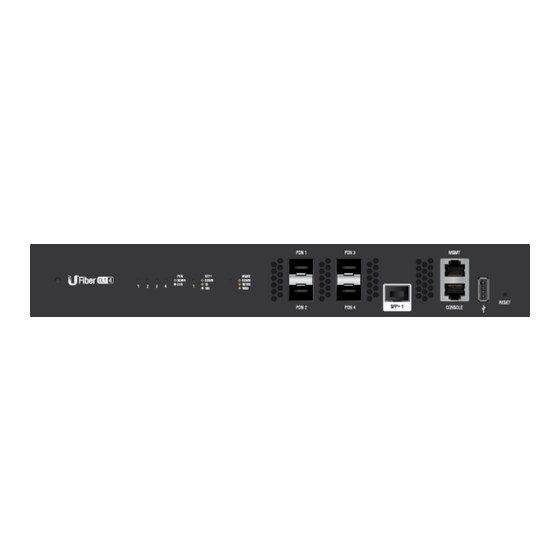

UFiber OLT-4
Bracket Screws (Qty. 8)
Power Cord
System Requirements
Linux, Mac OS X, or Microsoft Windows 7/8/10
Web Browser: Google Chrome (Other browsers may have limited functionality)
Installation Requirements
https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html
UF-OLT-4 Quick Start Guide
UF-OLT-4 Quick Start Guide
SC/UPC GPON SFP
Transceiver (UF‑GP‑B+)
Mounting Screws (Qty. 4)
Rubber Feet (Qty. 4)
Mounting Brackets (Qty. 2)
Cage Nuts (Qty. 4)
1/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uFiber OLT 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Ubiquiti uFiber OLT 4

Summary of Contents for Ubiquiti uFiber OLT 4

  • Page 1 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide Package Contents UFiber OLT-4 SC/UPC GPON SFP Mounting Brackets (Qty. 2) Transceiver (UF‑GP‑B+) Bracket Screws (Qty. 8) Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord Rubber Feet (Qty. 4) System Requirements Linux, Mac OS X, or Microsoft Windows 7/8/10 Web Browser: Google Chrome (Other browsers may have limited functionality)

  • Page 2: Before You Begin

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide Phillips screwdriver (for rack- or wall-mounting) UF-OLT-4 Quick Start Guide Standard-sized, 19" wide rack with a minimum of 1U height available (for rack- mounting) Compatible PON SFP and SFP+ transceivers with appropriate fiber optic cabling and accessories.
  • Page 3 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide No Link White/Flashing GPON Link/Activity SFP+ LED (Port 1) No Link Green/Flashing 1G Link/Activity White/Flashing 10G Link/Activity MGMT LED No Link Amber/Flashing 10/100 Link/Activity Green/Flashing 1000 Link/Activity GPON (Ports (PON 1- 4) Gigabit Passive Optical Network ports support up to 128 clients on each port.

  • Page 4: Hardware Installation

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide Data bits 8 UF-OLT-4 Quick Start Guide Parity NONE Stop bits 1 Flow control NONE USB Port Reserved for future use. Reset Button There are two methods to reset the device to factory defaults: Runtime reset (recommended) The device should be running after bootup is complete.
  • Page 5 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 5/15...
  • Page 6 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 6/15...
  • Page 7 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide Connecting a PON Module WARNING: Never look directly into the ends of fiber or modules. The emitted light could cause damage to the eye. WARNING: Until ready for use, keep modules and fiber patch cables covered using the included protective caps to ensure the connections stay clean.
  • Page 8 20/1/23, 14:39 UF-OLT-4 Quick Start Guide Note: One GPON SFP transceiver (model UF-GP-B+) is included. Use a UF-OLT-4 Quick Start Guide compatible PON SFP transceiver with the appropriate fiber optic cabling for each PON port. For information on compatible fiber transceivers, visit: ubnt.link/UFiber-OLT-Modules https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 8/15...
  • Page 9 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide Connecting SFP+ https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 9/15...

  • Page 10: Accessing The Configuration Interface

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide Accessing the Configuration Interface The following instructions apply to firmware version 4.1 and newer. https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 10/15...

  • Page 11: Specifications

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide Note: Previous firmware versions default to a static IP: 192.168.1.1. 1. Connect an Ethernet cable from the MGMT port on the device to a LAN segment that has an existing DHCP server. 2.

  • Page 12: Safety Notices

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 UF-OLT-4 Quick Start Guide With Mount Brackets 2.13 kg (4.70 lb) Max. Power Consumption 35W (Excluding SFP Transceivers) Power Method 110 - 240VAC Modular Port Power Supply AC/DC Internal 56W DC Supported Voltage Range 100 - 240VAC;...

  • Page 13: Electrical Safety Information

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. WARNING: CLASS 1 LASER PRODUCT - Do not look into the ends of the fiber optic cable or SFP modules while converters are powered.

  • Page 14: Declaration Of Conformity

    20/1/23, 14:39 UF-OLT-4 Quick Start Guide This device complies with Part 15 of the FCC Rules. Operation is subject to the following two UF-OLT-4 Quick Start Guide conditions. 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 15 20/1/23, 14:39 UF-OLT-4 Quick Start Guide UF-OLT-4 Quick Start Guide © 2023 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/UF-OLT-4/UF-OLT-4_EN.html 15/15...
