Translated from Spanish to English - www.onlinedoctranslator.com

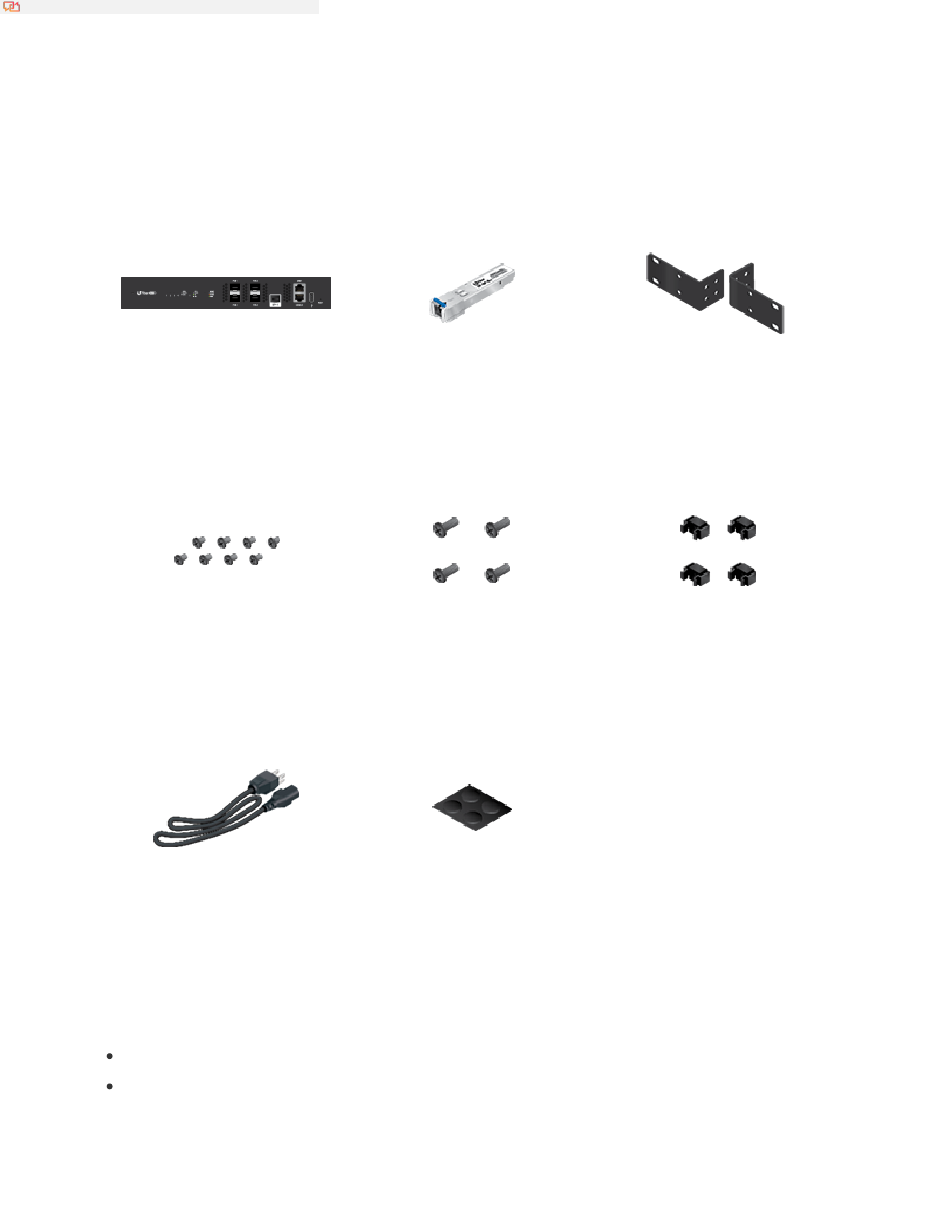

Package content
UFiber OLT-4
Screw clamps
(qty: 8)
Power cord
System Requirements
Linux, Mac OS X or Microsoft Windows 7/8/10
Web browser: Google Chrome (other browsers may have limited
functionality)
Installation requirements
UF-OLT-4 Quick Start Guide
SC/UPC GPON Transmitter Mounting Brackets (Qty: 2)
SFP (UF‑GP‑B+)
Clamping Screws (qty: 4) Cage Nuts (qty: 4)
Rubber base (qty: 4)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ubiquiti UFiber OLT-4
Summary of Contents for Ubiquiti UFiber OLT-4
- Page 1 Translated from Spanish to English - www.onlinedoctranslator.com UF-OLT-4 Quick Start Guide Package content SC/UPC GPON Transmitter Mounting Brackets (Qty: 2) UFiber OLT-4 SFP (UF‑GP‑B+) Screw clamps Clamping Screws (qty: 4) Cage Nuts (qty: 4) (qty: 8) Power cord Rubber base (qty: 4)
-
Page 2: Before Starting
Phillips screwdriver (for rack or wall mounting) Standard size, 19" wide rack with a minimum of 1U height (for rack mounting) Compatible PON SFP and SFP+ transmitters with fiber optic cabling and appropriate accessories. For more information on compatible fiber transmitters, visit: ubnt.link/UFiber-tho-Modules Before starting... - Page 3 White Ready to use PON LED indicator (ports 1 - 4) disabled Not connected White/flashing GPON link/activity SFP+ LED indicator (port 1) disabled Not connected Green/flashing 1G Link/Activity White/flashing 10G Link/Activity MGMT LED disabled Not connected Amber/flashing Link/Activity of 10/100 Green/flashing Link/Activity of 1000 GPON (PON ports 1 - 4)
- Page 4 (CLI). Use an RJ45-DB9 serial console cable, also known as a rollover cable, to connect the console port to your computer. (If your computer does not have a DB9 port, you will also need a DB9 adapter.) Then configure the following options as necessary: Baud rate 57600 Data bits 8 Parity NONE...
-
Page 5: Hardware Installation
Feeding Connect the included power cable to the power port. Hardware installation Mounting... - Page 6 EITHER...
- Page 8 Connecting a PON module WARNING:Never look directly at the ends of the fiber or modules. The light they emit can cause damage to your eyes. WARNING:Until ready to use, keep fiber patch cables and modules covered using the included protective caps to ensure connections remain clean.
- Page 9 PON SFP transmitter compatible with the appropriate fiber optic cabling for each PON port. For more information on compatible fiber transmitters, visit:ubnt.link/UFiber-tho-Modules...
-
Page 10: Sfp+ Connection
SFP+ connection... - Page 11 Access to the configuration interface The following instructions apply to firmware version 4.1 and later. Note:By default, older firmware versions have an IP...
-
Page 12: Specifications
static: 192.168.1.1. 1. Connect an Ethernet cable from the MGMT port of the device to a LAN segment that already has a DHCP server. 2. To check the device's IP address, use one of the following methods: Configure the DHCP server to provide a specific IP address to the device based on its MAC address (on the label). -
Page 13: Safety Instructions
UF-OLT-4 Weight 1.93kg (4.25lb) Without mounting brackets 2.13kg (4.70lb) With mounting brackets 35W (not including SFP transmitters) Maximum power consumption Feeding method Modular port 110 - 240 V AC Power supply Internal AC/DC 56W DC Supported voltage range 100 - 240 V AC 16-25 V DC Restore Button Processor... -
Page 14: Electrical Safety Information
WARNING:To reduce the risk of fire or electric shock, do not expose the product to rain or moisture. WARNING:Do not use this product in a place where it may be submerged in water. WARNING:Avoid using this product during a thunderstorm. There is a remote possibility of electric shock caused by lightning. -
Page 15: Declaration Of Conformity
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions. 1. This device may not cause harmful interference, and 2. - Page 16 © 2022 Ubiquiti Inc. All rights reserved.
