Tylo SENSE COMBI ELITE Installation & User Manual
Tylo SENSE COMBI ELITE Installation & User Manual

Tylo SENSE COMBI ELITE Installation & User Manual

Hide thumbs Also See for SENSE COMBI ELITE:

Advertisement

Quick Links

Connect Sensor cable (round) to
jack 6 on circuit board.
16
15
14
10
RJ10 4P4C
3 x 14 AWG
RJ10 4P4C
RJ10 4P4C
max 75 feet - Combi Elite
*

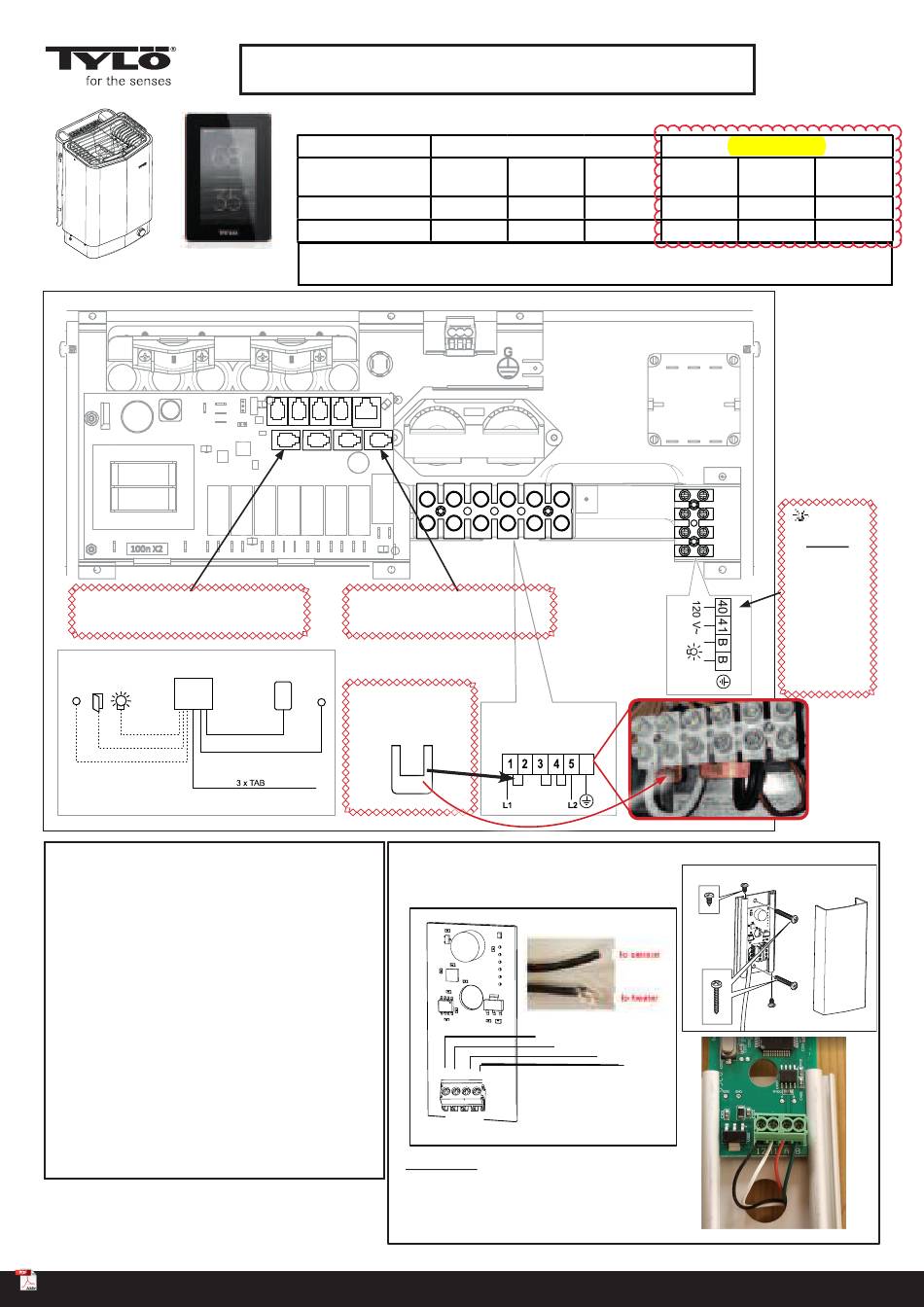

Figure 19: Wiring Diagram
Use List Below to Identify Components in Figure 19:
Wiring Diagram (Above)
1.
N/A
2.
External Switch (Optional) (jack # 2)
3.
Door jumper pre-installed (jack # 3)
4.
N/A
5.
N/A
6.
Sensor (combination humidity and temperature,
jack # 6)
7.
N/A
8.
N/A
9.
Elite Control
10. Heater
11. Terminal for connection of electrical cable
12. Control panel (jack # 9)
13. Sensor - Combi Elite (jack # 6)
14. Light/terminal for connection of light
15. Door Switch is not required for N. America
16. External On/Off Switch (option)
SENSE COMBI ELITE Quick-Start Tip Sheet
This page to be used in conjuction with Tylo Full Manual included
CONNECTION/WIRING DIAGRAM
Model
Sense Combi-U 7
Sense Combi-U 8
Note: Heating elements do not change for voltage changes. The heater output will change
based on the voltage applied to heater. Most North American homes are 240v.
1 2
3 4
5
6
7
8
9
Connect Control cable (flat) to
jack 9 on circuit board.
13
Confirm
12
three copper
conectors
* **
installed
RJ10 4P4C
208 V 1 Phase
Amperage
Output
Amps
kW
26
5.3
30
6.3
11
5.3-8.3 kW
208/240 V~
x3
x 3
Sensor Installation Tip
Humidity
Black
White
A B
12
11
12 11 A B
Combi Elite
humidity- and temperature sensor
R=Red, G=Green, W=White, B=Black
240 V 1 Phase
Wire Size
Amps/
Breaker
AWG
10
30/40
35/50
8
14
G
Red
Green
2900 5264
2020-05-XX
Output
Wire Size
kW
AWG
7.0
8
8.3
8
14 AWG
Max. 6 Amp.
In order for
control to
operate light,
a separate
120V supply
must be
provided and
connected to
heater
Combi Elite Sensor
