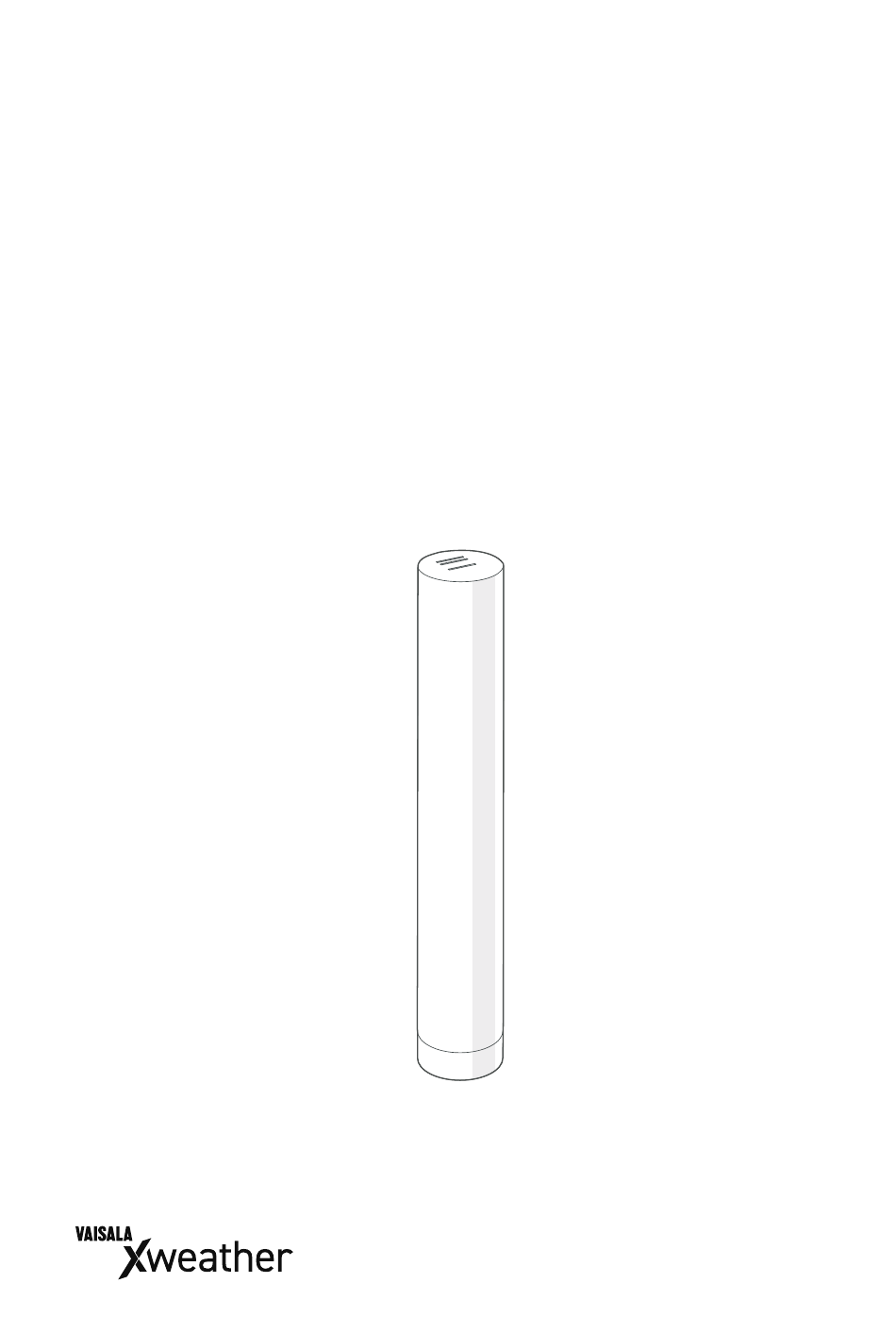

- Page 1 M212671EN-C Setup and Removal Guide DRS611 Vaisala GroundCast...
- Page 2 This product contains software developed disclosed to a third party without prior by Vaisala or third parties. Use of the written permission of the copyright holder. software is governed by license terms and Translated documents and translated...

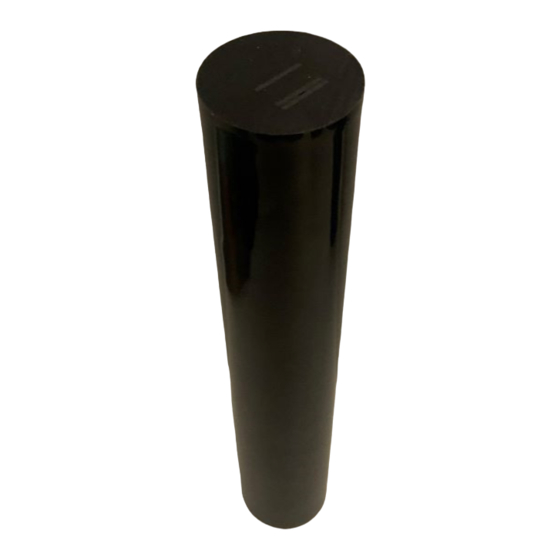

- Page 3 Vaisala GroundCast Vaisala GroundCast is an embedded sensor that measures the road temperature, chemical amount, and surface state (dry or not dry). The road temperature is measured at 0 mm (0 in), as well as at 60 mm (2.4 in) and 300 mm (11.8 in) below the road surface.
-
Page 4: Setting Up Device
To set up the device: 1. Prepare the device before going to the installation location. 2. Activate the device using the Vaisala Cast ™ Connect mobile application. 3. Drill a hole for the device. 4. Install the device at the installation location. - Page 5 1. Preparing device Prepare the device before going to the installation location. 1. Remove the foam cap 2. Download the Vaisala 3. Open the mobile and the SIM card cover. Cast Connect mobile application and select application from Google Connect to device.
-
Page 6: Activating Device
2. Activating device Go to the installation location to perform the device activation. 1. Open the mobile 2. Select Start activation. 3. Complete the activation. application and select Follow the onscreen The device is sending Connect to device. instructions. measurements to the Hold the phone close to the cloud. -
Page 7: Installing Device
4. Installing device Installation of 1 device requires 1 - 2 sealant packs (1 pack has 450 ml). 5 min 1. Clean the device holder 2. Prepare the sealant. 3. Apply sealant to the top of possible sealant residue Apply a little bit of sealant of the SIM card cover, filling from previous installations. -
Page 8: Completing Installation
5. Completing installation 1 ... 3 mm 0.04 ... 0.12 in 1. When the sealant is set, 2. The device surface must The installation is ready. remove the holder, the be 1 ... 3 mm The device sends data extra sleeve, and the (0.04 ... - Page 9 Removing and recycling device The device must be removed after it is no longer operational, the battery stops working, or when a replacement device is installed. Recycle the device according to local hazardous waste regulations. Needed equipment • GroundCast removal tool •...
- Page 10 2. Recycling These recycling instructions guide you on the end-of-life treatment of this Vaisala product. As waste regulations and infrastructure vary in each country, these instructions only indicate the different components to be separated and common ways to handle them. Always follow local requirements when disposing of the product.
- Page 11 Vaisala GroundCast is designed to function in rough conditions below the ground level. Due to the waterproof design of the device, the Li-SOCl batteries are not easily removable. Therefore, the device shall be recycled as hazardous battery waste in one piece.
- Page 12 Failure to comply with these precautions or with specific warnings elsewhere in these instructions violates safety standards of design, manufacture, and intended use of the product. Vaisala assumes no liability for the customer's failure to comply with these requirements. WARNING! Assess the risks from the installation work.
