Operation
2.1
Controls
Figure 2

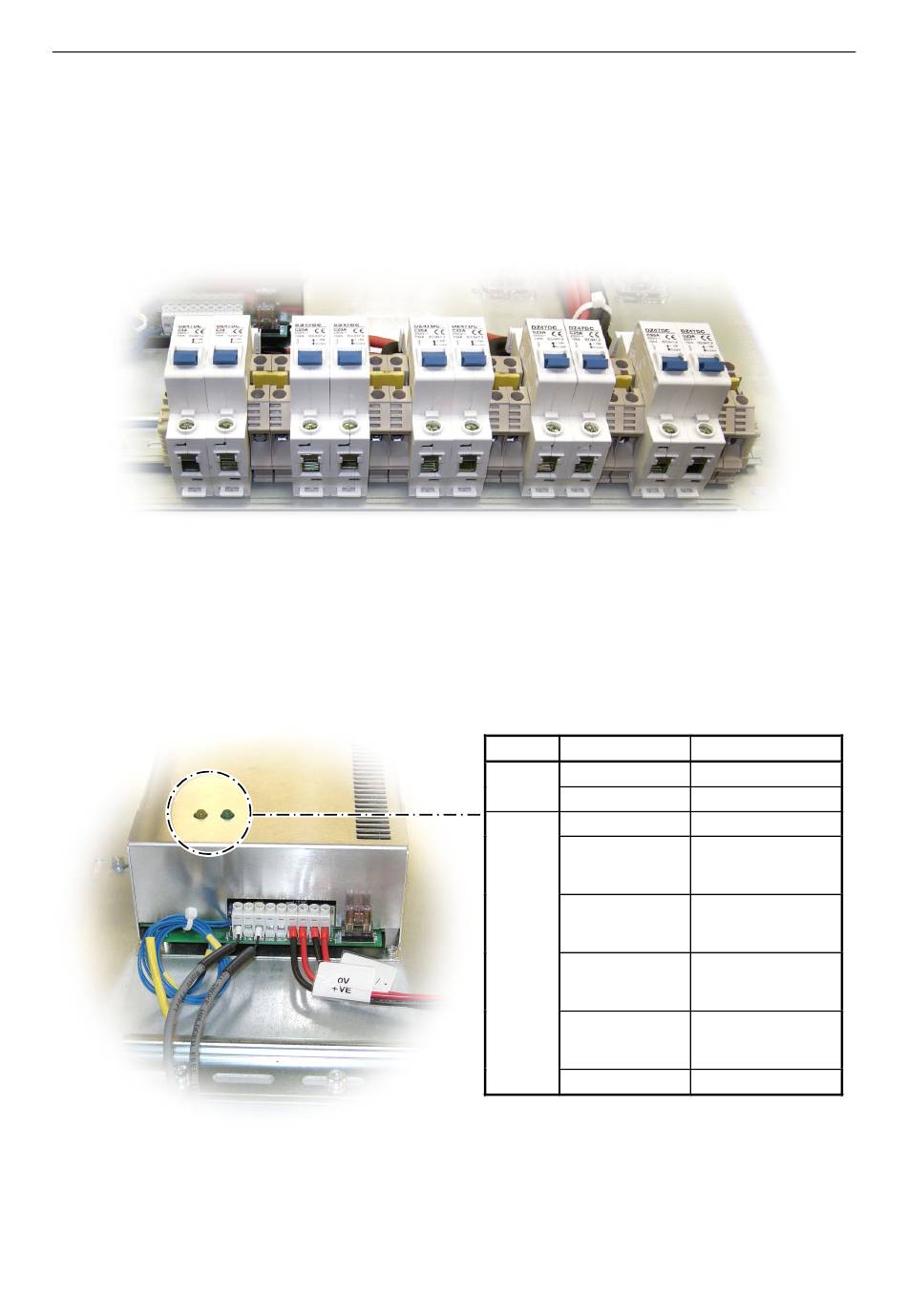

BDIST Mini Circuit Breakers
BDIST: The battery outputs are connected/disconnected to/from the systems by Miniature Circuit Breakers
(MCB) provided with the BDIST at the rear of the charger tray.
2.2
Indicators
Figure 3
Charger indicators
(REAR OF RACK)
BPC65 / BDIST / MDIST – Product Manual
(REAR OF RACK)
CHARGER
U-0456-0143.doc – Issue: 03 complete, approved
BDIST
LED
Status
ON
Power
(green)
OFF
OFF
Single flash
repeated at
regular interval
Two flashes
repeated at
regular interval
Fault
(yellow)
Three flashes
repeated at
regular interval
Four flashes
repeated at
regular interval
Continuously ON
Page 5 of 32
Indication
Mains is present
Mains not present
No fault
Mains or charger fail
Incorrect output
voltage
High battery
resistance fault
Battery missing or
reverse battery
Microprocessor fail
